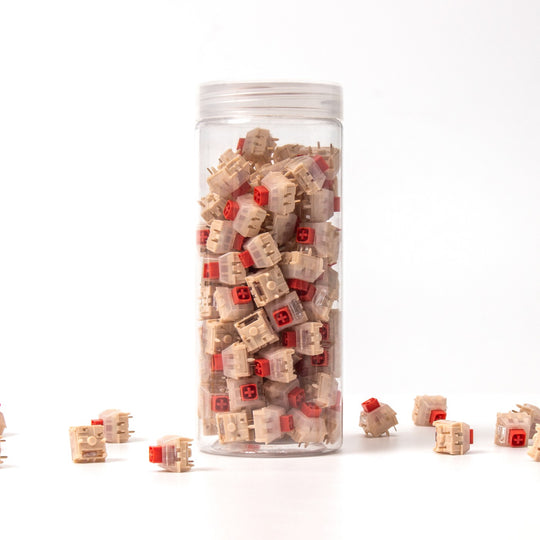

Kailh Red Bean Pudding Box Switch
Kailh Red Bean Pudding Box Switch - Red Bean Pudding / 110 Switches is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Linear Typing Feel
The Kailh Red Bean Pudding Switch is a box switch with a comfortable linear typing feeling. This switch is built with a red stem with a translucent cover and POM material base. Its whole appearance looks like a pudding, but with a touch of feeling of red bean, and is very fresh.
POM Material Stem And Base
The Red Bean switch is equipped with a stem and base made of self-lubricating POM material and delivers a smooth feeling.
Short Spring. Stronger Rebound
The Jellyfish Switches come in linear and clicky options to meet the need of beginners and switch enthusiasts.
90% Light Transmittance
The switch has a light guide post within the switch housing to let more RGB light shine through and it is said that it can be reach 90% light transmittance.
Dustproof & Waterproof "Box" Design
Its box design has dustproof and waterproof features, increasing the switch’s lifespan and longevity.
Product Structure
Feature And Specs
Type | Linear |
---|---|
Operation Force | 45±10 gf |
Pre-travel | 1.8±0.4 mm |
Return Force | ≥35 gf |
Total Travel | 3.6±0.3 mm |
Sound Level | Low |
Operation Life | Up to 80M cycles |
Suitable For | Gaming/office |
Product Name | Red Bean Pudding Switch |
---|---|
Stem | POM |
Top Housing | PC |
Bottom Housing | POM |
Contact | Composite gold |
Spring | Spring steel |
Protecting Cover | Nylon |
Slider | POM |
Light Guide Post | PC |
Pins | 5-Pin |
Factory Pre-lubed | No |
SMD LED Support | Yes |
Compatible Keyboards
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series, V series or Q series Keychron keyboards.
