Keychron Q11 QMK Custom Mechanical Keyboard ISO Layout Collection

SKU: Q11-M1-DE
£181.00

Type
Layout Version
Switches

The fully assembled version includes:
  • The keyboard PCB and case (the plate is integrated with the case).
  • Backlight shine-through OSA ABS keycaps (including Mac & Windows keycaps).
  • Keychron K Pro switches.

No discount codes can be used for Q11.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron Q11
ISO Layout Versions

Coming in a 75% layout and a split design, the Q11 helps you to explore the angles and positions that fit you the best. With its full metal CNC machined body, QMK/VIA support, and unique design, the Q11 is ideal for fulfilling your typing needs!

Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

Split Design

With a split layout, the Q11 allows you to position each side where you feel most sensible and ergonomic. You can also use it as a non-split keyboard by linking the two halves with a bridge cable.

Keychron Q11 ISO 75% Layout Custom Mechanical Keyboard
Left half of Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

Use the left half solely.

Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

Use the right half solely.

Features of Keychron Q11 ISO Layout Custom Mechanical Keyboard
Customize Your Q11

Choose the keycaps, switches, and more accessories for your Q11 ISO layout keyboard

Q11 ISO Layout Version

These versions include the UK, German, Swiss, Nordic, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

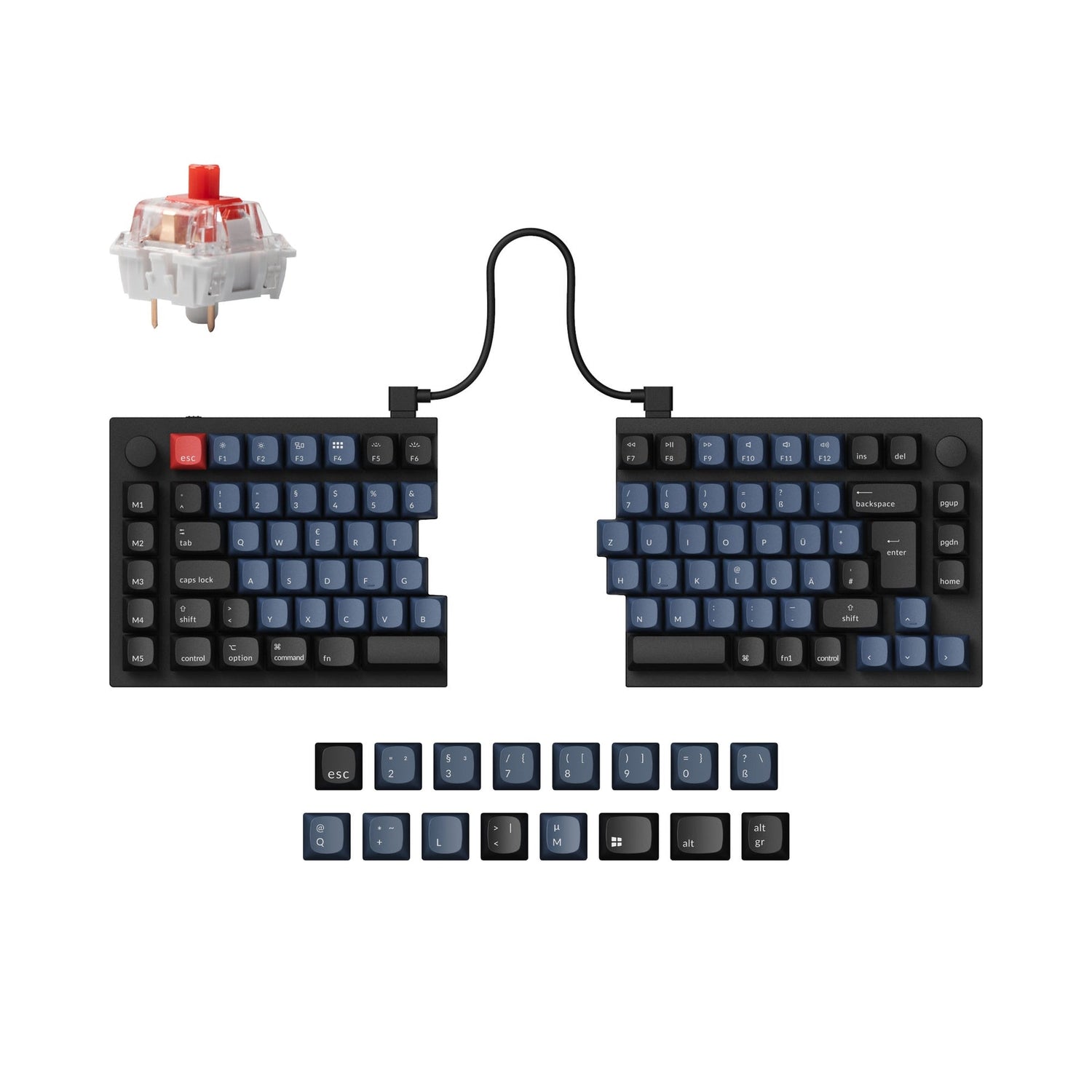

🇩🇪 DE-ISO Layout

Keychron Q11 German DE ISO Layout Custom Mechanical Keyboard

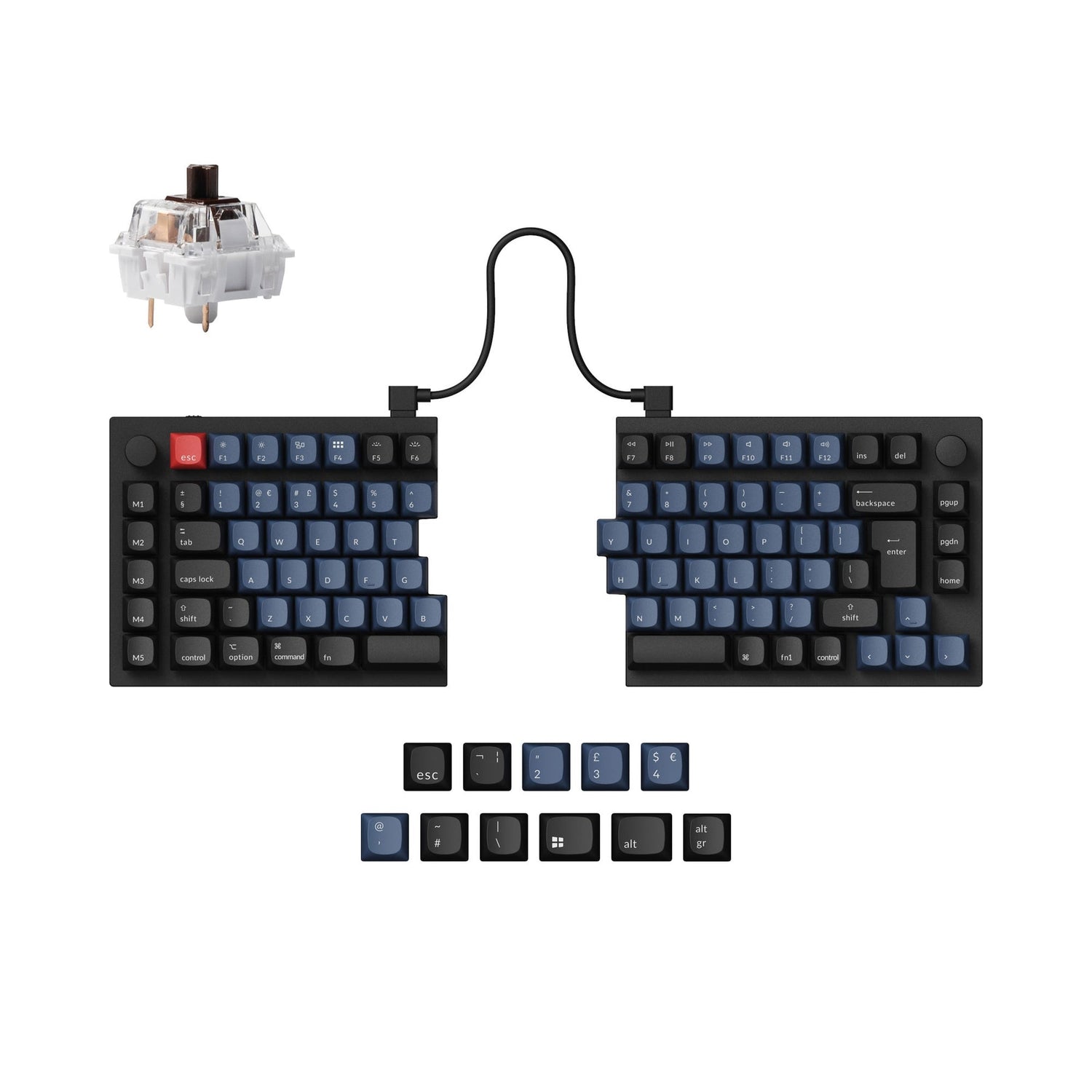

🇬🇧 UK-ISO Layout

Keychron Q11 UK ISO Layout Custom Mechanical Keyboard

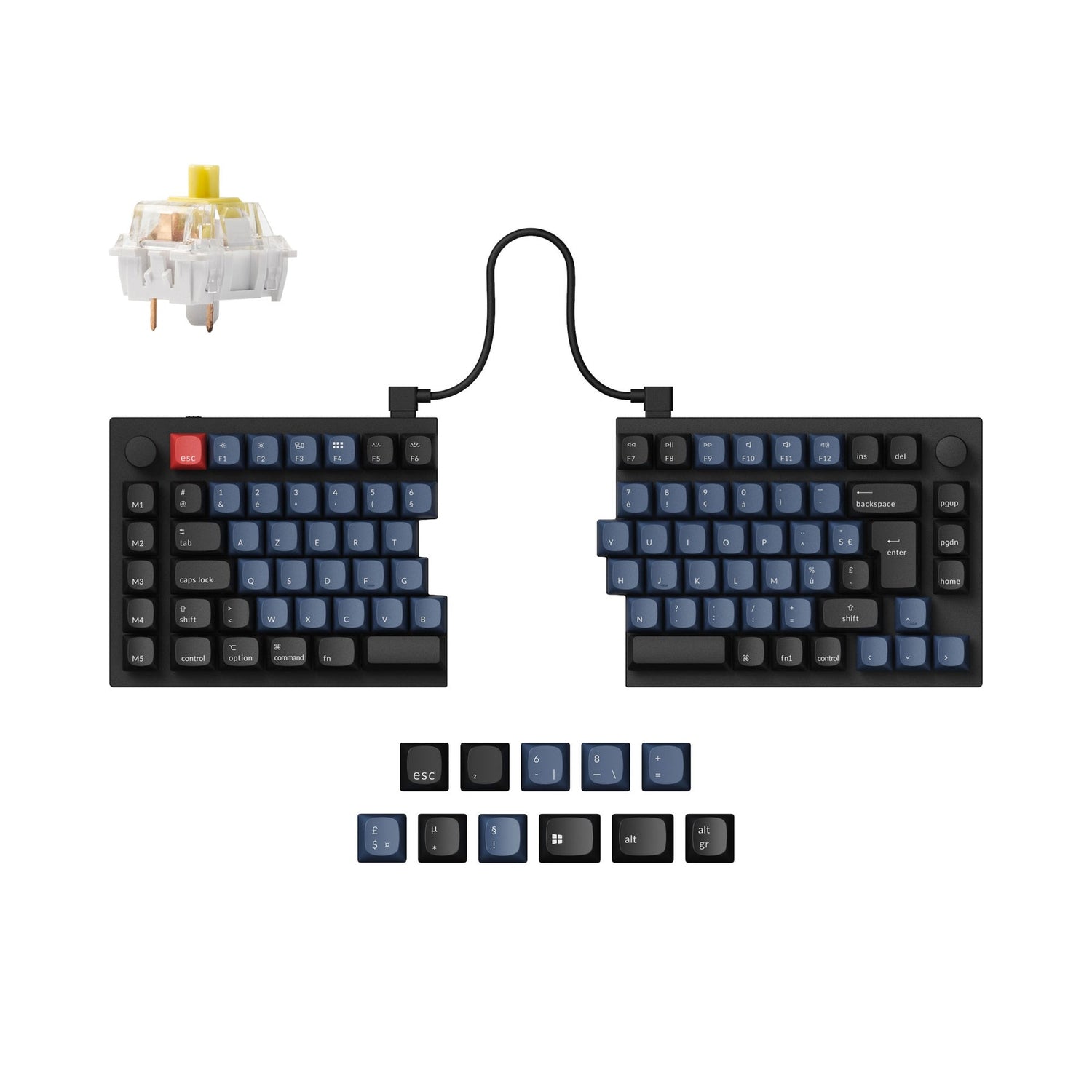

🇫🇷 FR-ISO Layout

Keychron Q11 French ISO Layout Custom Mechanical Keyboard

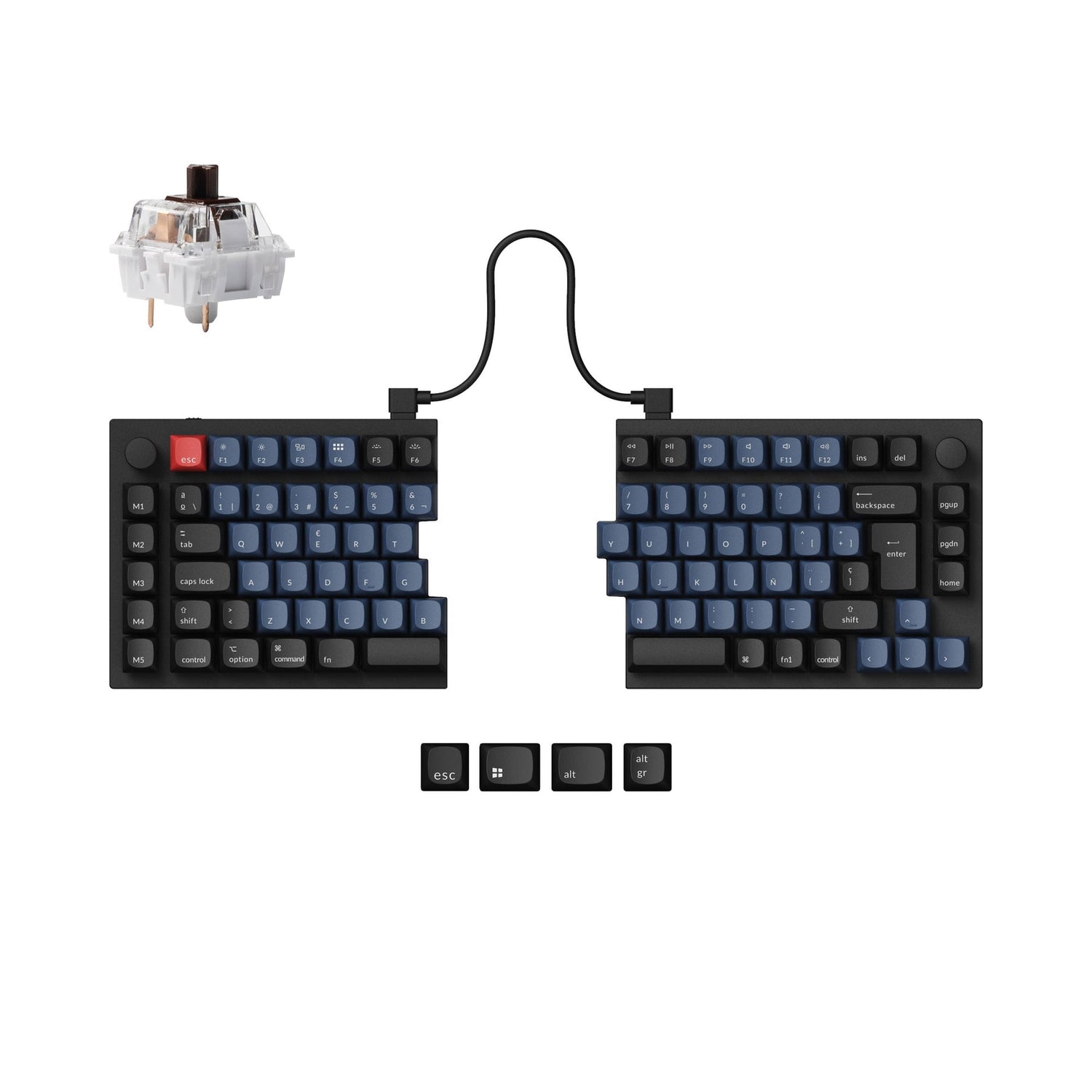

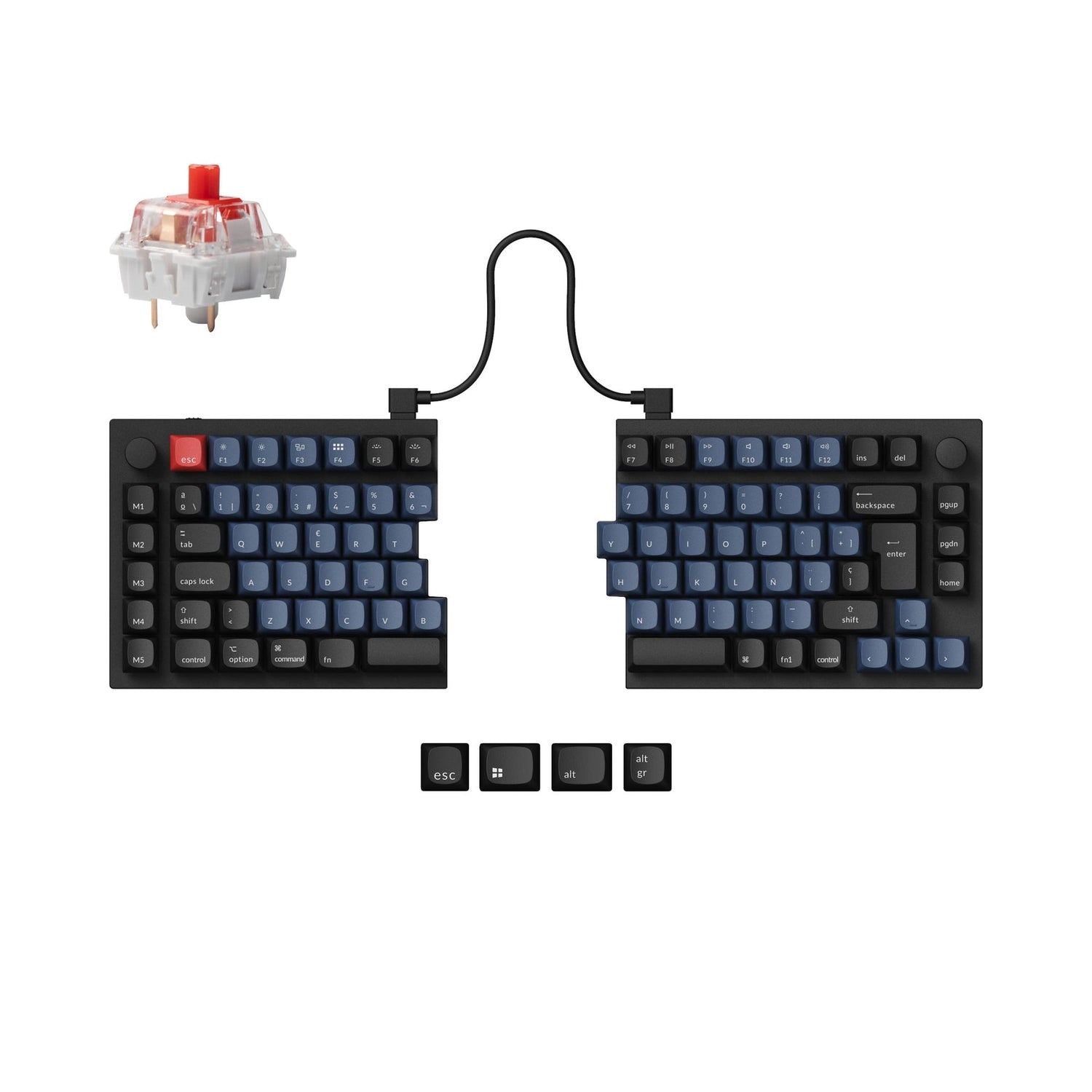

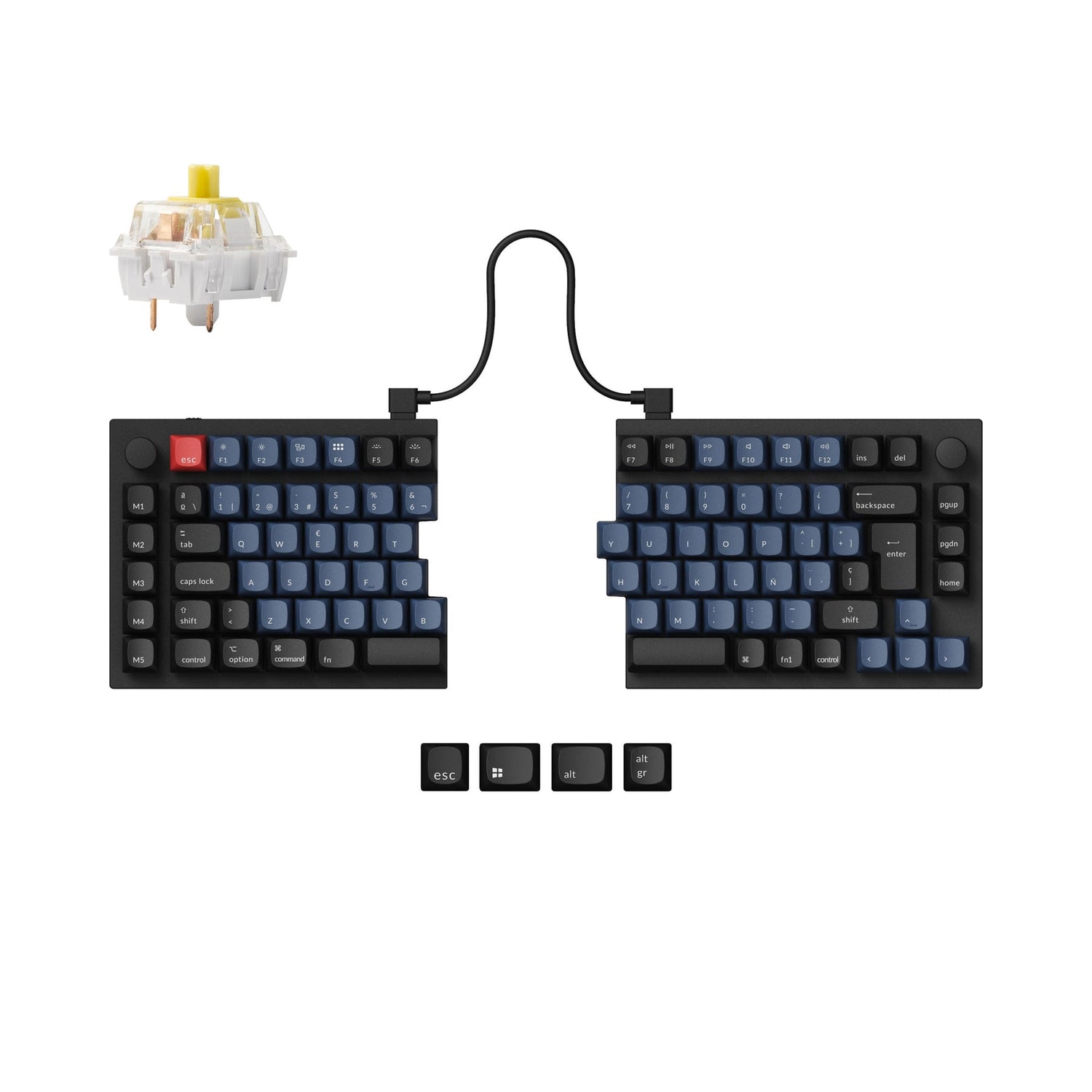

🇪🇸 ES-ISO Layout

Keychron Q11 Spanish ISO Layout Custom Mechanical Keyboard

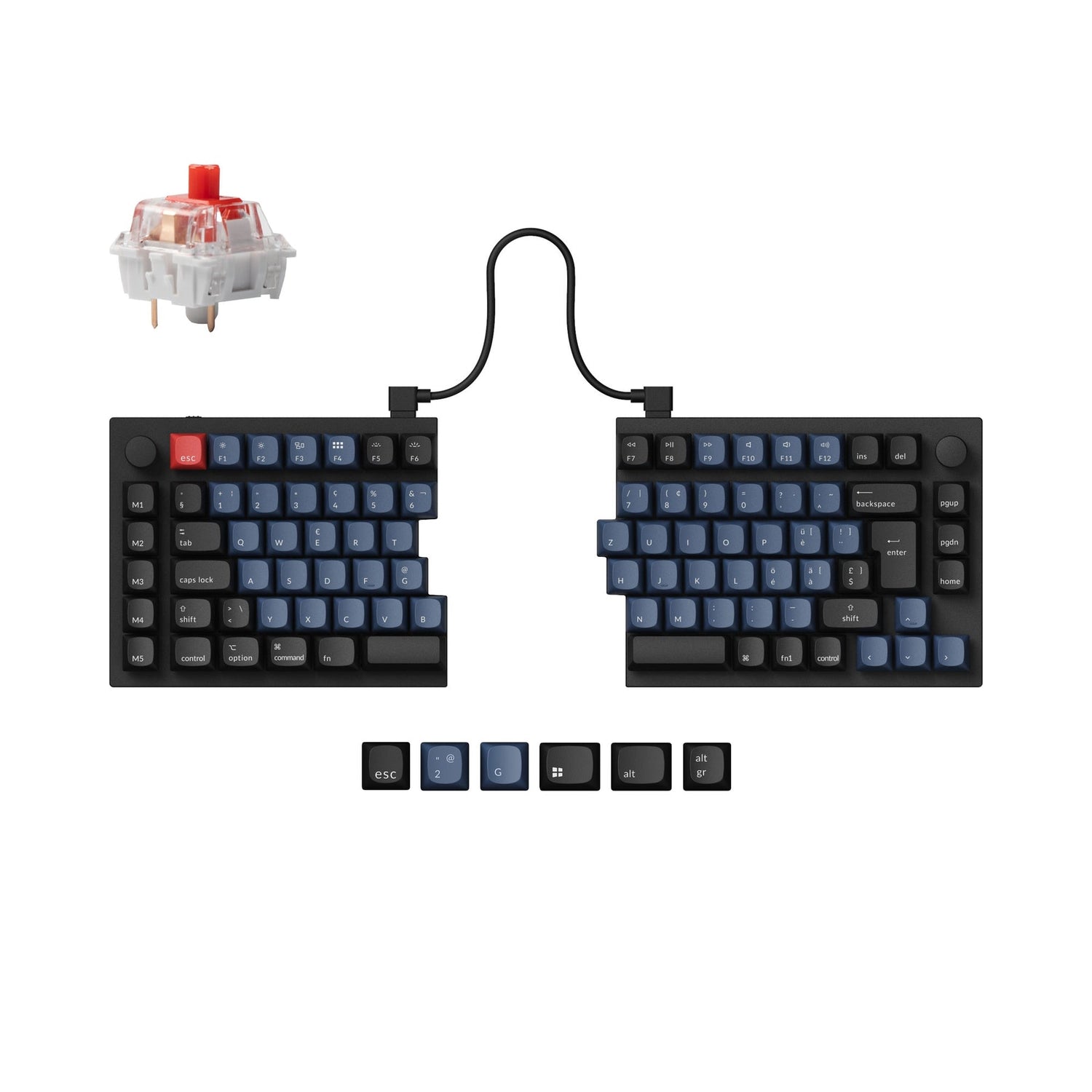

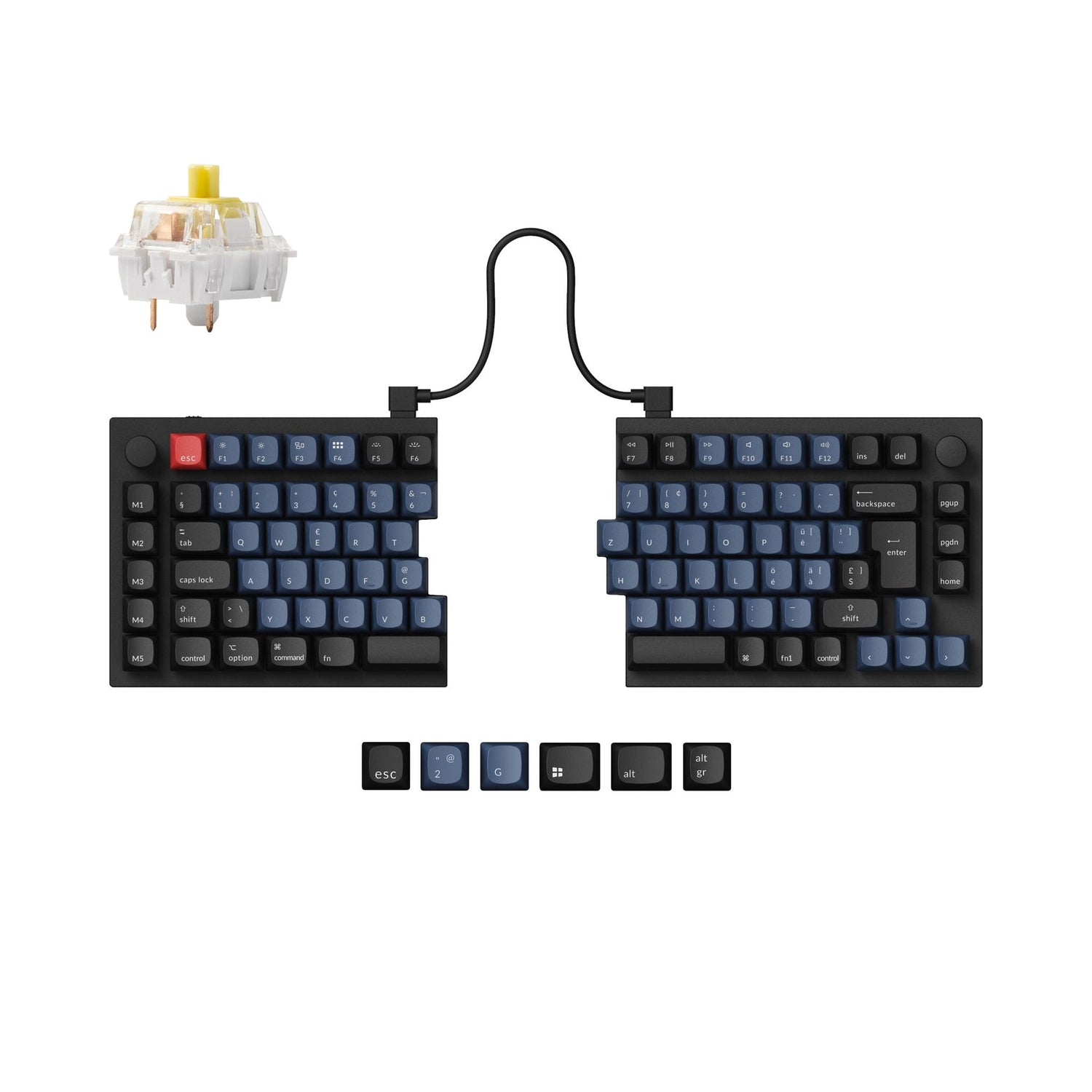

🇨🇭 Swiss-ISO Layout

Keychron Q11 Swiss ISO Layout Custom Mechanical Keyboard

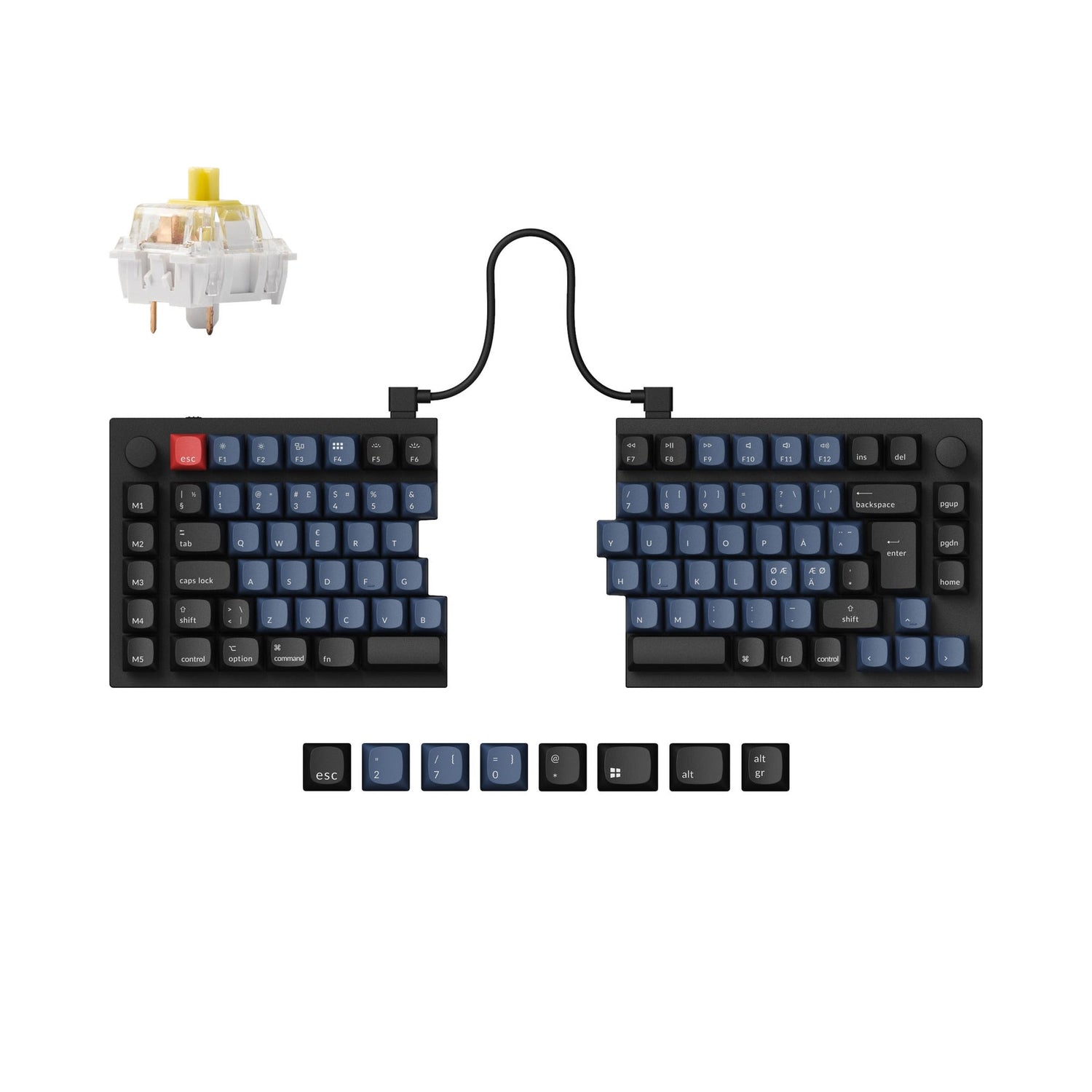

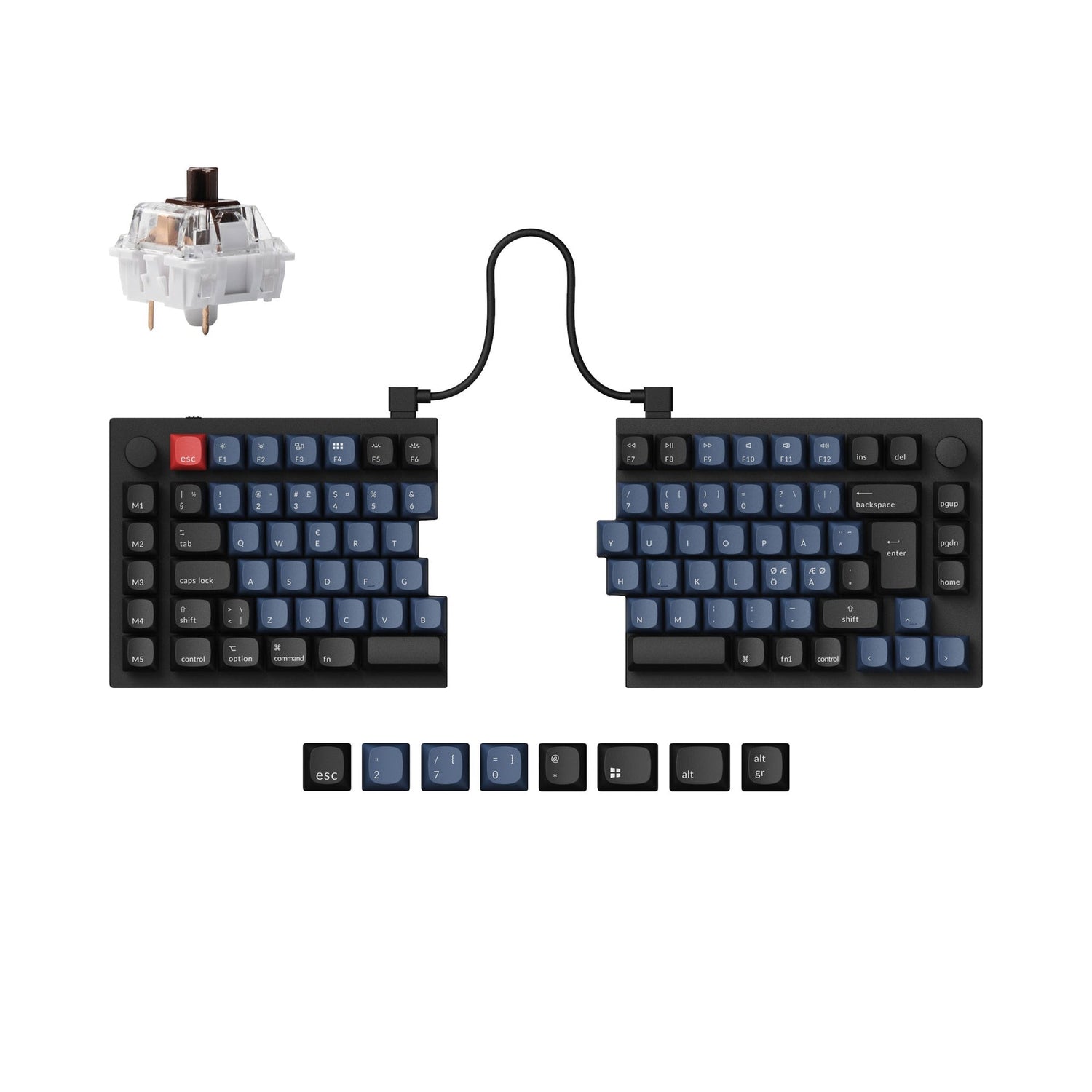

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

Keychron Q11 Nordic ISO Layout Custom Mechanical Keyboard

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q11.

Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Structure of Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout
structureofthekeychronq11mobileview-1677228186551_e34982ec-5169-4d1e-990a-b16f2092692c__PID:916350f9-bc8e-4e2d-a40f-32f3a017d8db
Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile ABS Backlight Shine-Through Keycaps

To further leverage your typing experience, the Q11 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q11 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Rotary encoder function of Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

You can easily customize the Q11's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Program Q11 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Program Q11 ISO 75% Layout with QMK & VIA

Get the Q11 ISO keymap working on VIA

Since the VIA code for the Q11 ISO is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q11 Pro keymap working on VIA.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the Keychron K Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron K Pro Switch Features
All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q11 also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron Q11 ISO 75% Layout Split Custom Mechanical Keyboard ISO Layout

Specs

Width134  mm
Length345 mm
Front Height9.8 mm  (without keycaps)
Back Height16.3 mm (without keycaps)
Feet Height1.5 mm
Angle2.8°
Weight1186 g ± 10g (the fully assembled weight)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000Hz
LayoutDE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO
Keycaps (Fully Assembled Version)Backlight shine-through ABS keycaps, OSA Profile (OEM height, SA shape)
SwitchesKeychron K Pro (fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Keychron Q11 User Guide

Learn more about the Keychron Q11 such as the Q11 shortcuts, assembling the Q11, factory reset, and more in the FAQ section.
