Regular price £174.00 Sale price £164.00
/
20 in stock

TYPE
COLOR
SWITCHES

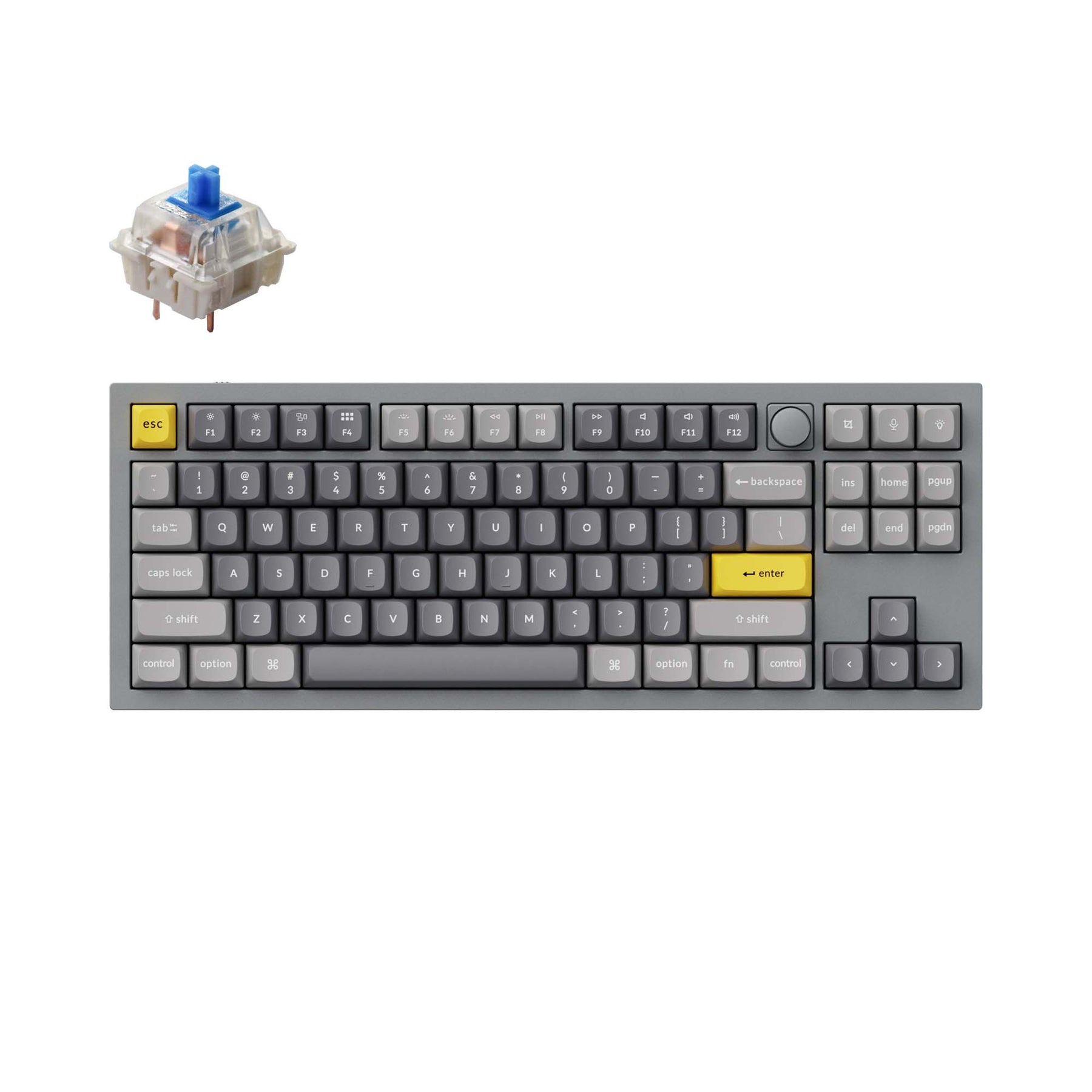

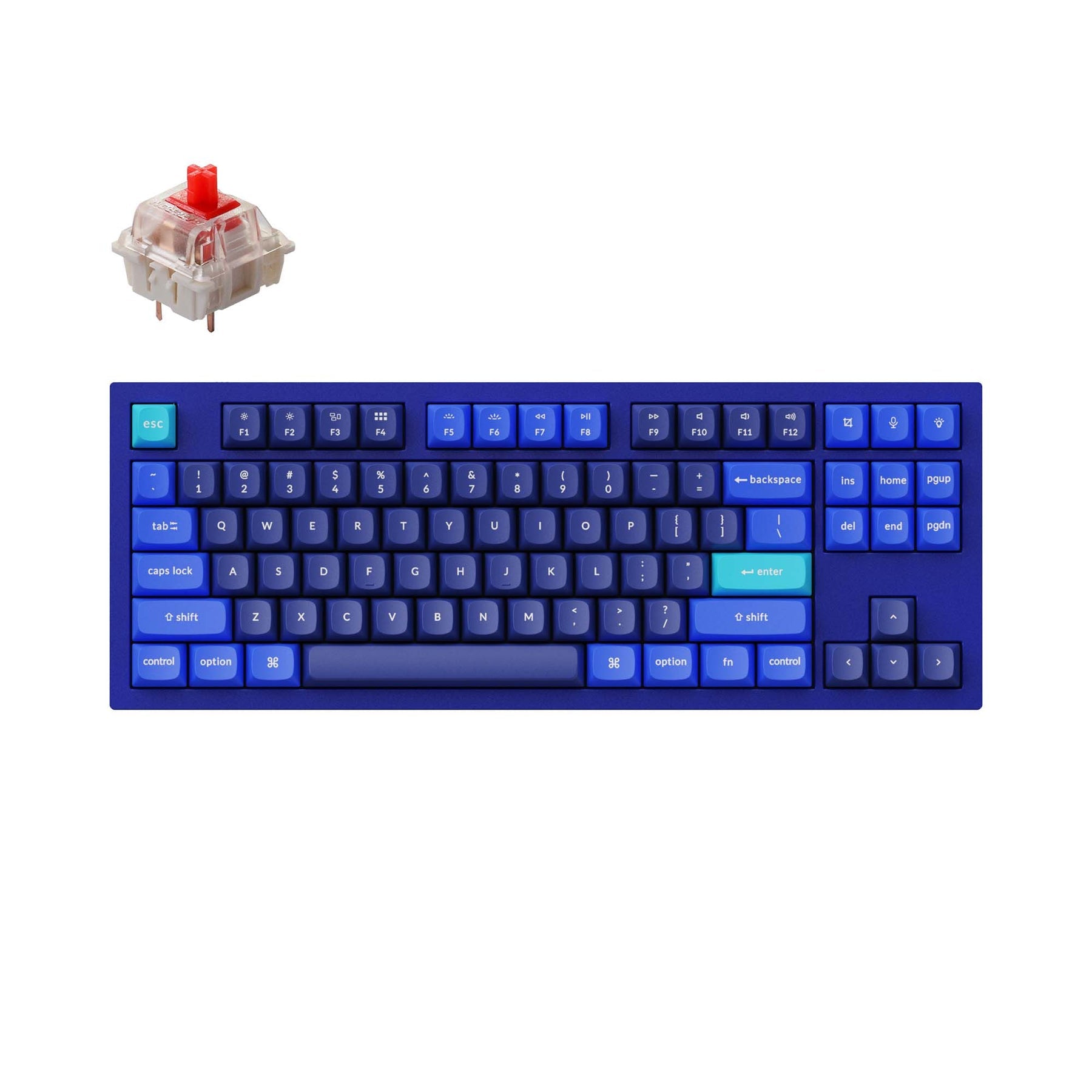

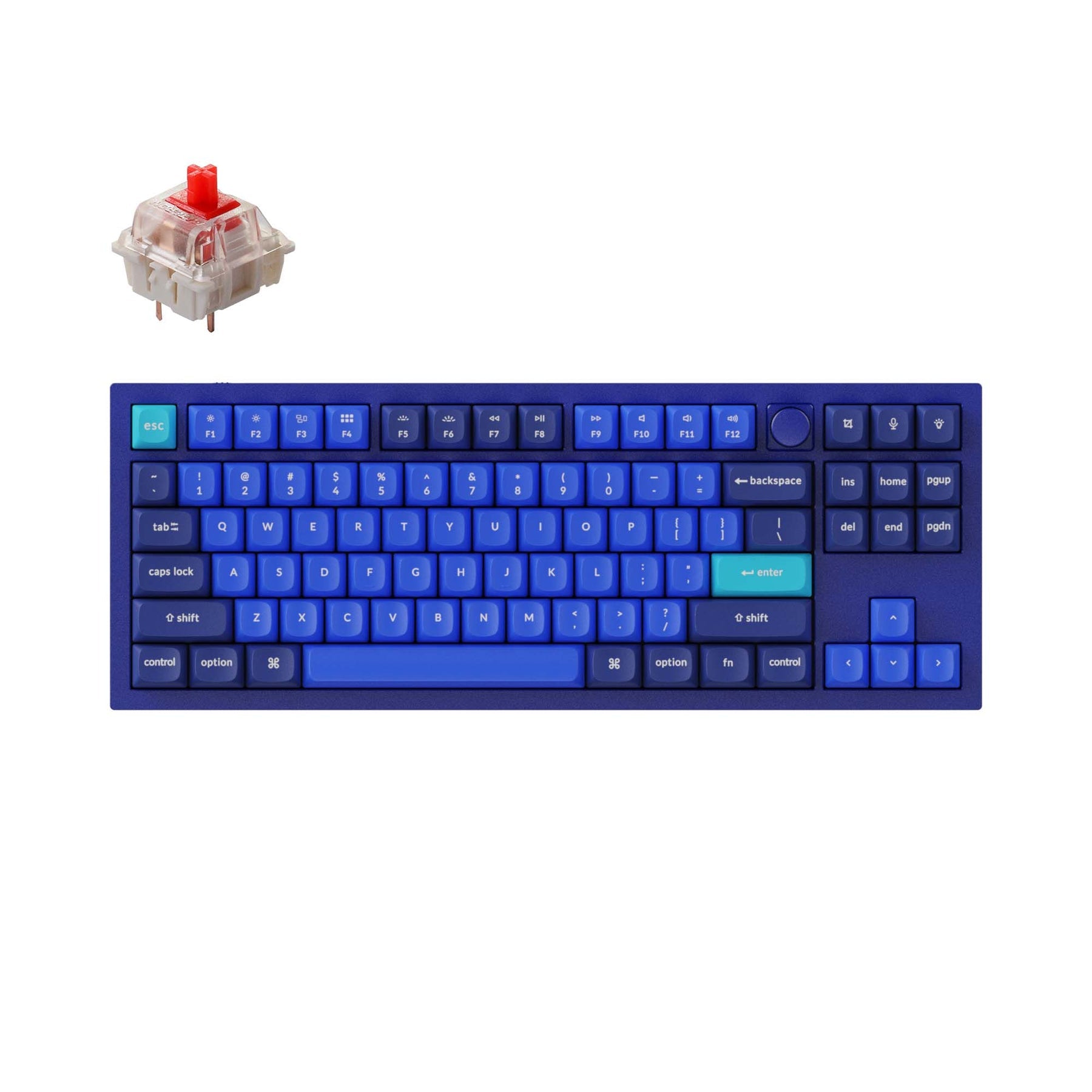

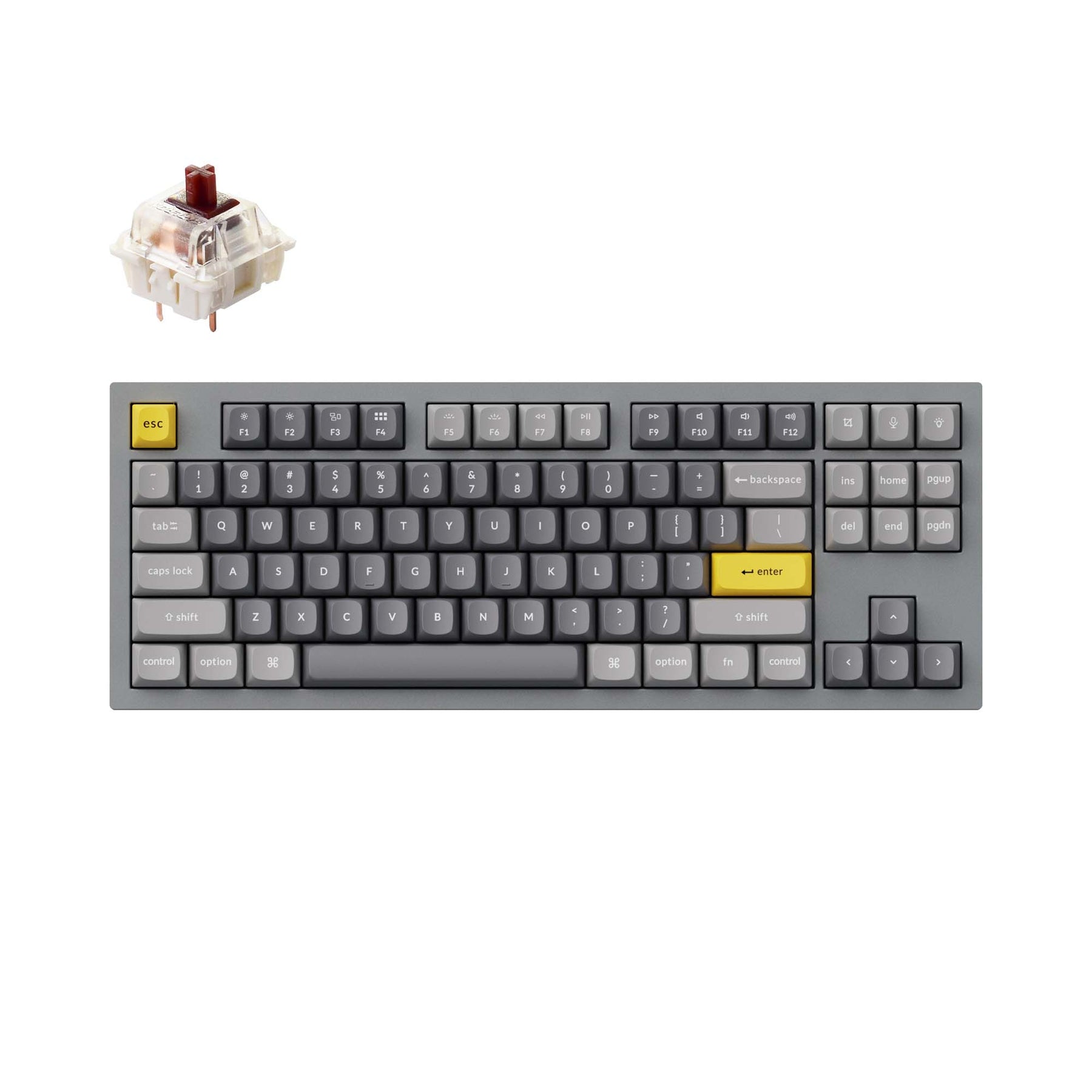

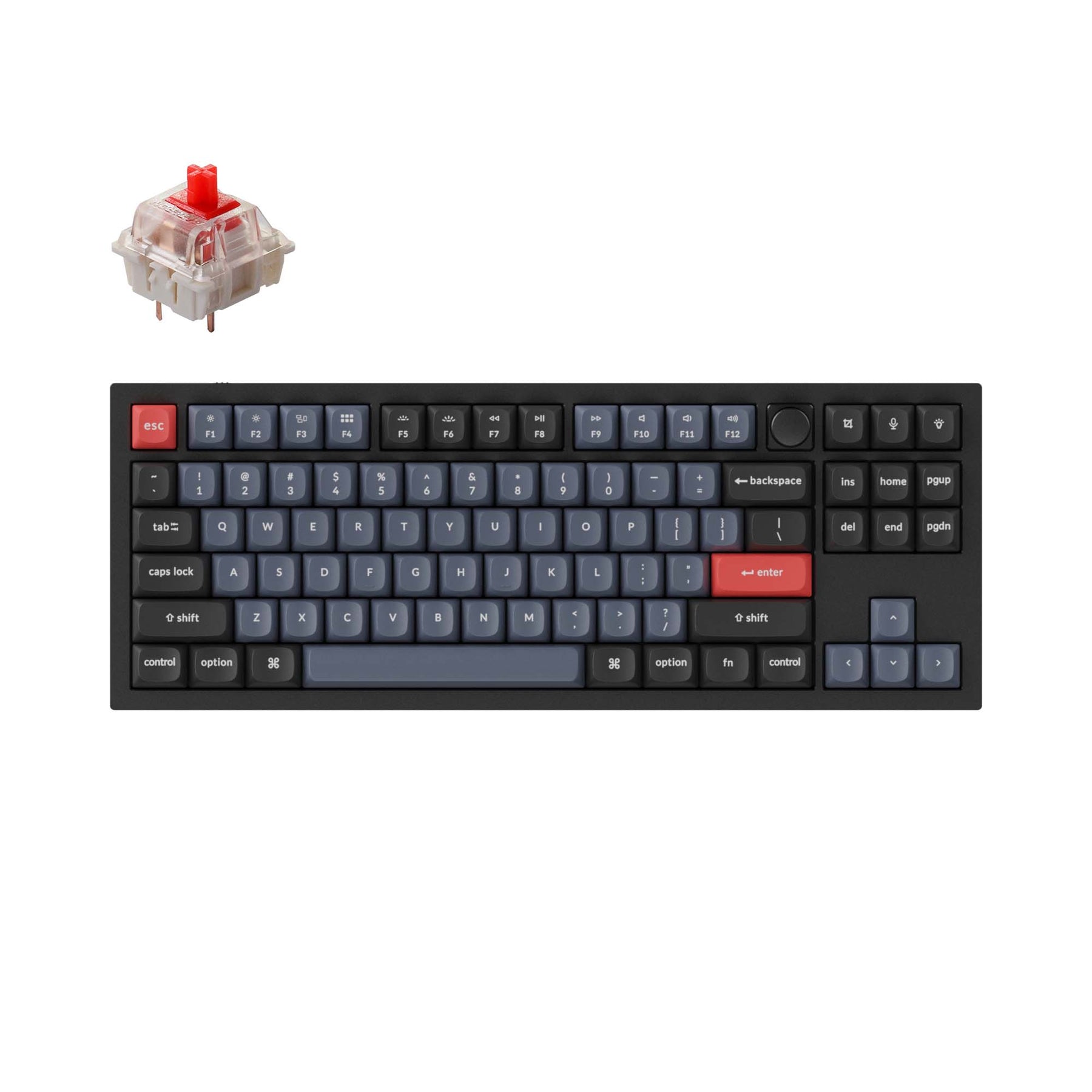

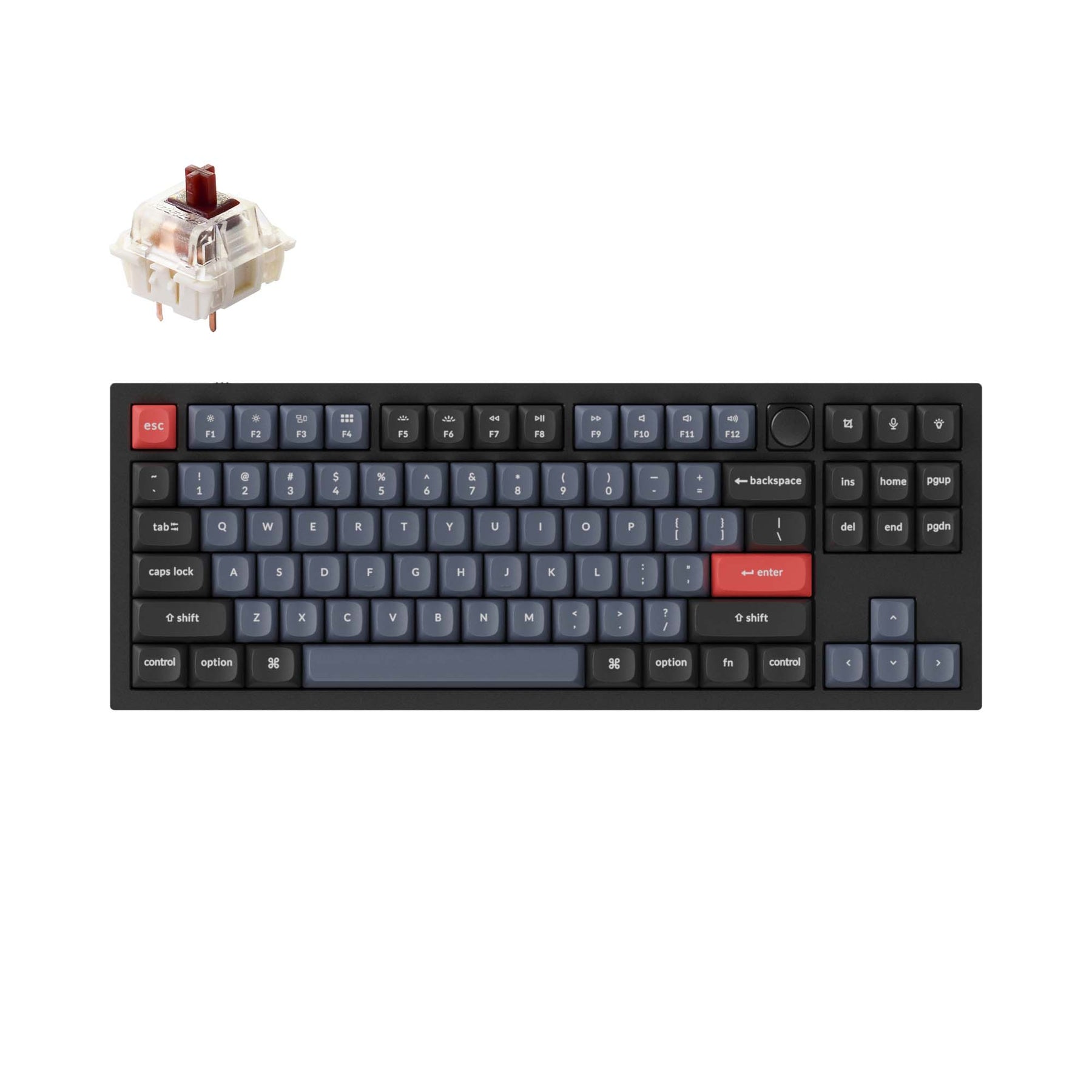

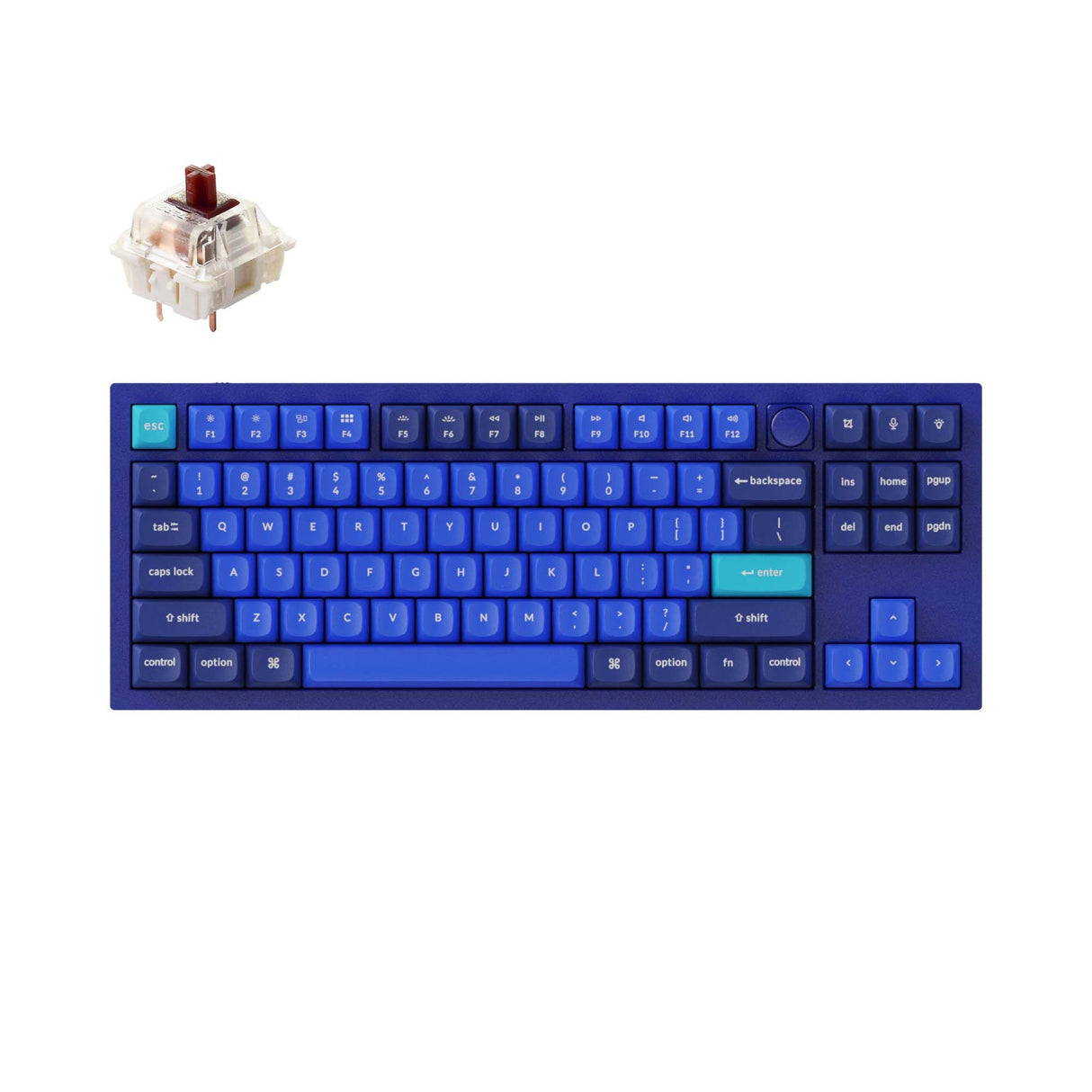

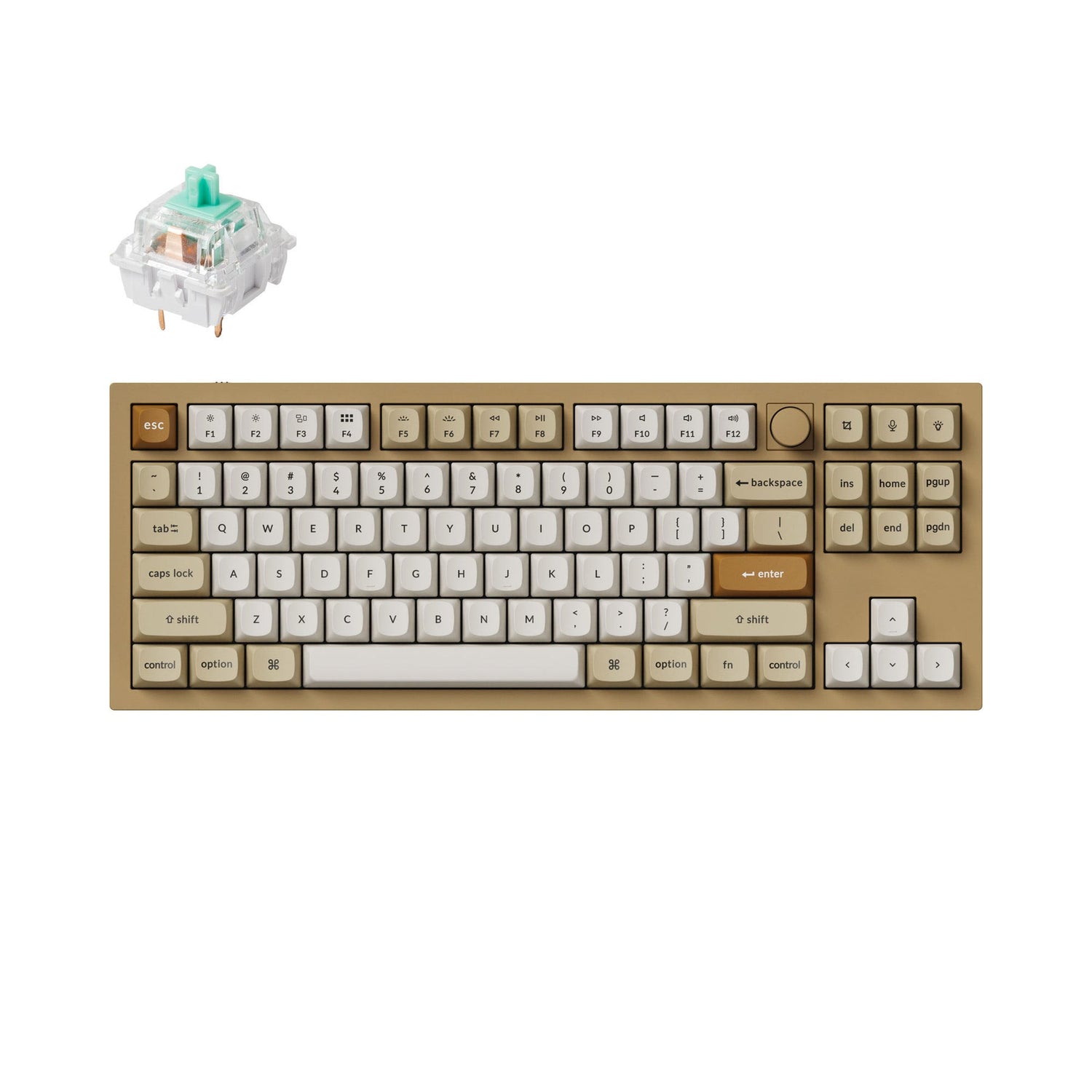

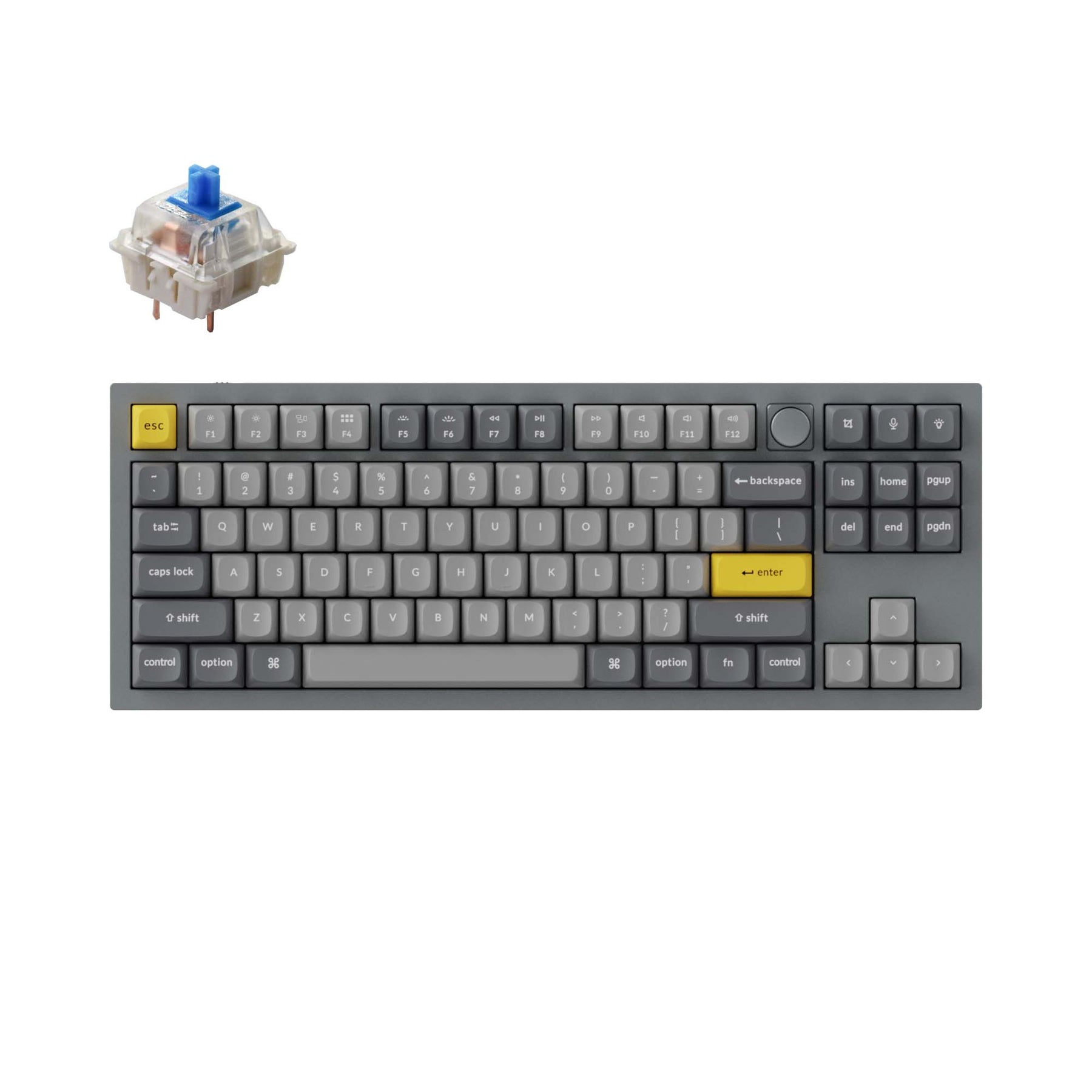

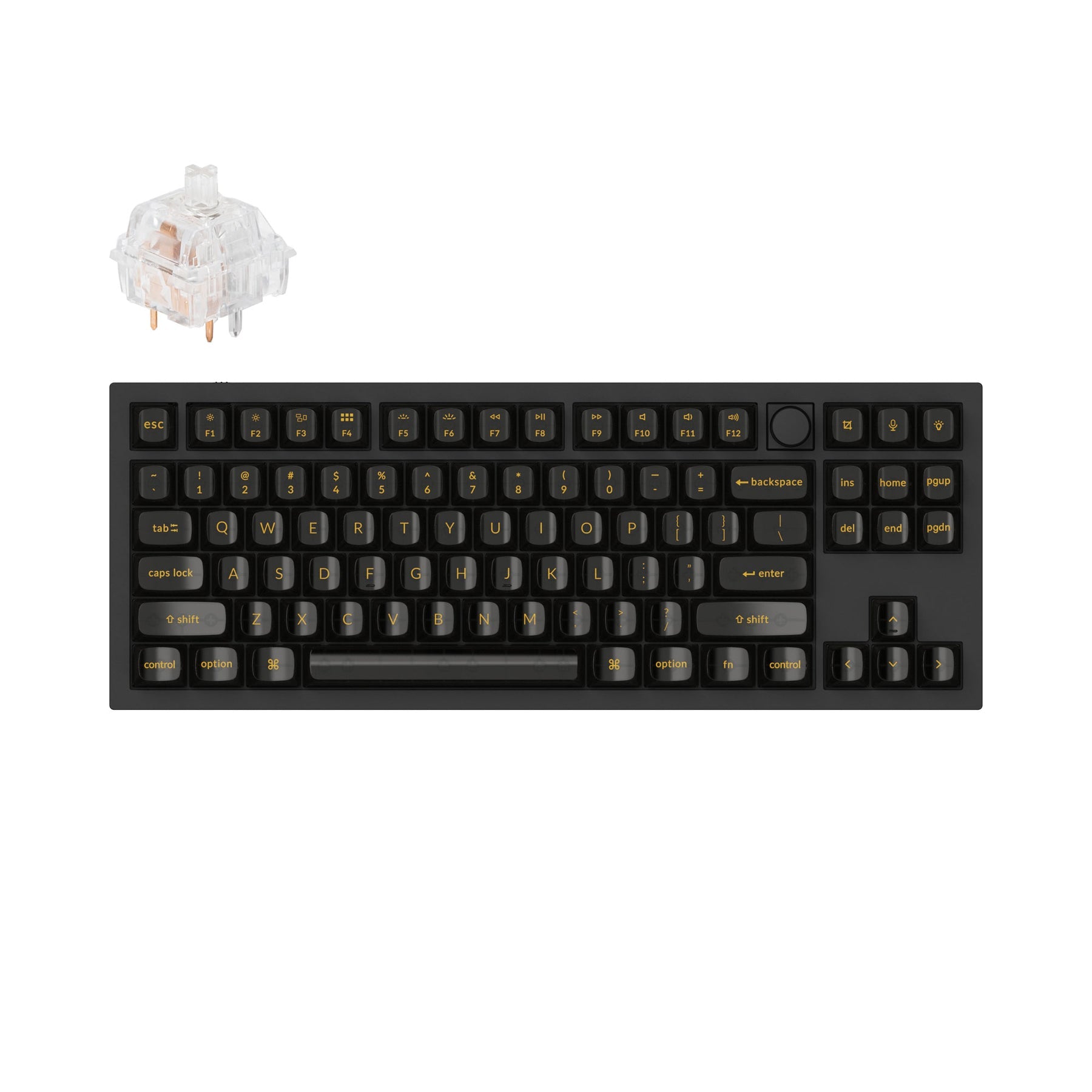

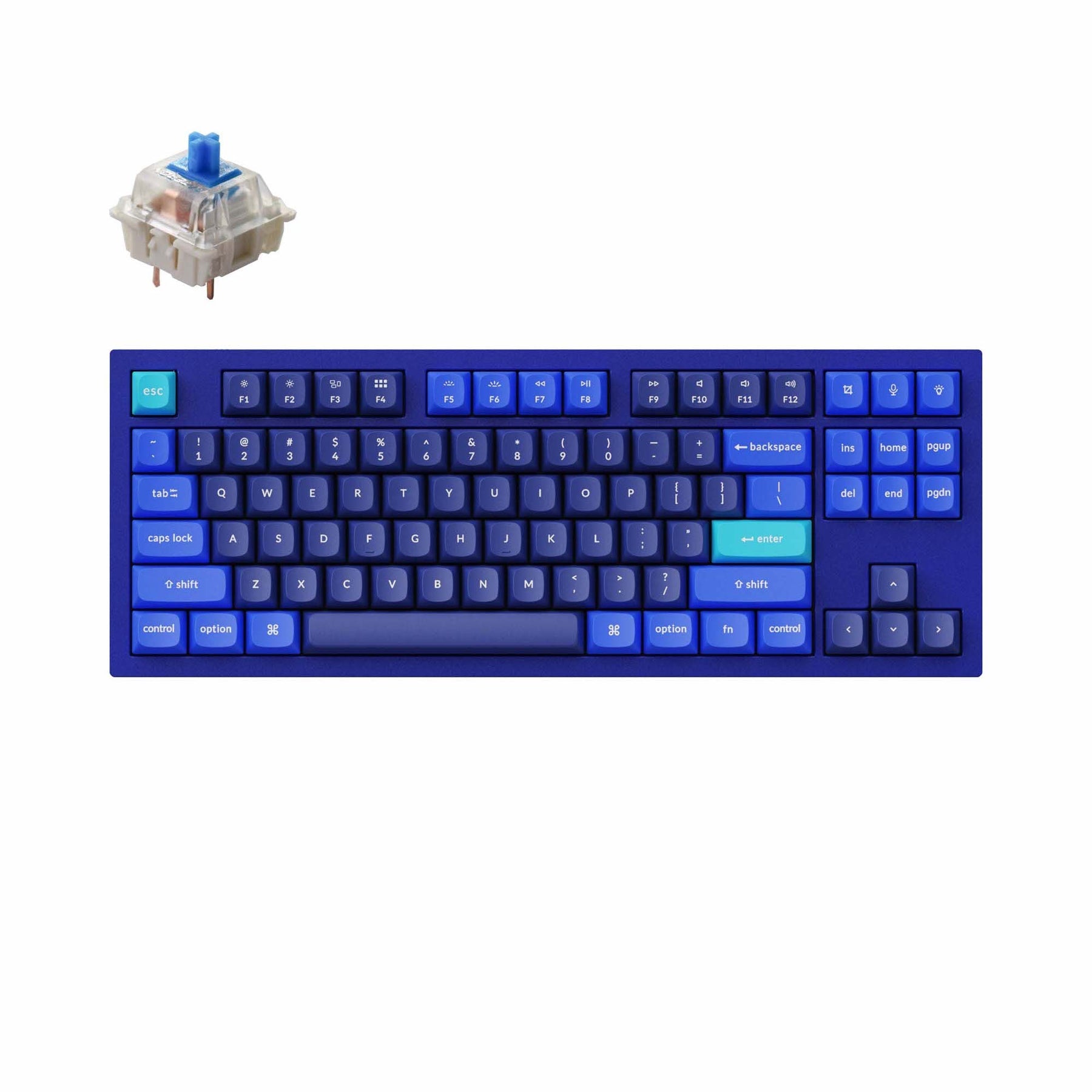

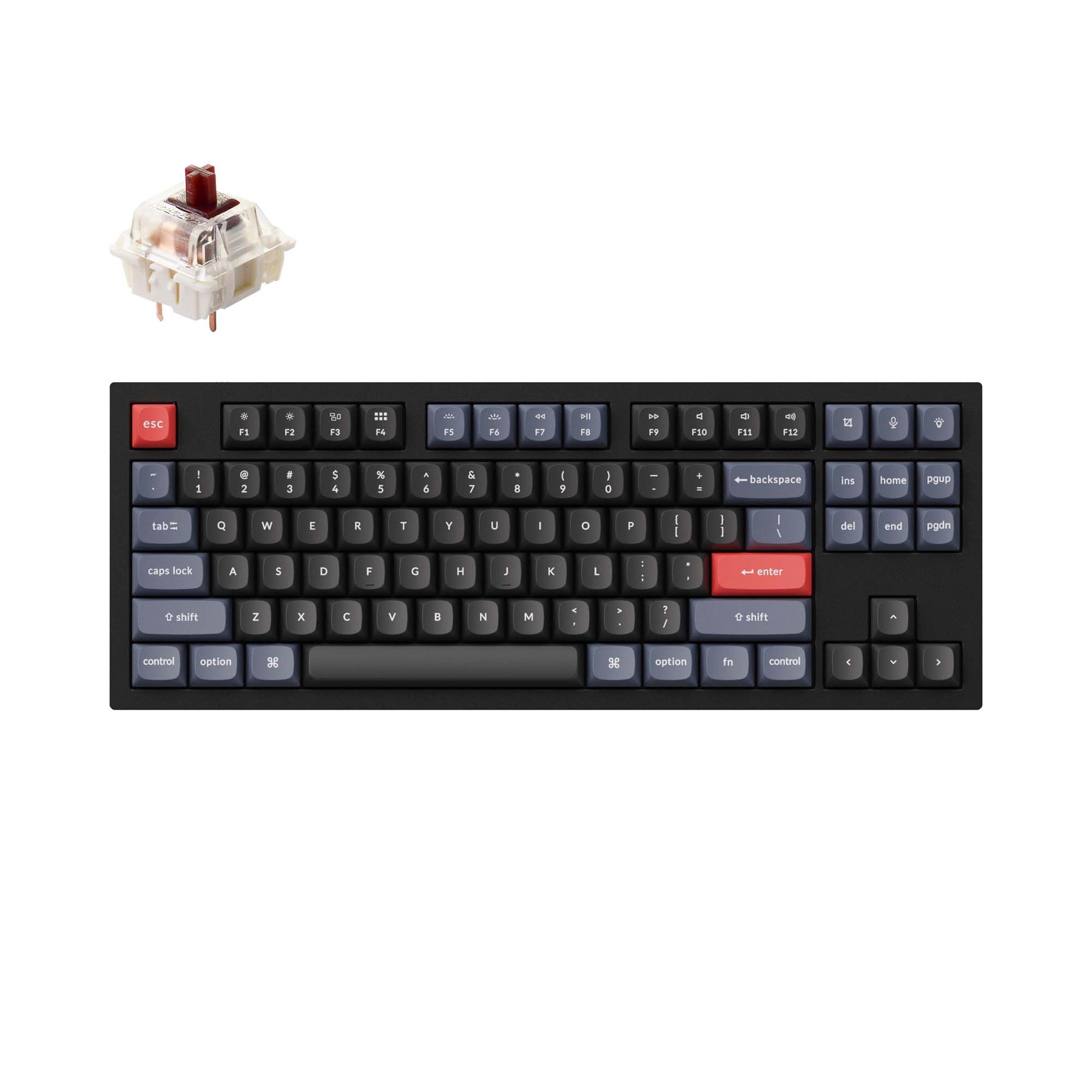

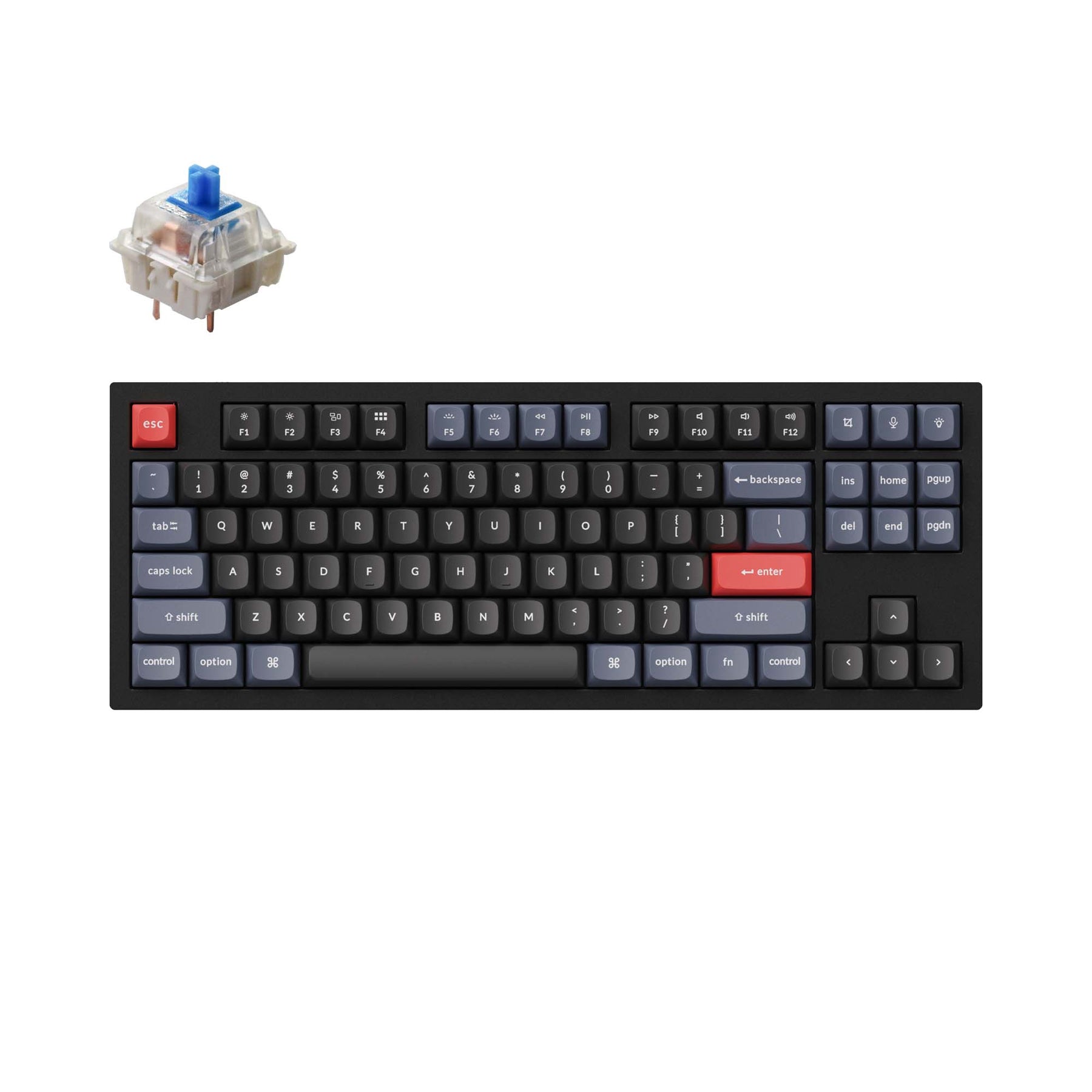

The fully assembled version includes:
  • The keyboard PCB, the case, and the steel plate.
  • Double-shot OSA PBT keycaps (included Mac & Windows keycaps).
  • Gateron G Pro switches.

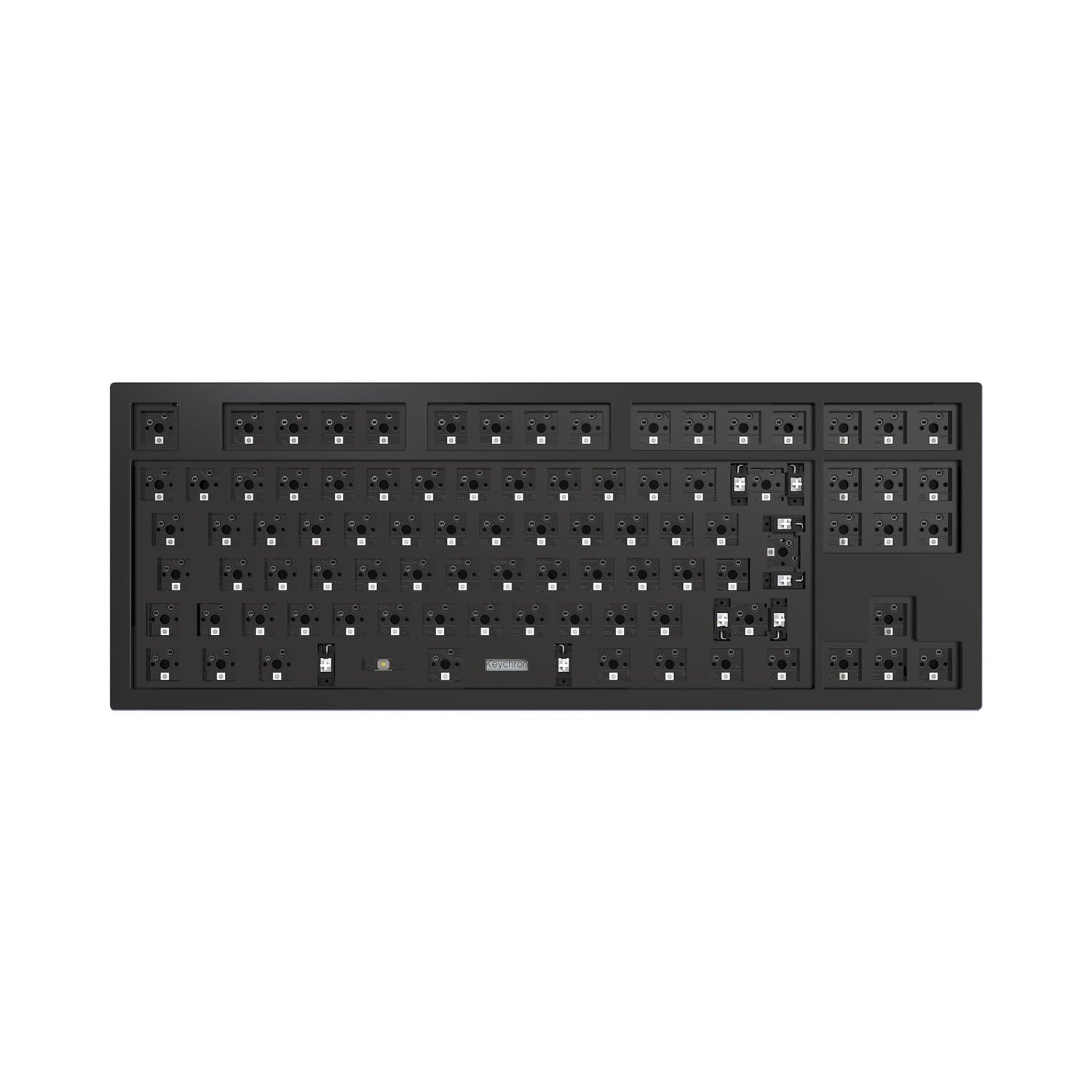

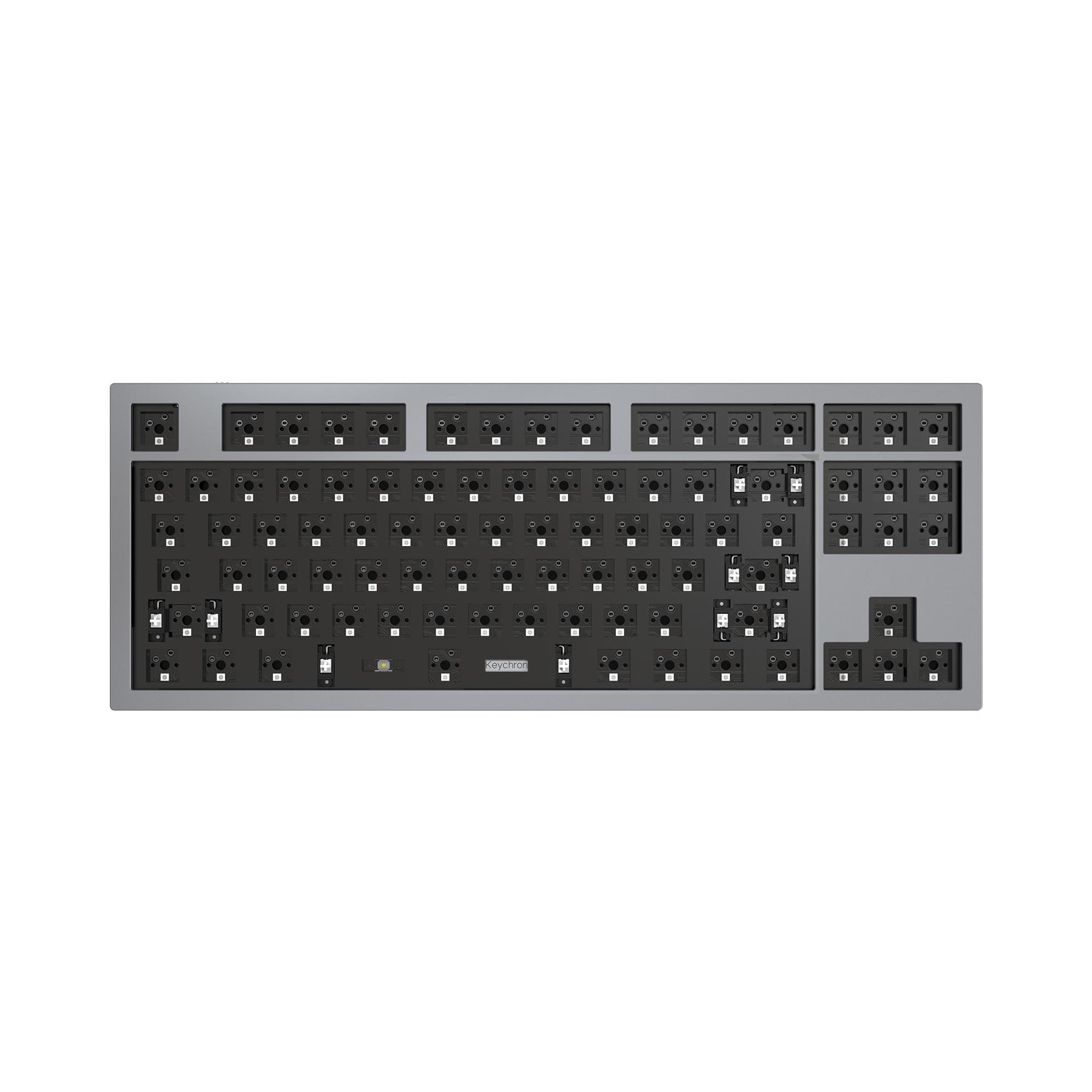

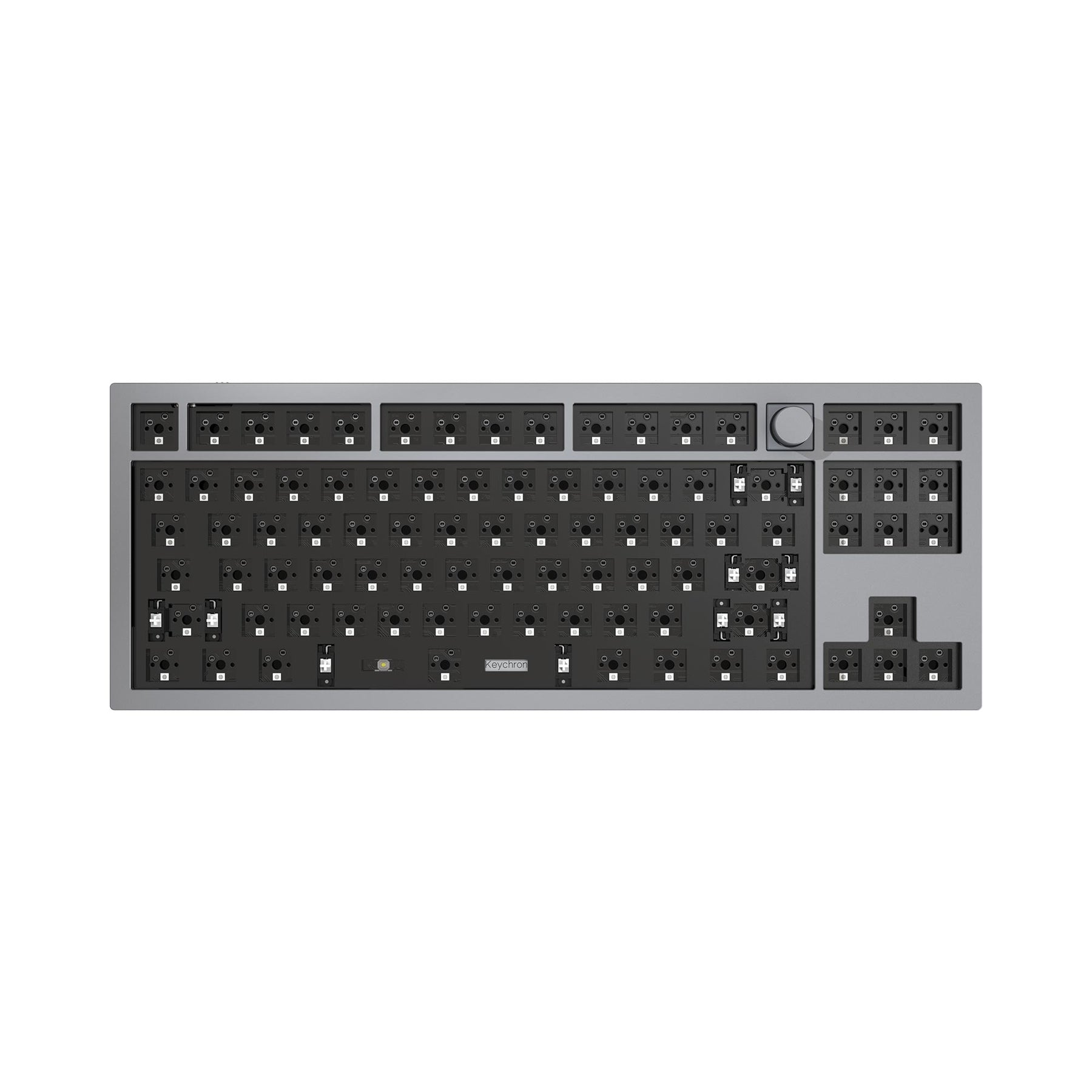

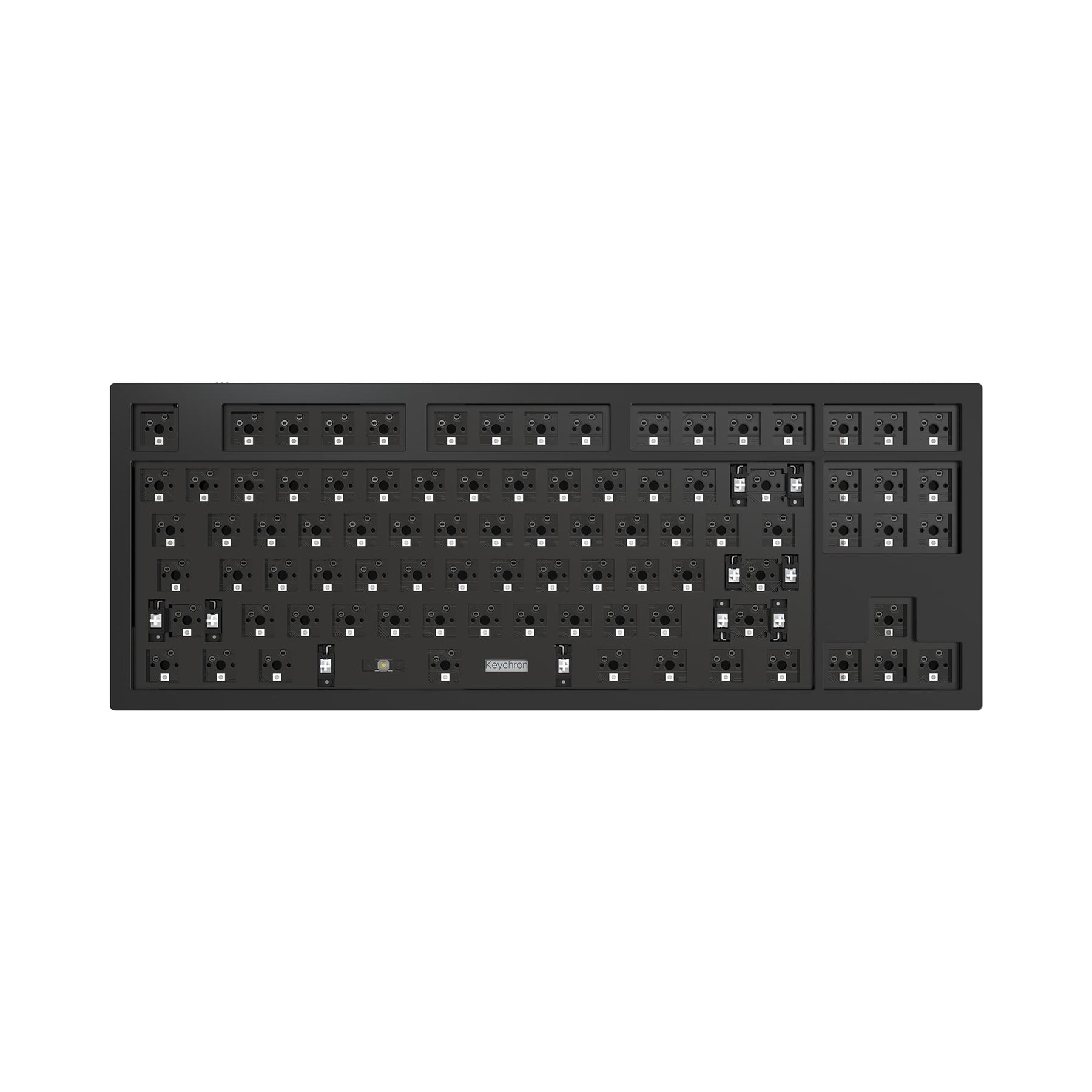

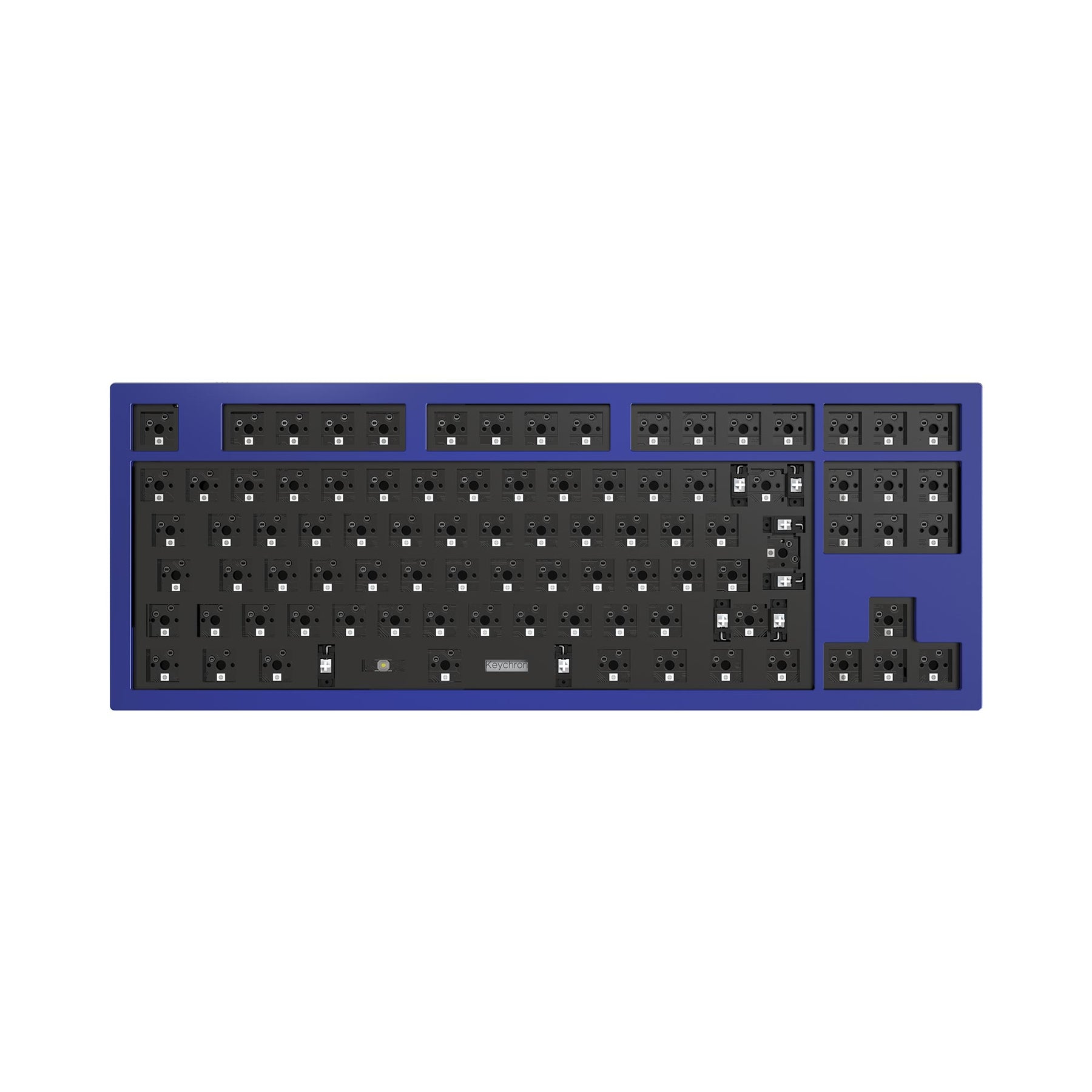

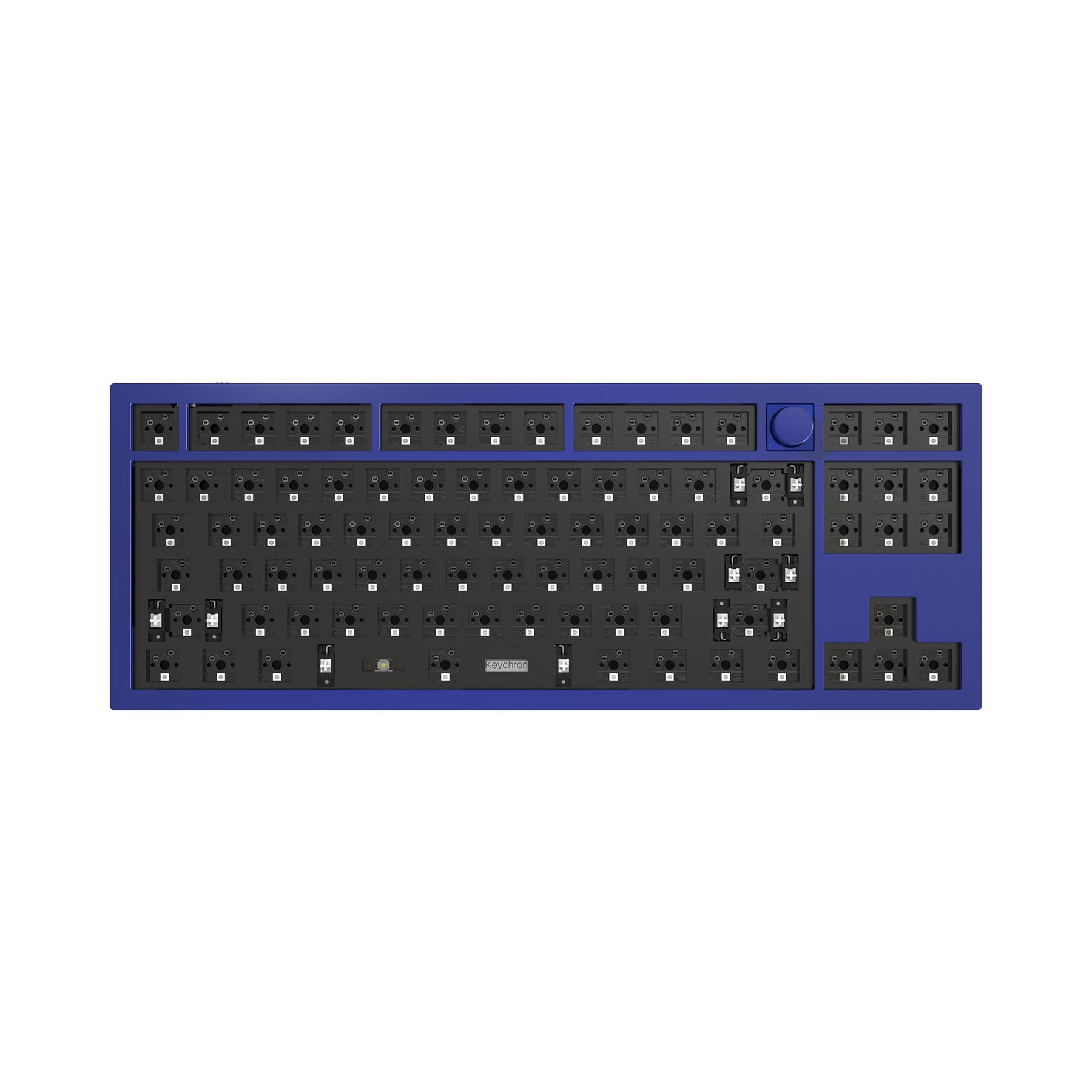

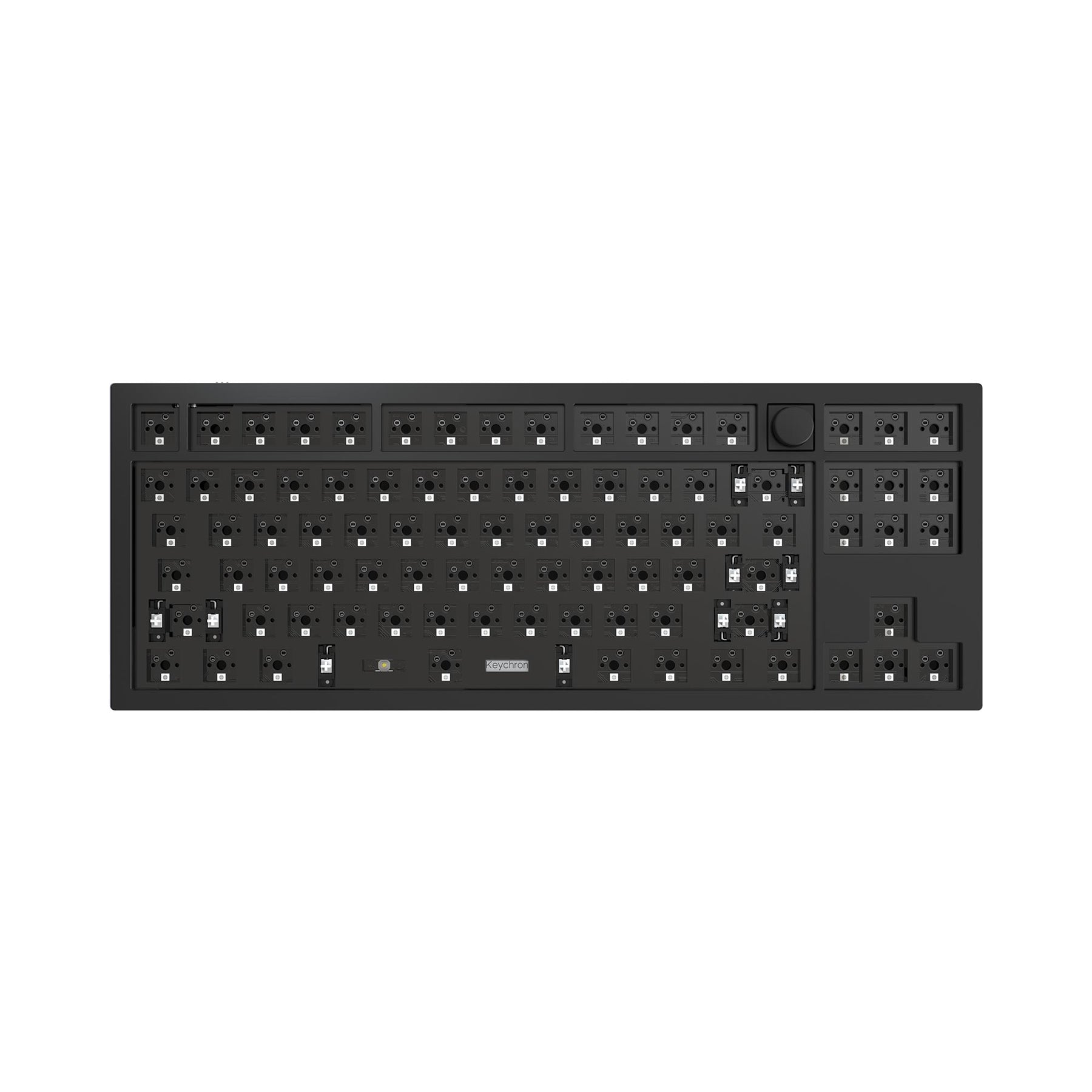

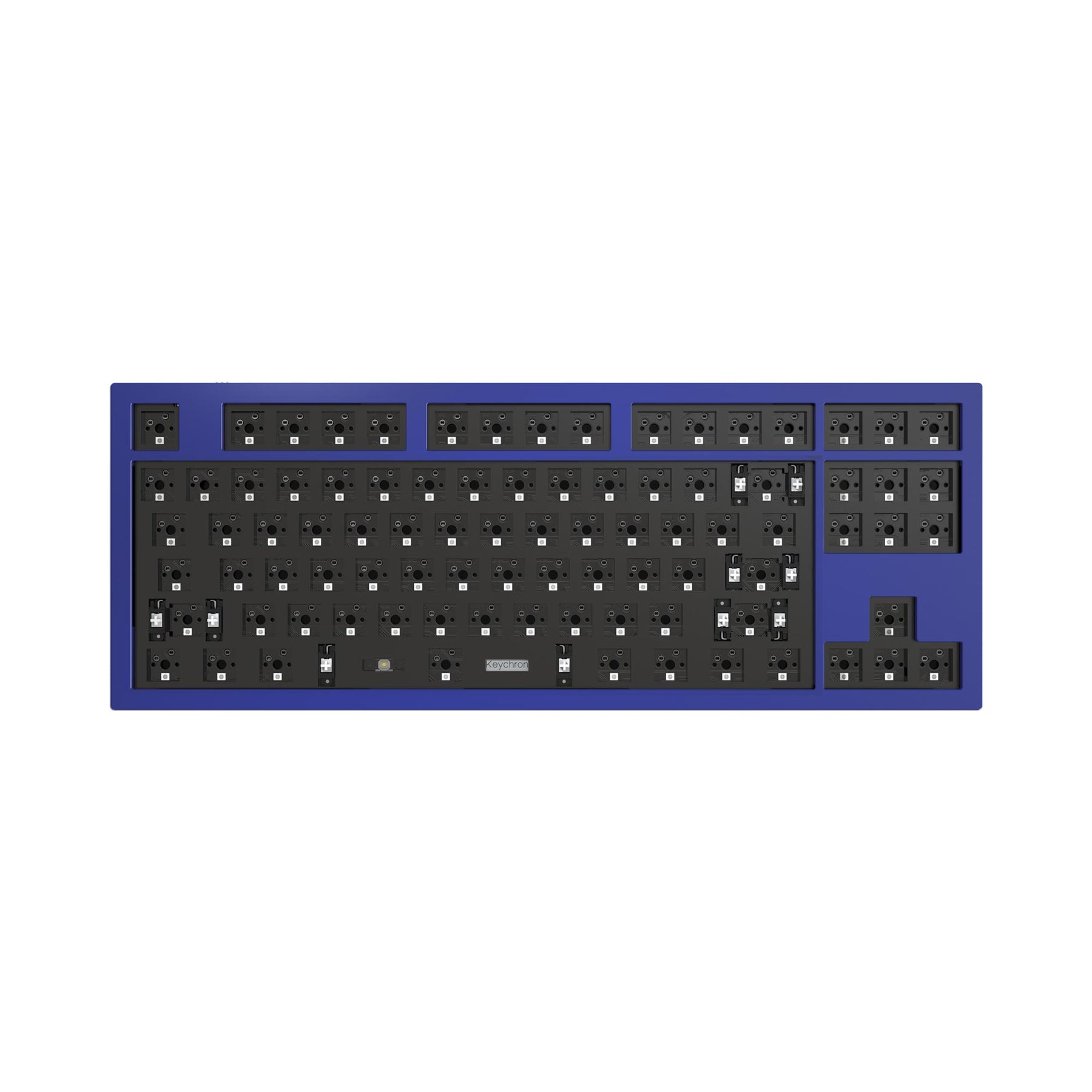

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q3.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Keychron Q3 80% TKL Custom Mechanical Keyboard

Keychron Q3

The Q3 is a fully customizable mechanical keyboard to push your typing experience to the top. With the classic tenkeyless layout, full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q3 is designed for premium typing comfort and endless possibility.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard
Customize Your Q3

Choose the keycaps, switches and more accessories for your Q3

Refined Metal Art

The entire piece metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make a solid metal art on the desk that is the Q3.

Keychron Q3 80% TKL Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Keychron Q3 80% TKL Custom Mechanical Keyboard

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Keychron Q3 80% TKL Custom Mechanical Keyboard

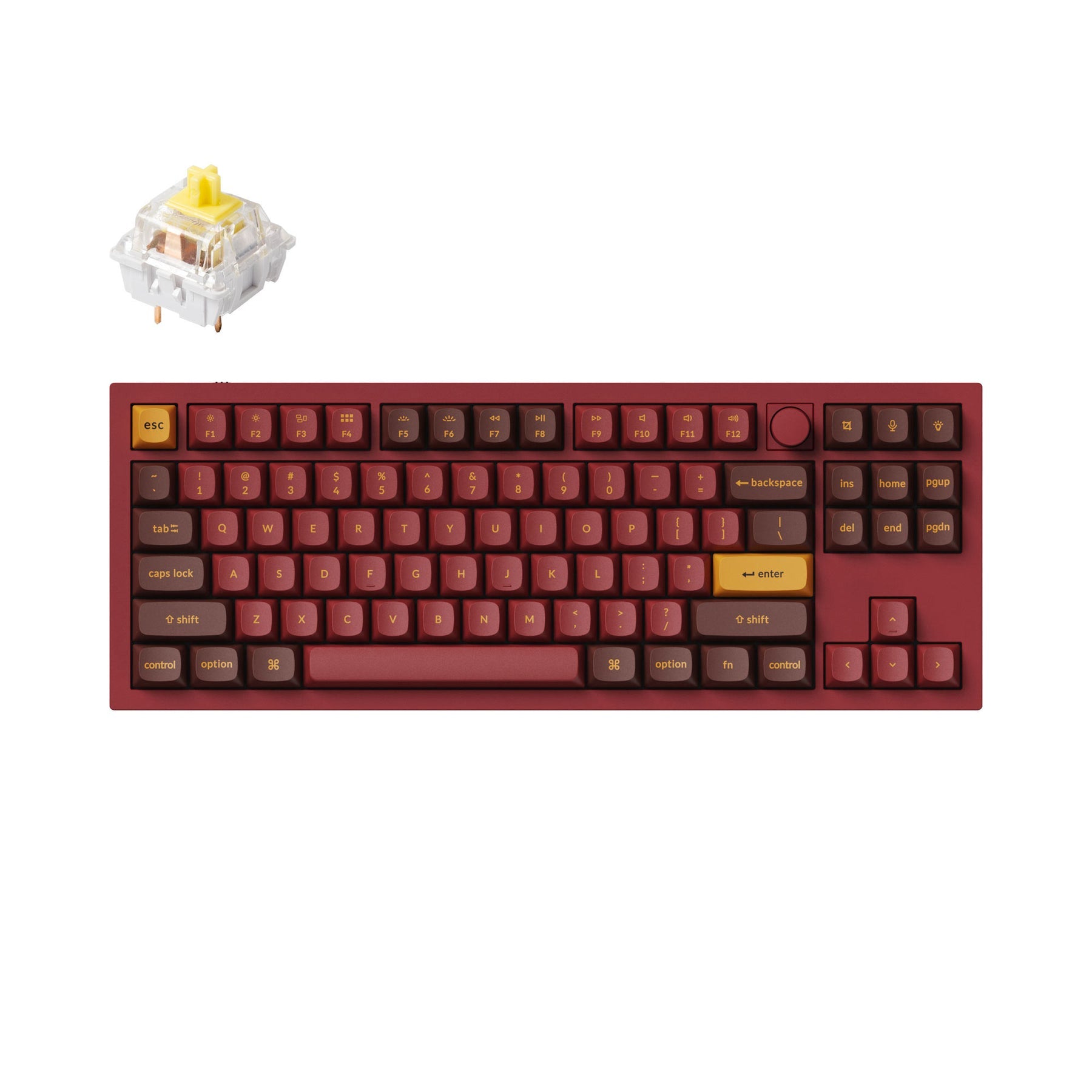

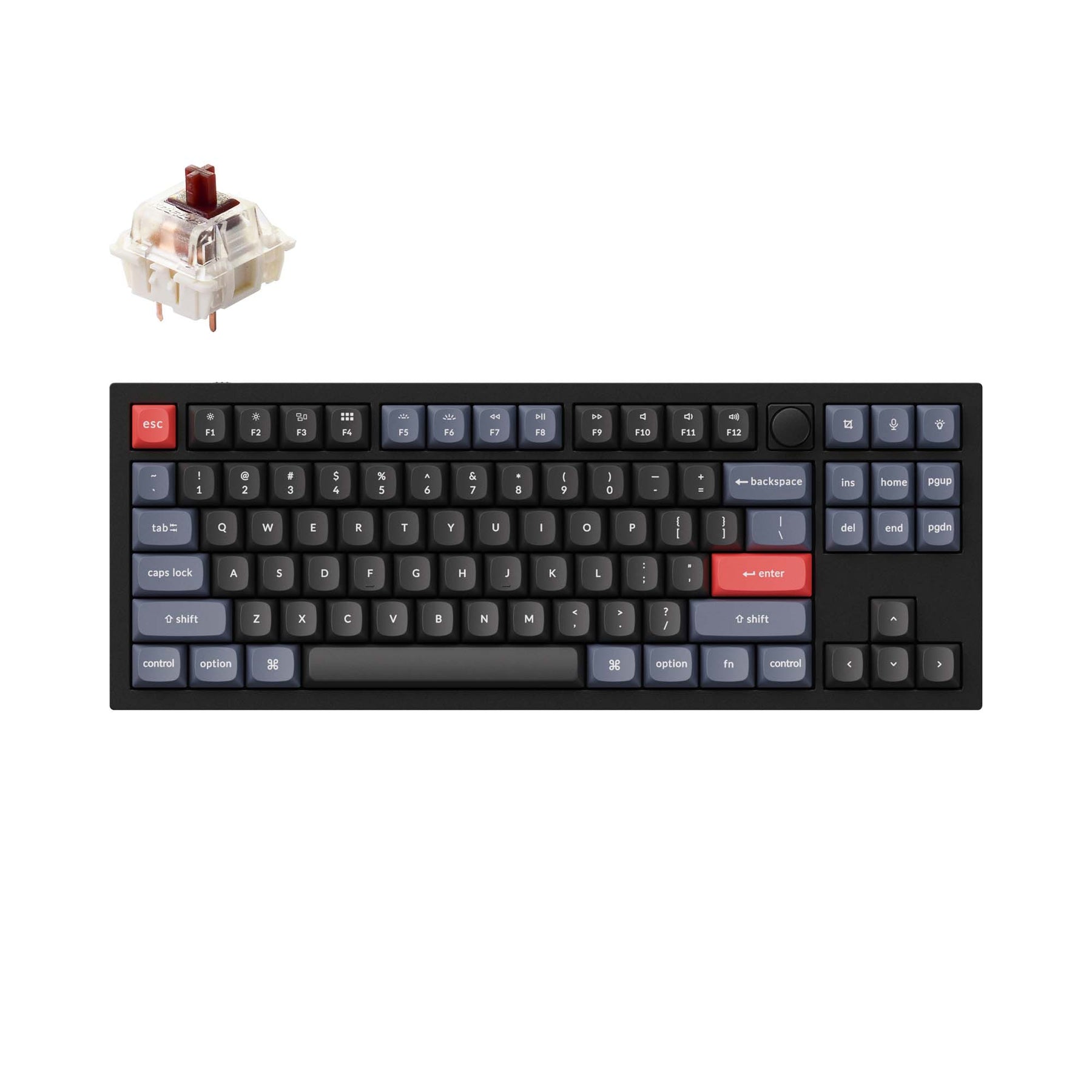

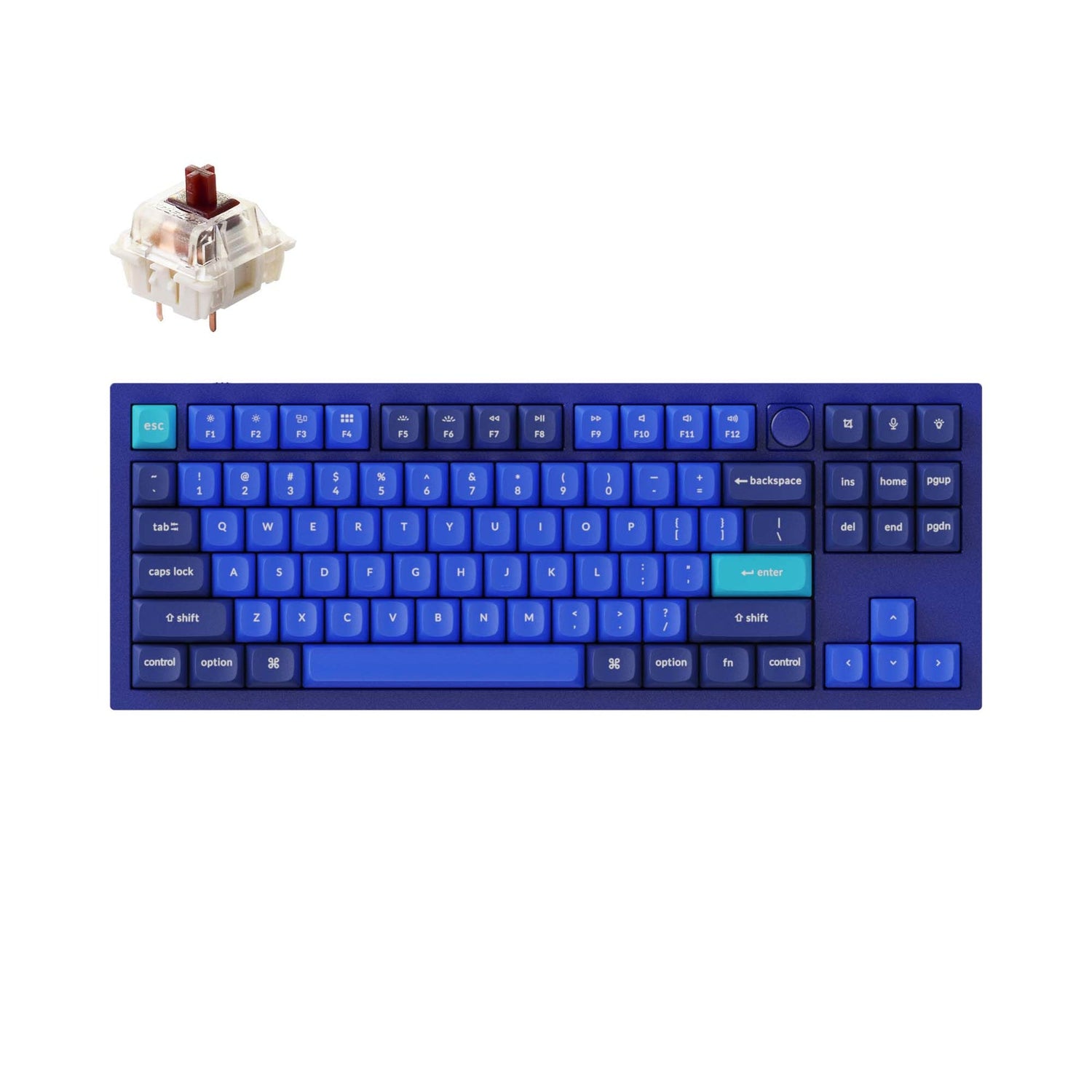

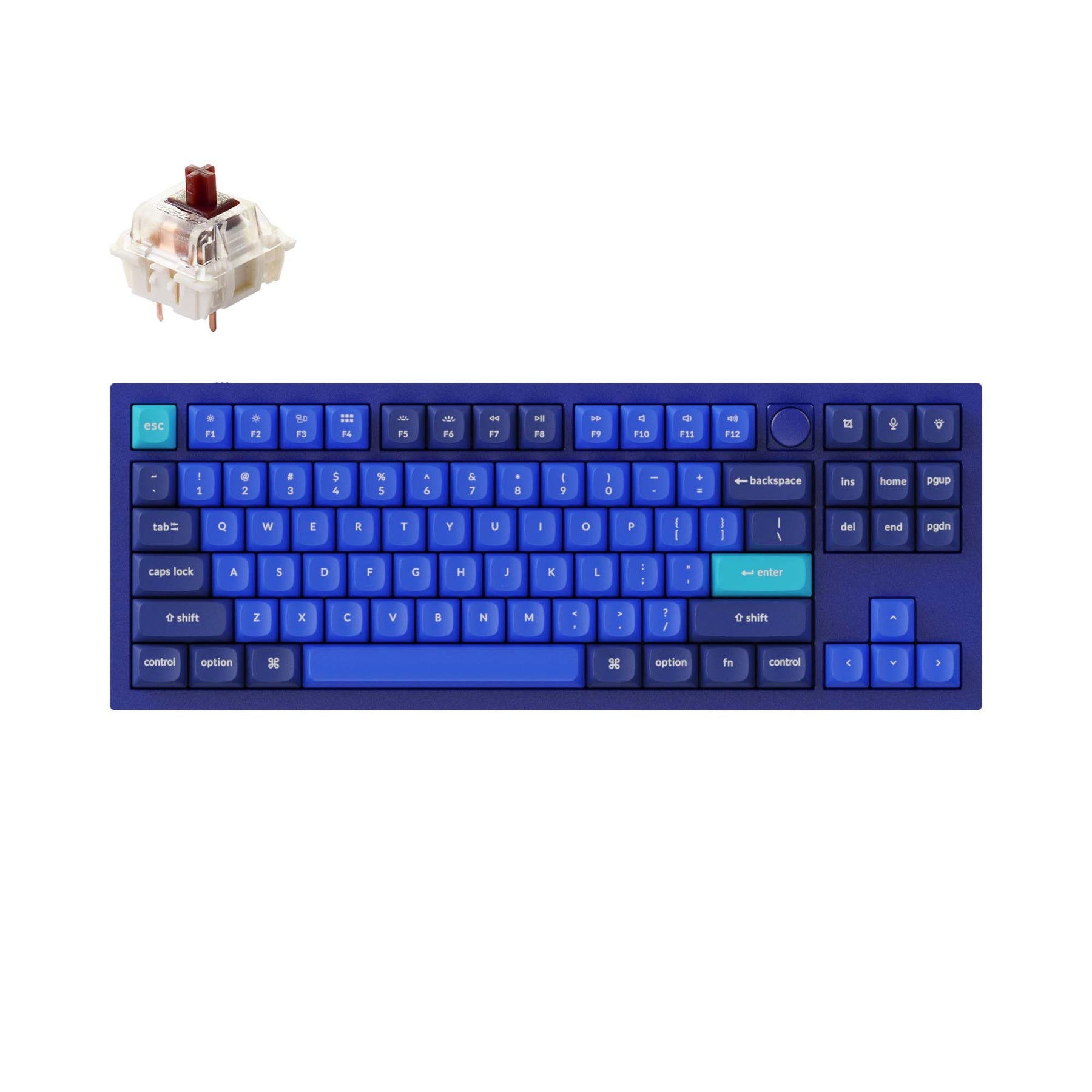

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Keychron Q3 80% TKL Custom Mechanical Keyboard

You can easily customize the Q3's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program Q3 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more. A brand new ultra-low-power Arm structure MCU which is powerful, and armed with 128K Flash will provide more flexibility for developers.

Keychron Q3 80% Custom Mechanical Keyboard QMK VIA

VIA is a keyboard keymap programming software. Using VIA, you can define every key and even write MACROS for the key combinations you want on your Q1. VIA supports macOS, Windows & Linux.

Get the Q3 keymap working on VIA

To get started, please follow the steps: download the appropriate key map JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the Q3 keymap working on VIA Since the VIA code for the Q3 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and enter the Q3 keymap.

 Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.

Q3 Knob Version Keymap JSON

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Note: The Q3's top case has sharper corners to make it much more compatible with third-party keycaps.

Keychron Q3 80% TKL Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

The Optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q3 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% Custom Mechanical Keyboard stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q3 also supports third-party stabilizers, including Cherry or Durock.

ANSI & ISO layouts.

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world.

Note: If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO keycaps. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

Keychron Q3 80% TKL Custom Mechanical Keyboard

ANSI Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard

ISO Layout

Sound Test

Keychron Q3 80% TKL Custom Mechanical Keyboard

Different Versions

Keychron Q3 80% TKL Custom Mechanical Keyboard

What's in the box?

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard

Specs

Width137 mm
Length365.1 mm
Front Height19.7 mm  (without keycaps)
Back Height32.6 mm (without keycaps)
Feet Height2.4 mm
Angle5.2°
Weight2000 g ± 10g (the fully assembled weight)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000Hz
KeycapsDouble-shot ABS keycaps, not shine-through (fully assembled version)
SwitchesGateron G Pro (fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Section
Drop element here!
Keychron Q3 User Guide

Learn more about the Keychron Q3 such as the Q3 shortcuts, assembling the Q3, factory reset, and more in the FAQ section.
