Keychron Q10 Pro Acoustic Upgrade Kit
Keychron Q10 Pro Acoustic Upgrade Kit - Keychron Q10 Pro / Poron & XPE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Keychron Q10 Pro Acoustic Upgrade Kit
Keychron Q10 Pro Acoustic Upgrade Kit
Want to optimize your Q10 Pro keyboard typing experience? Try this upgrade kit! Made of Poron & XPE material, the kit includes sound-absorbing foam, PE foam, and bottom frame acoustic foam, all to further modify your keyboard for an improved and enhanced typing experience.
Foam modding the Q10 Pro with this acoustic upgrade kit can further eliminate the hollowness of the keyboard and reduces the resonance on each keystroke.
How to modify your Q10 Pro with this kit?
The entire keyboard needs to be taken apart for kit installation. You can refer to this video for disassembling guide first and then watch the following clip for kit installation.
00:00: Apply the PE foam on the keyboard PCB.
00:29: Place the sound absorbing foam between the plate and the PCB.
00:50: Place the acoustic foam on the bottom case.
Specs

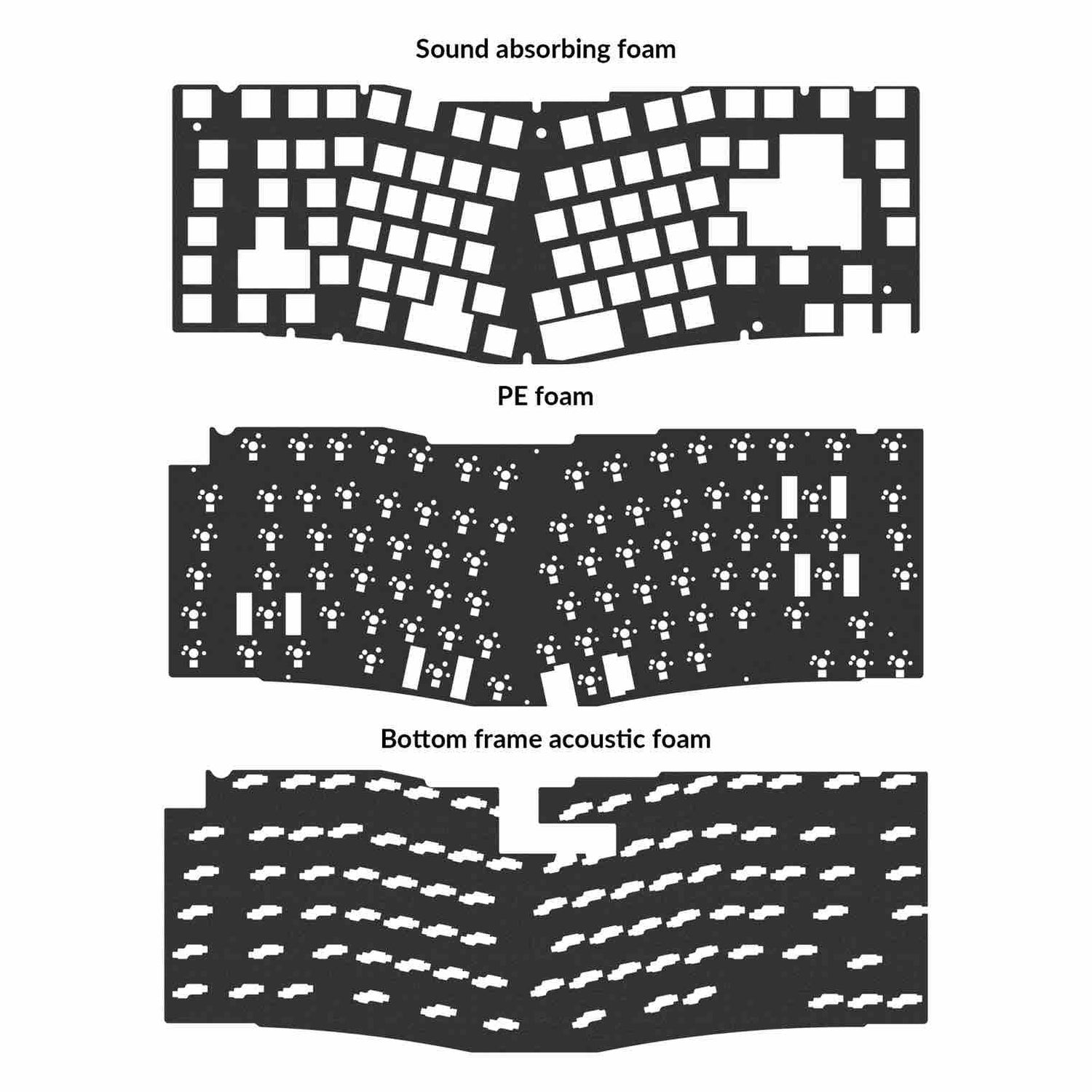

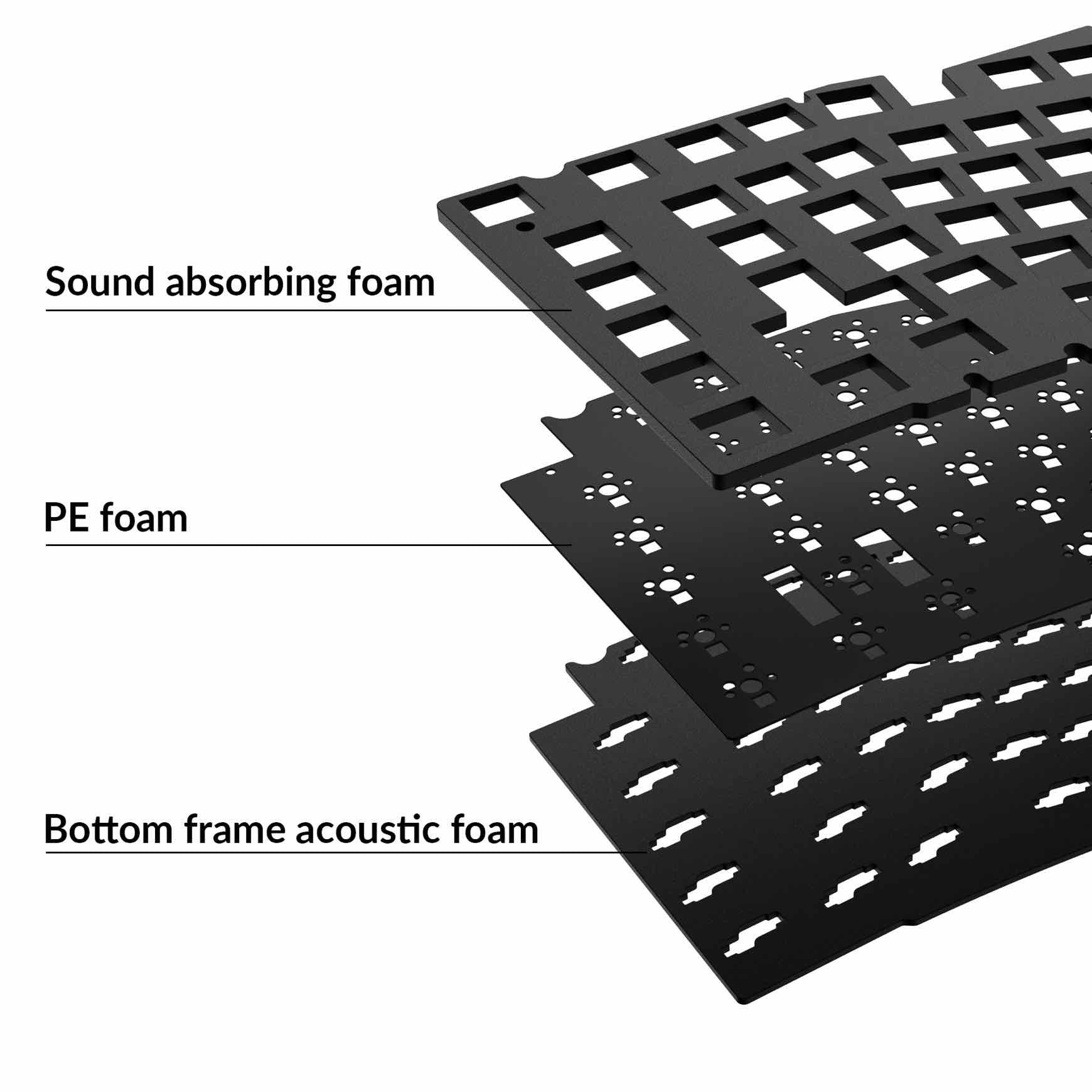

| Package Contents | Material | Thickness | Size | Compatible keyboard |
|---|---|---|---|---|
| 1x Sound absorbing foam | Poron | 3.5 mm | 369.5*138.46 mm | Keychron Q10 Pro ANSI layout |
| 1x PE foam | XPE | 0.5 mm | 369.5*136.85 mm | Keychron Q10 Pro ANSI layout |
| 1x Bottom frame acoustic foam | Poron | 2.5 mm | 369.5*136.00 mm | Keychron Q10 Pro ANSI layout |
| 4x Gasket |
*XPE foam is a new high-grade PE material with better mechanical and physical properties in stability, durability, and insulation effects.
