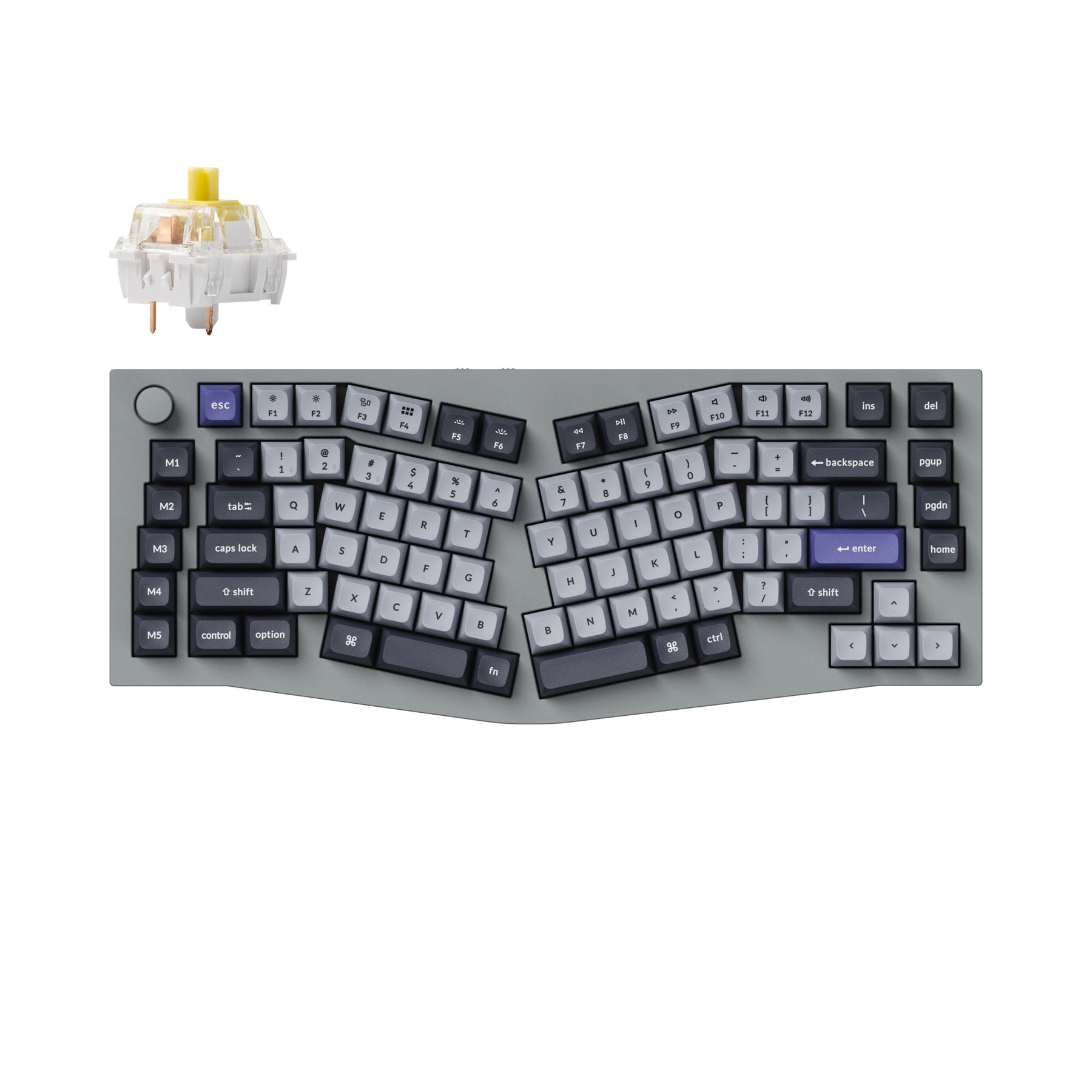

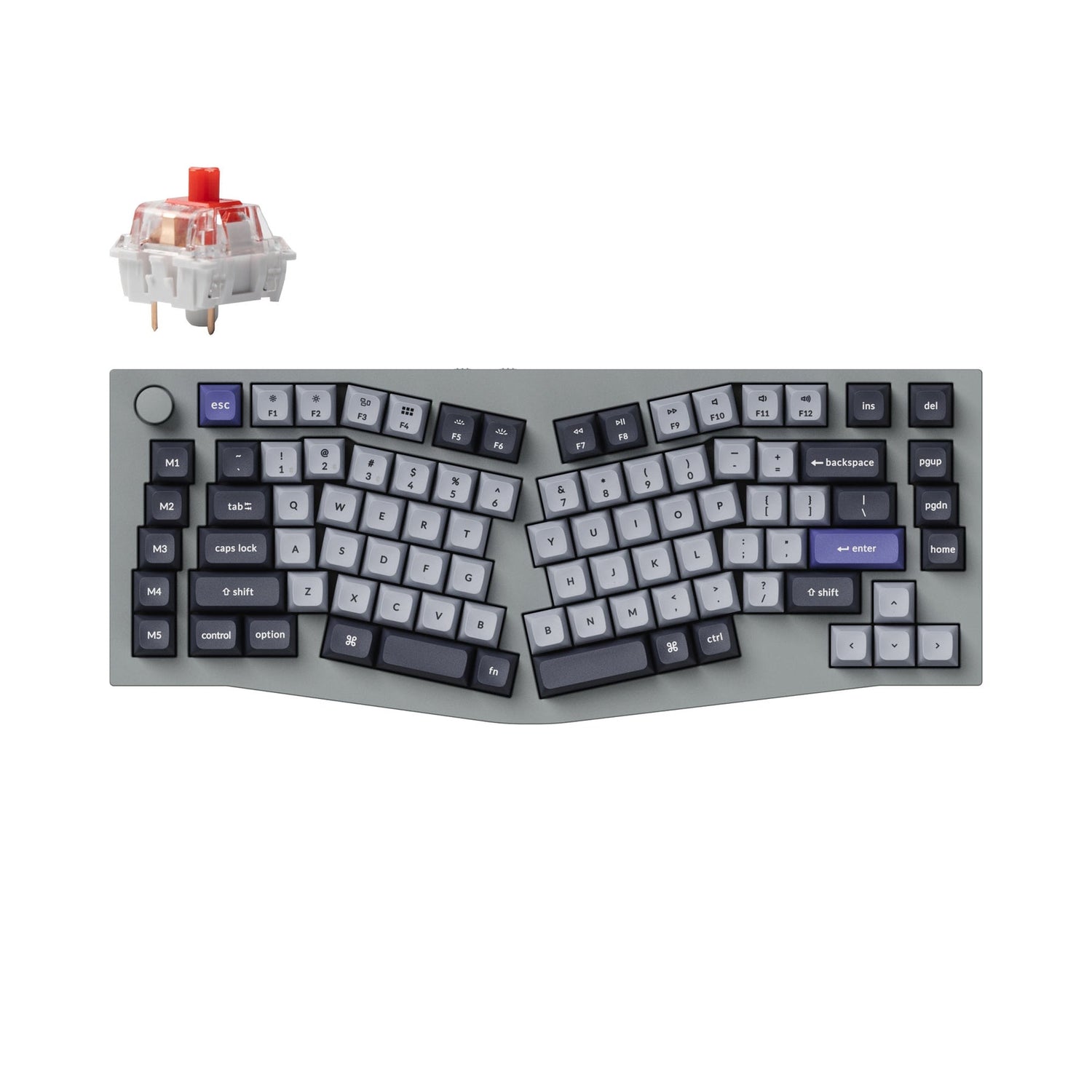

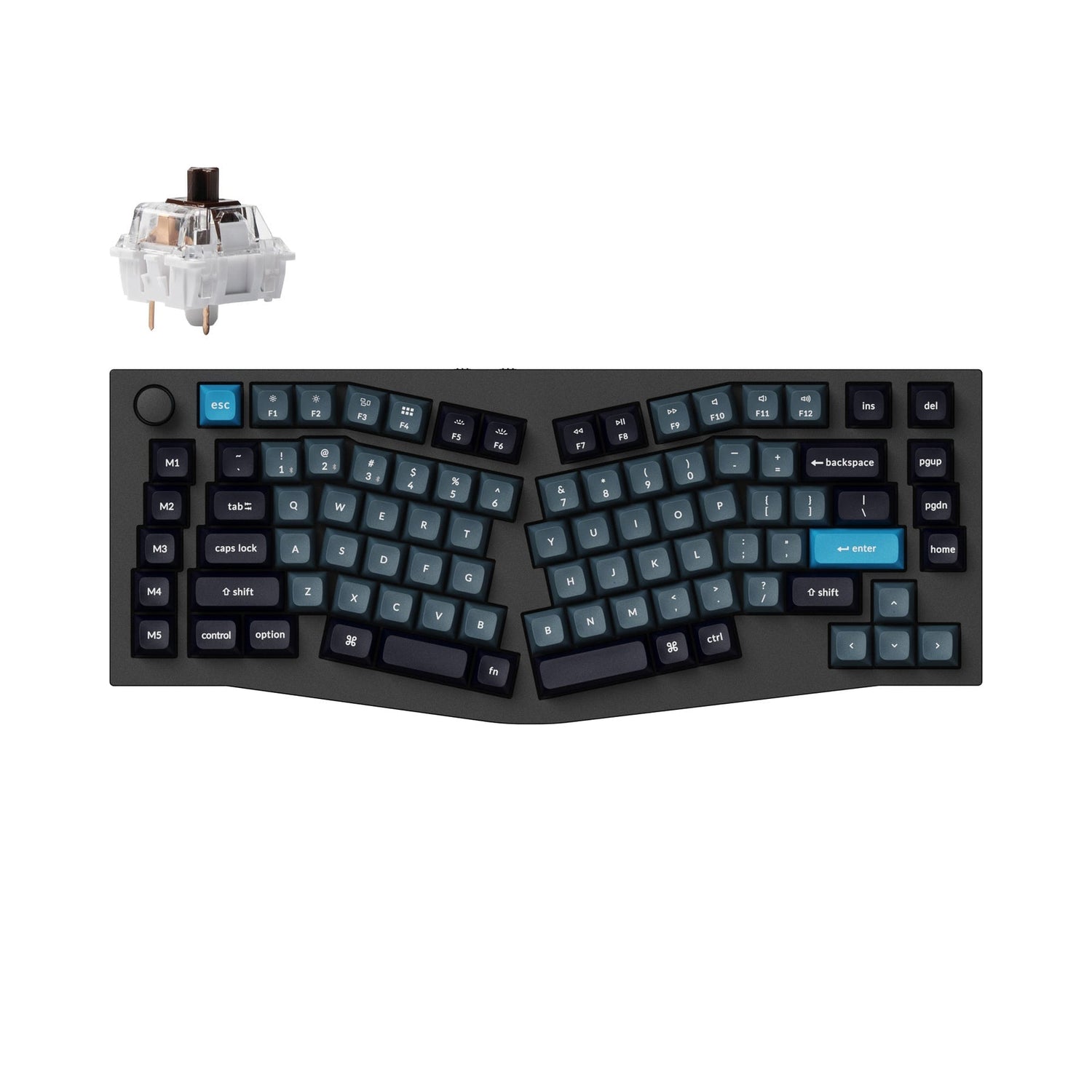

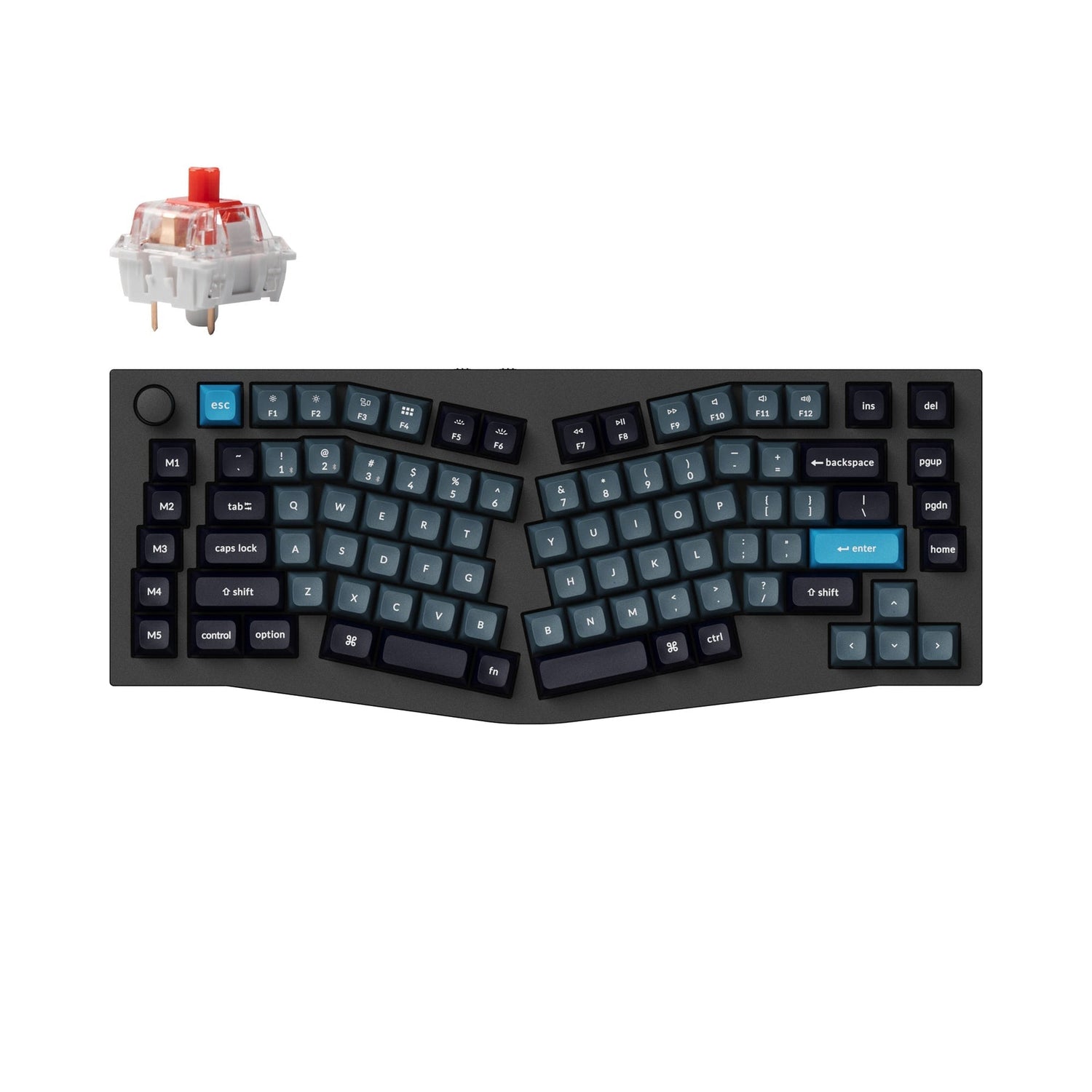

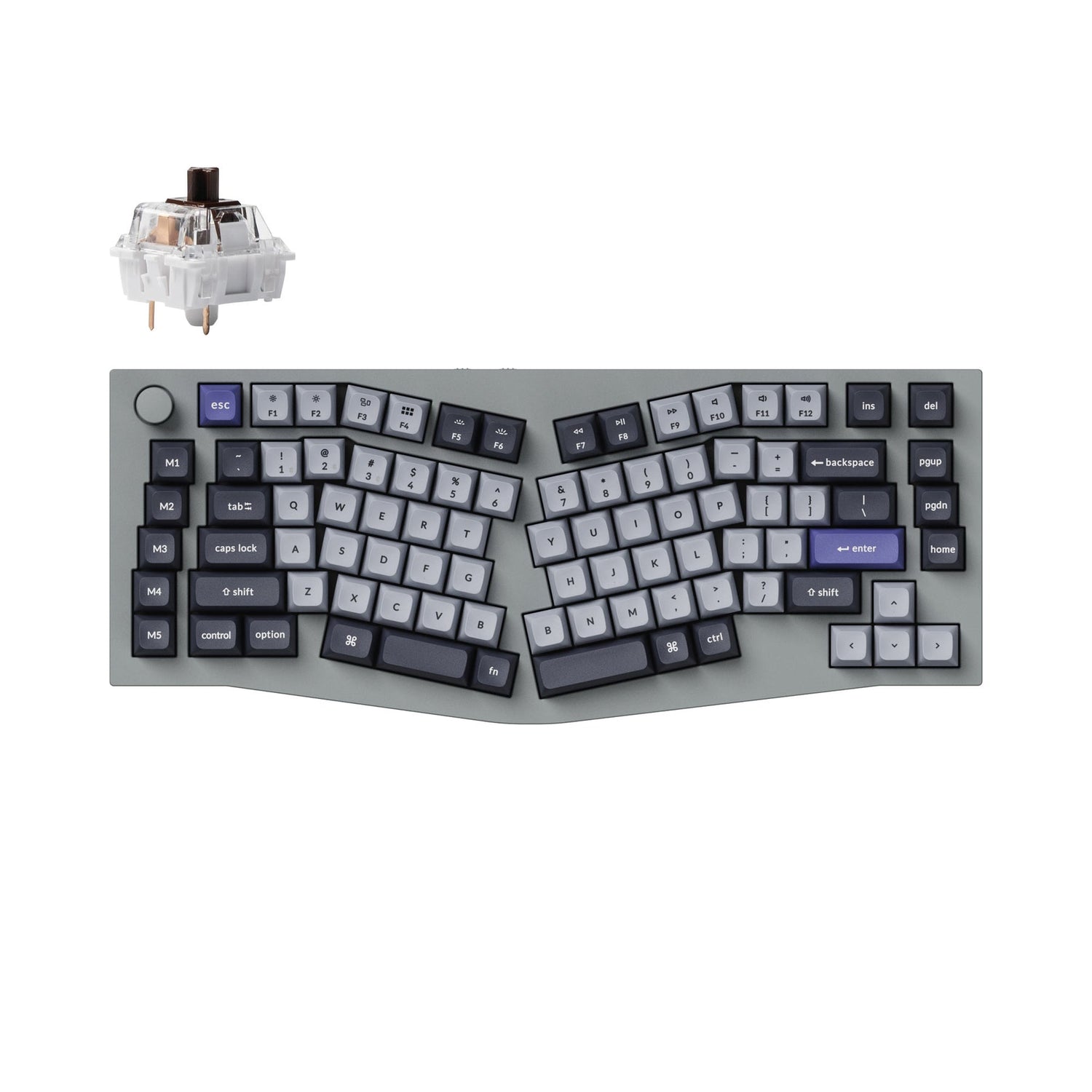

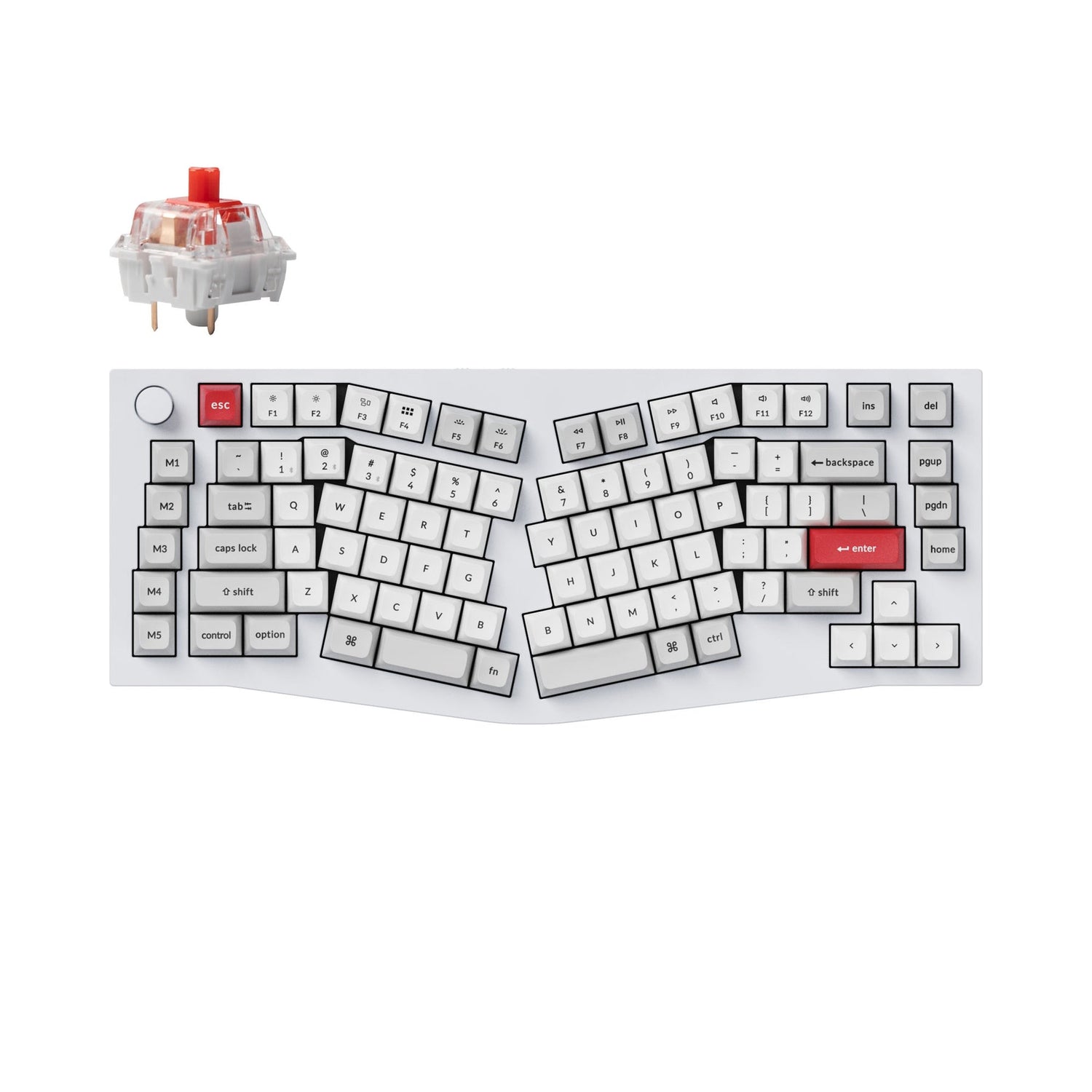

Keychron Q10 Pro (ANSI Alice Layout) QMK/VIA Wireless Custom Mechanical Keyboard

SKU: Q10P-M1
£194.00

Type
Color
Switches

The Fully Assembled version includes:
  • The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

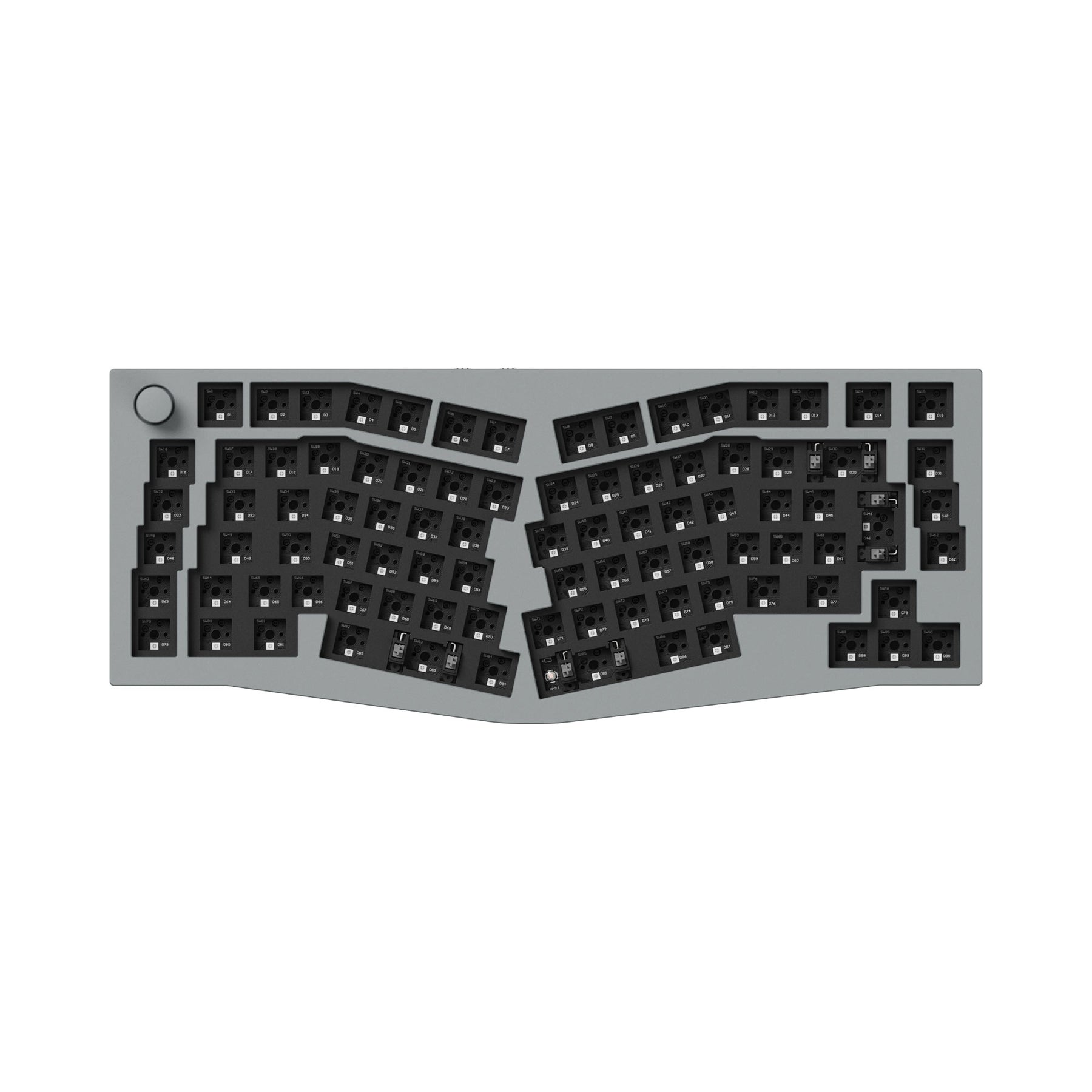

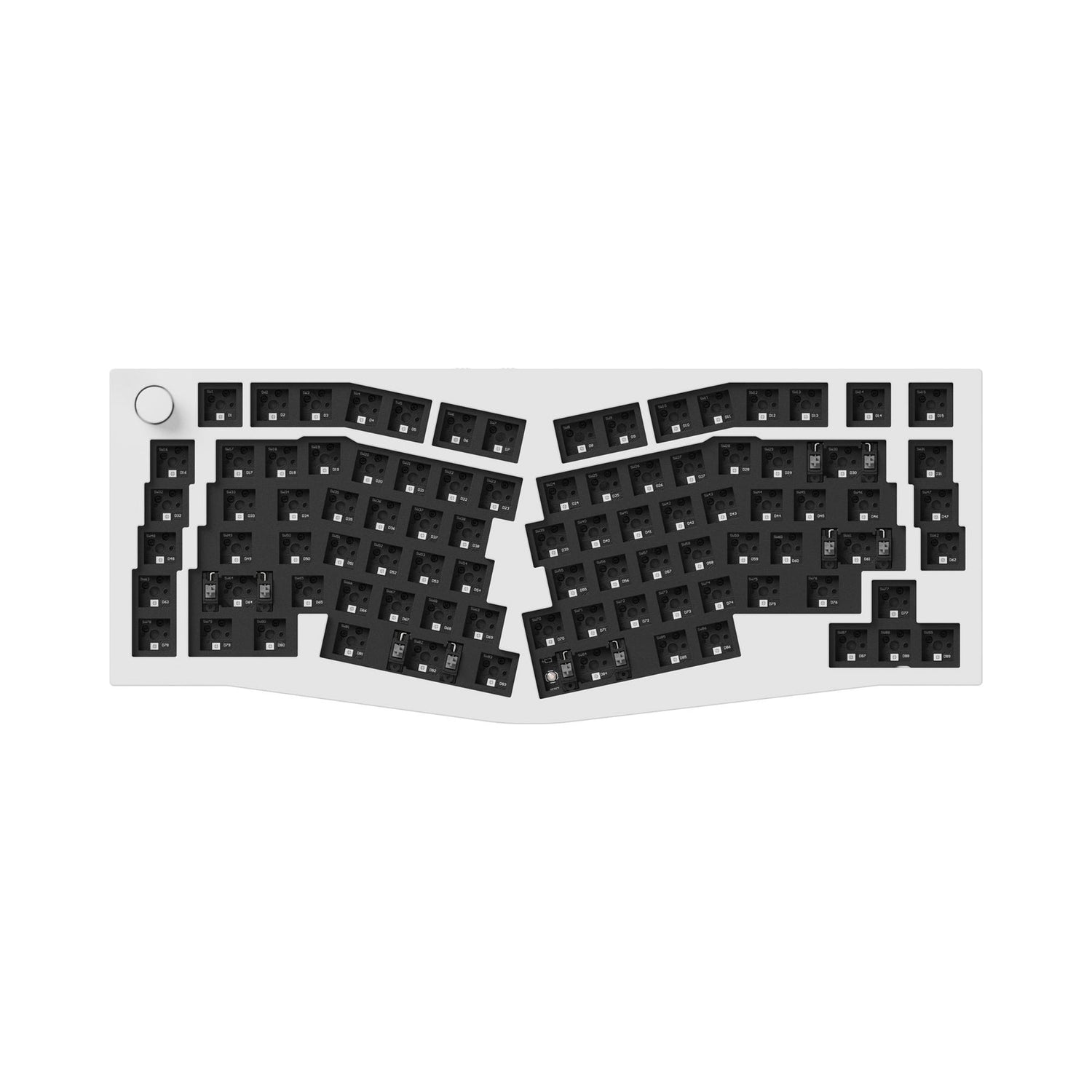

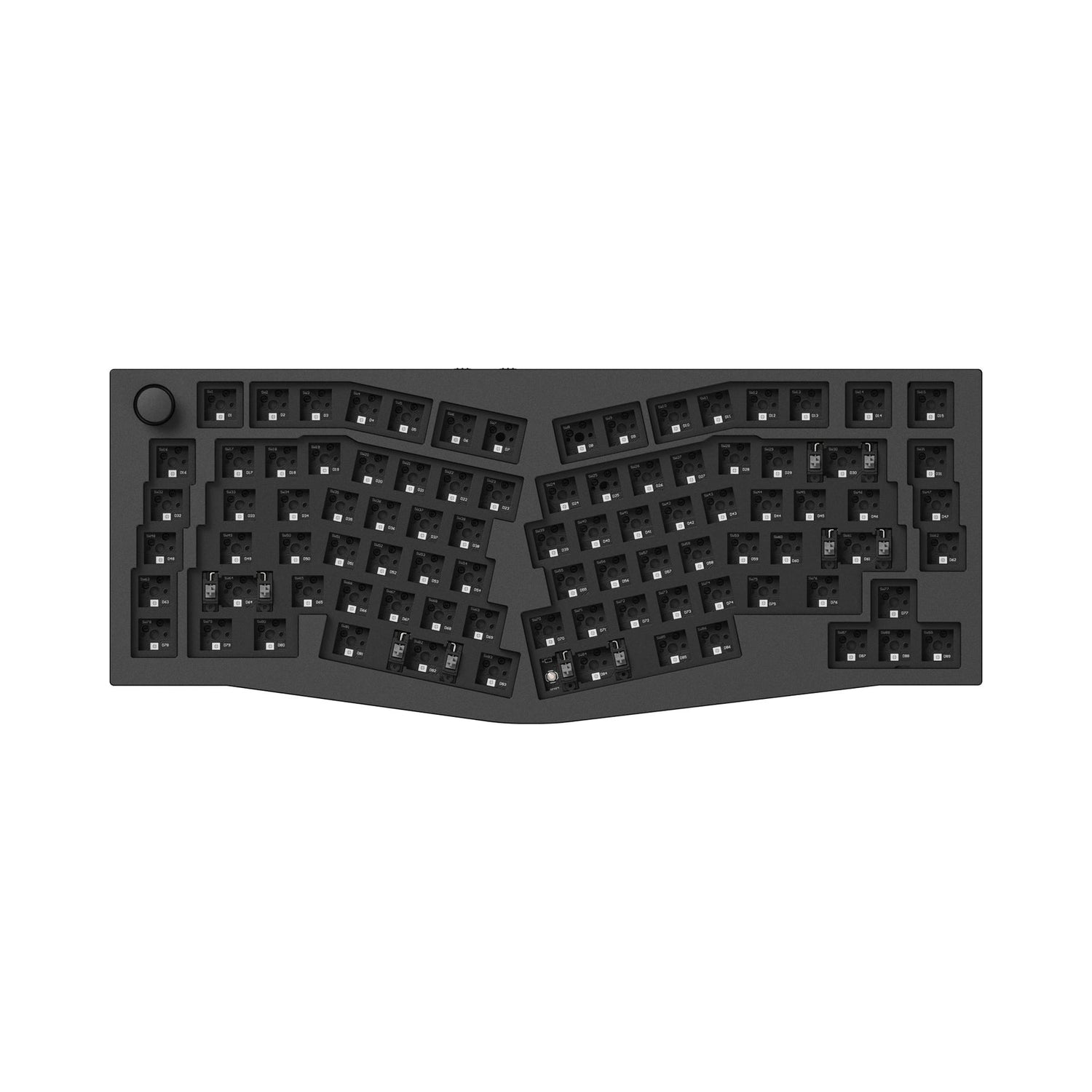

The Barebone version does not include the keycaps and switches.
No discount codes can be used for Q10 Pro.

Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

Keychron Q10 Pro

Meet the Keychron Q10 Pro, the full-metal QMK/VIA wireless custom mechanical keyboard with a 75% Alice layout, along with many premium designs, including double-gasket design, PBT keycaps, screw-in stabs, etc., it will deliver you an unprecedentedly ergonomic typing experience!

Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard
Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard
Features of Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

Choose the keycaps, switches and more accessories for your Q10 Pro

Wireless and Wired

An excellent solution for multitasking. You can connect the Q10 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.

Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q10 Pro.

Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Structure of Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard
q10-pro-structure-mobile__PID:b94d342c-61d7-4fe5-83e3-38ea435c657b

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Keychron Q1 75% Custom Mechanical Keyboard
Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.

Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

KSA Double-Shot PBT Keycaps

To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.

KSA Double-Shot PBT Keycaps

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q10 Pro comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Q10 Pro wireless custom keyboard suitable for all device
launcher

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program with QMK & LauncherClick here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard

Hot-swappable.

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q10 Pro with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

South-facing RGB LED Lights.

Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

Keychron K Pro Mechanical Switch

By optimizing the switch mold, the Q10 Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron K pro Switch Features
PCB Stabilizers

PCB Stabilizers

No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.

Looking for ISO Layout?

The Q3 Pro ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout, and the “Barebone ISO Knob" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, 🇭🇺Hungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.

Keychron Q1 Pro 75% Layout Wireless Custom Mechanical Keyboard ISO Layout

What's in the box?

Package list of Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard
Package list of Keychron Q10 Pro QMK/VIA 75% Layout Wireless Custom Mechanical Keyboard Barebone version

Specs

Width156.85 mm
Length385.31 mm
Front Height20.30 mm  (without keycaps)
Back Height31.82 mm (without keycaps)
Height incl. keycap (front)32.67 mm
Height incl. keycap (rear)47.95 mm
Feet Height2 mm
Angle
Weight2096 ± 10 g (Fully Assembled version)
Body MaterialFull CNC machined aluminum
Plate MaterialPC
KeycapKSA double-shot PBT keycaps, not shine-through (Fully Assembled version)
SwitchKeychron K Pro (Fully Assembled version)
StabilizerScrew-in PCB stabilizer
BacklightSouth-facing RGB LED
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Polling Rate1000 Hz (wired) / 90 Hz (wireless)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Operating Environment-10 to 50℃
Battery4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off)Up to 300 hours (Lab test result may vary by actual use)
BT Working Time (RGB)Up to 100 hours (Lowest brightness)
Bluetooth Version5.1
Compatible SystemmacOS/Windows/Linux
ConnectivityBluetooth / Type-C wired
Bluetooth Device NameKeychron Q10 Pro
Keychron Q10 Pro User Guide

Learn more about the Keychron Q10 Pro such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Sav
Worth the value but not perfect.

My ISO barebones build:
- gateron north pole V2 stock
- stock stabillisers
- aliexpress WOB keycaps
- DOYS building block keycaps

Pros:
- case is solid/heavy
- macro keys on left side useful
- tri-mode connection
- stock stabilisers decent
- plenty of RGB modes (I don't use any)
- USB-C
- QMK/VIA
- split layout slightly better on the wrists

Cons:
- gaskets are too soft
- only two layers per mac/window mode
- mode switches feels flimsy
- no height/angle adjustment
- same price as Q13/14 pro iso barebones £177
- manual load .json in VIA
