Regular price £75.00
/
15 in stock

Type
Layout Version
Switches
The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • OSA profile ABS shine-through keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

No discount codes can be used for V4. Please drop your email on "Notify Me When Available" if the product model is out of stock.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Keychron V4
ISO Layout Collection

The V4 is a fully customizable mechanical keyboard suitable for different scenarios. It’s an entry-level custom keyboard with a mini 60% layout, QMK/VIA support, an acoustic silicone pad, and backlight shine-through keycaps to provide you with a great typing feel and endless possibilities.

Keychron V4 QMK/VIA Custom Mechanical Keyboard ISO Layout
Features of Keychron V4 QMK/VIA Custom Mechanical Keyboard

Choose the keycaps, switches and more accessories for your V4 ISO layout keyboard

Keychron V4 ISO Layout Versions

These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

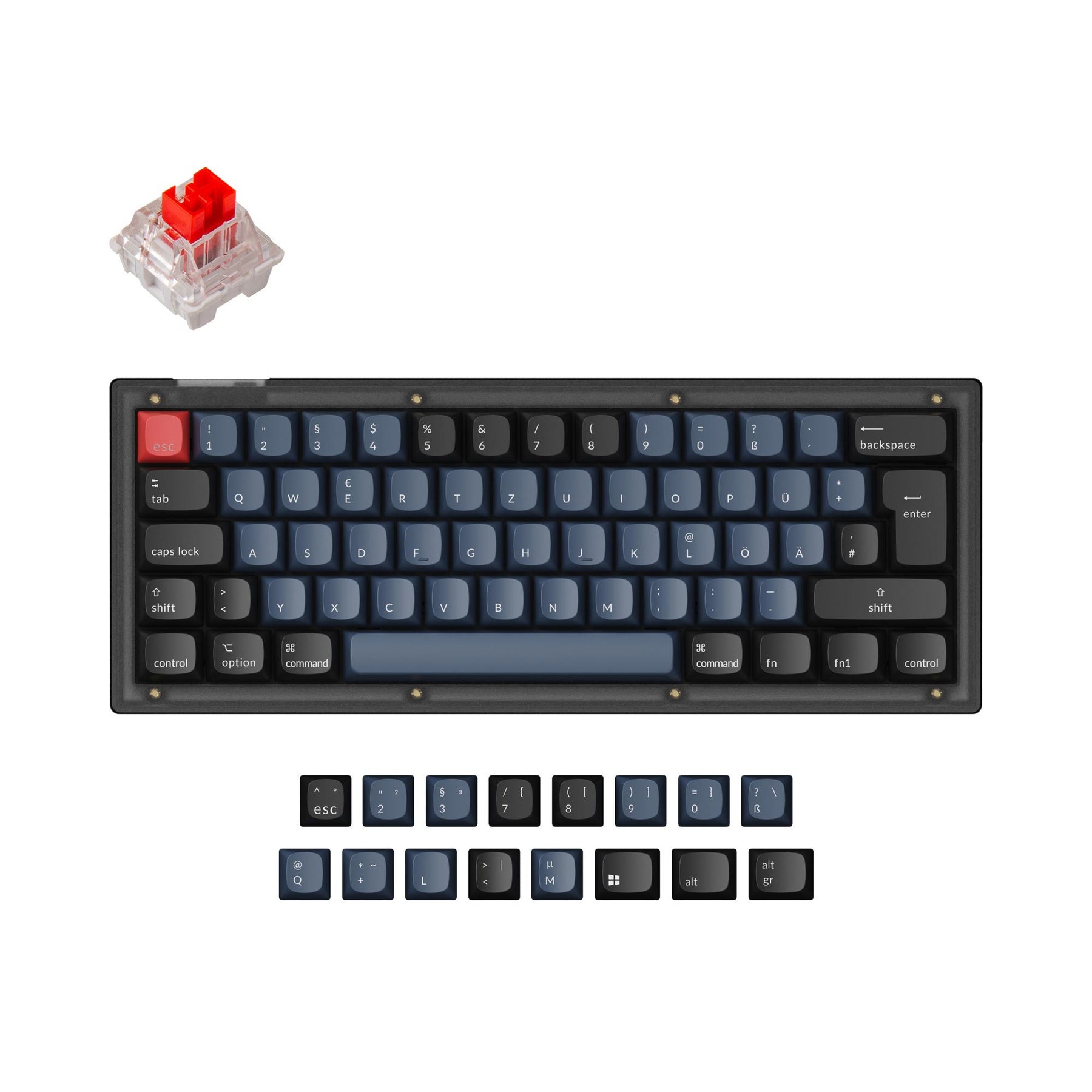

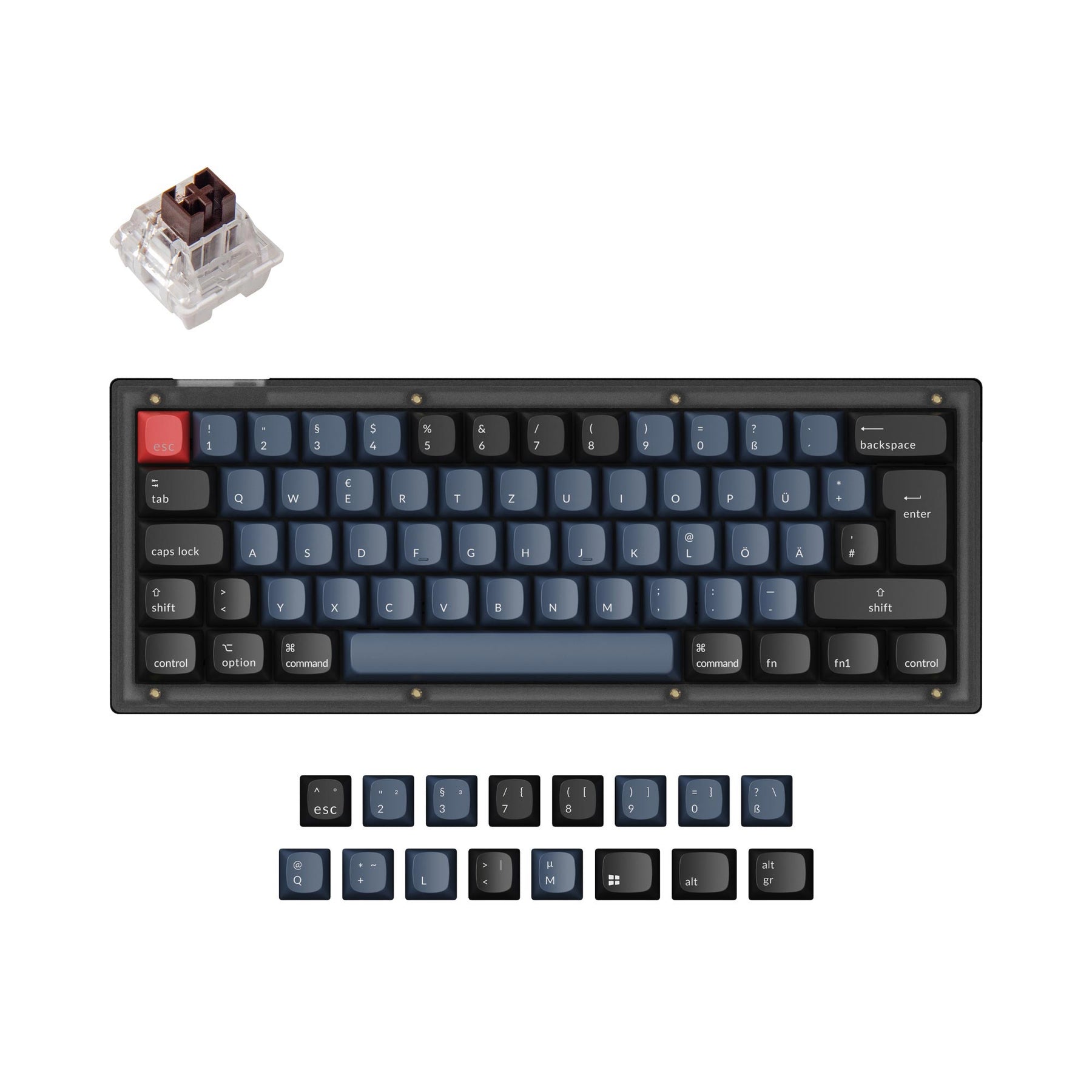

🇩🇪 German DE-ISO Layout

German ISO Layout Keychron V4 QMK/VIA Custom Mechanical Keyboard

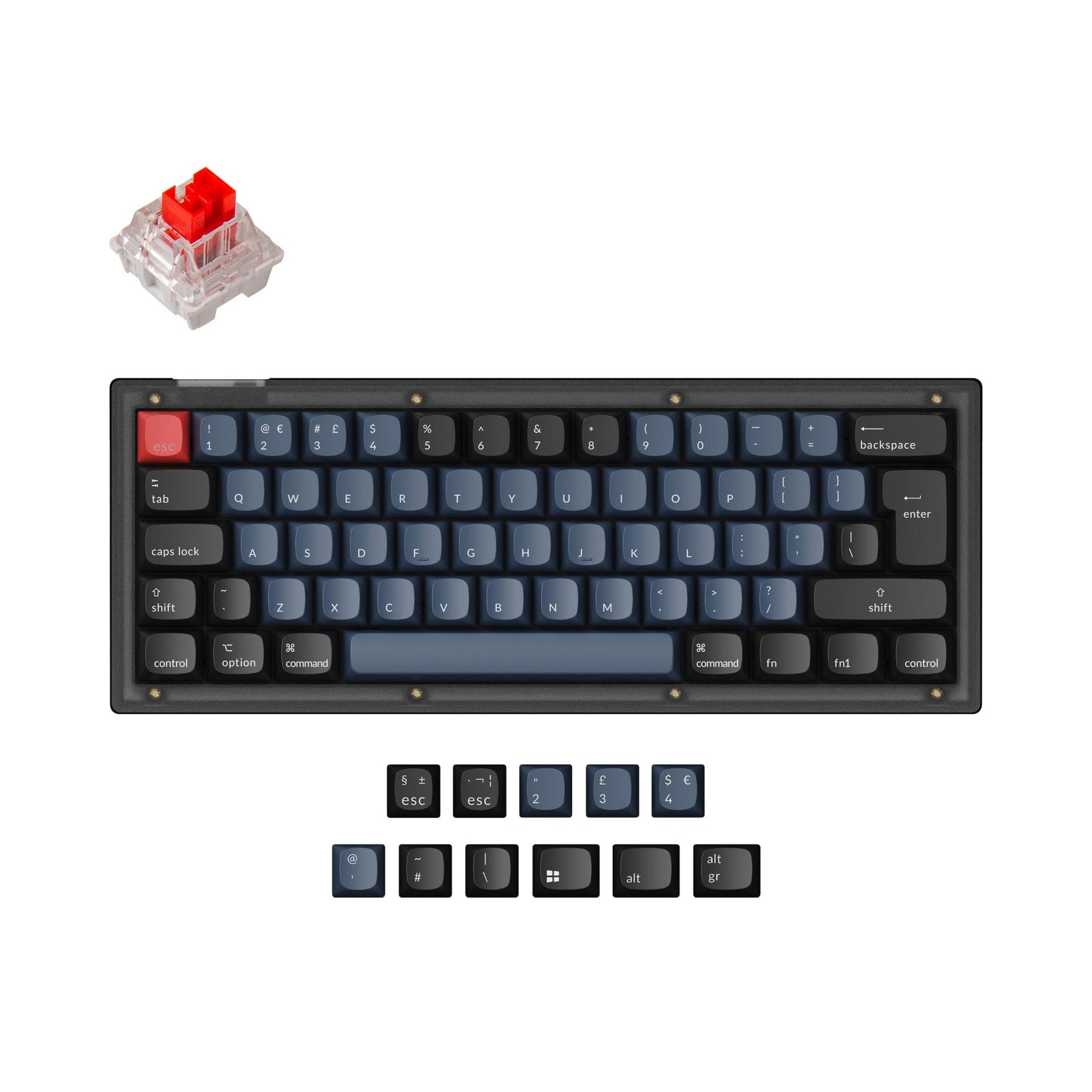

🇬🇧 UK-ISO Layout

UK-ISO Layout Keychron V4 QMK/VIA Custom Mechanical Keyboard

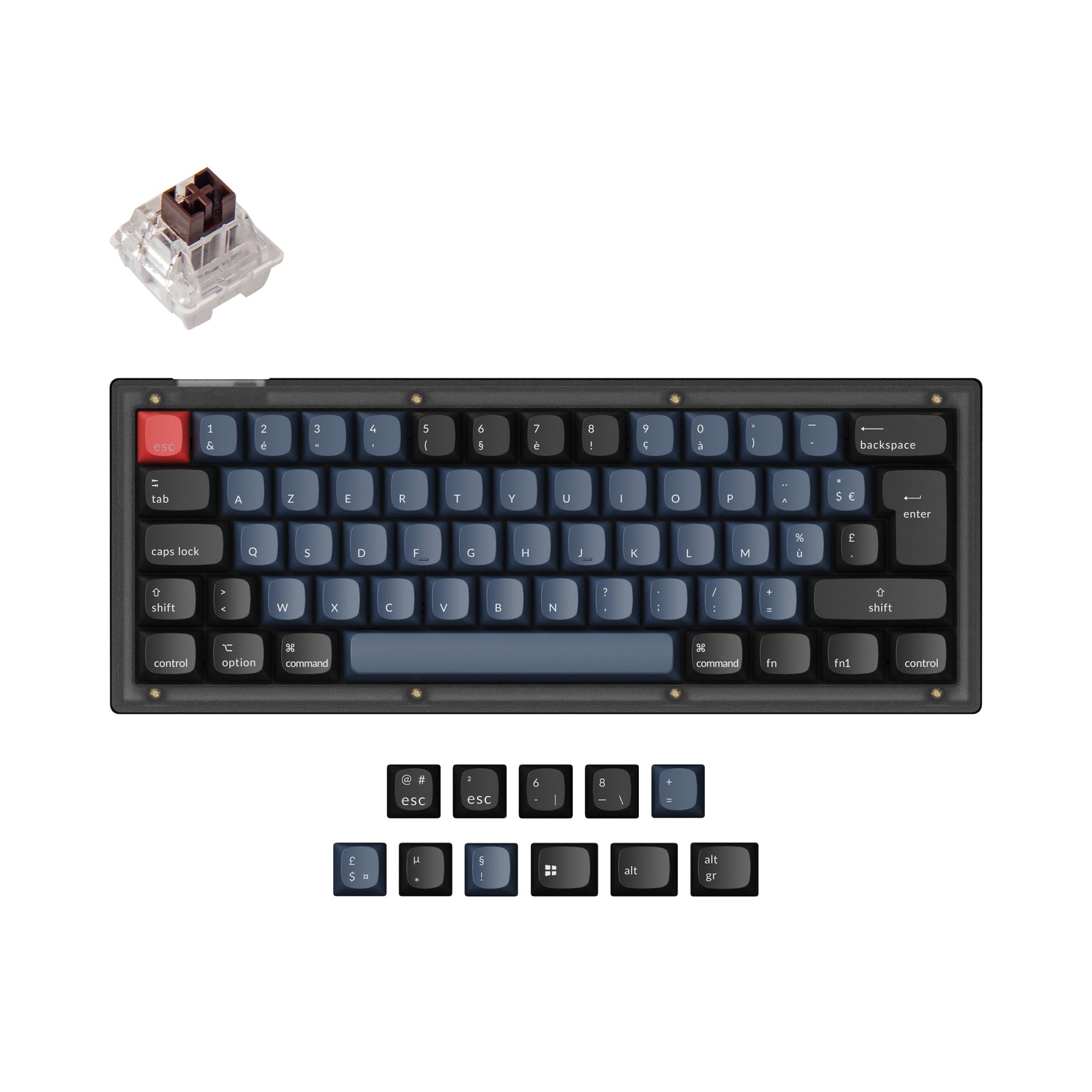

🇫🇷 FR-ISO Layout

French ISO Layout Keychron V4 QMK/VIA Custom Mechanical Keyboard

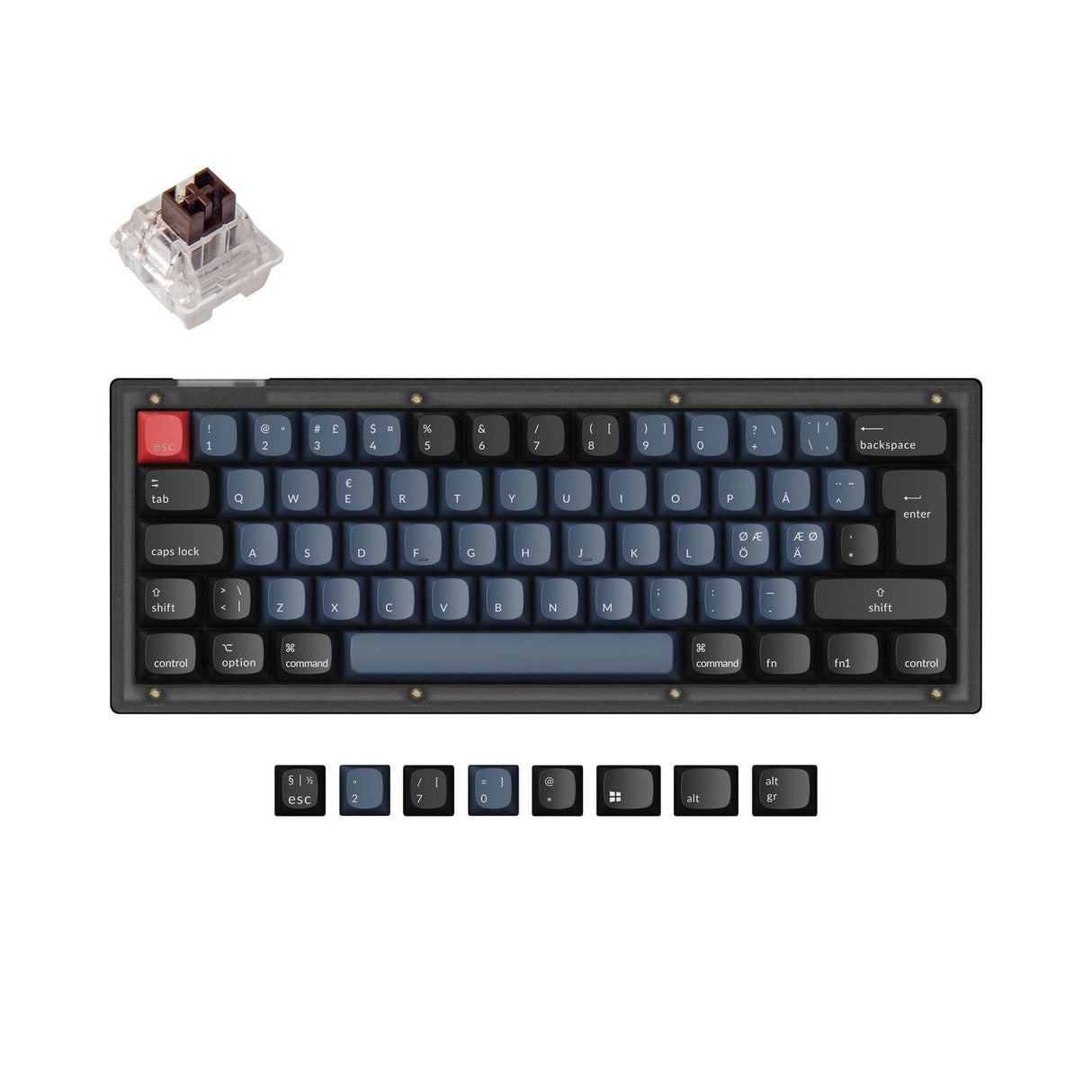

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

Nordic -ISO Layout Keychron V4 QMK/VIA Custom Mechanical Keyboard

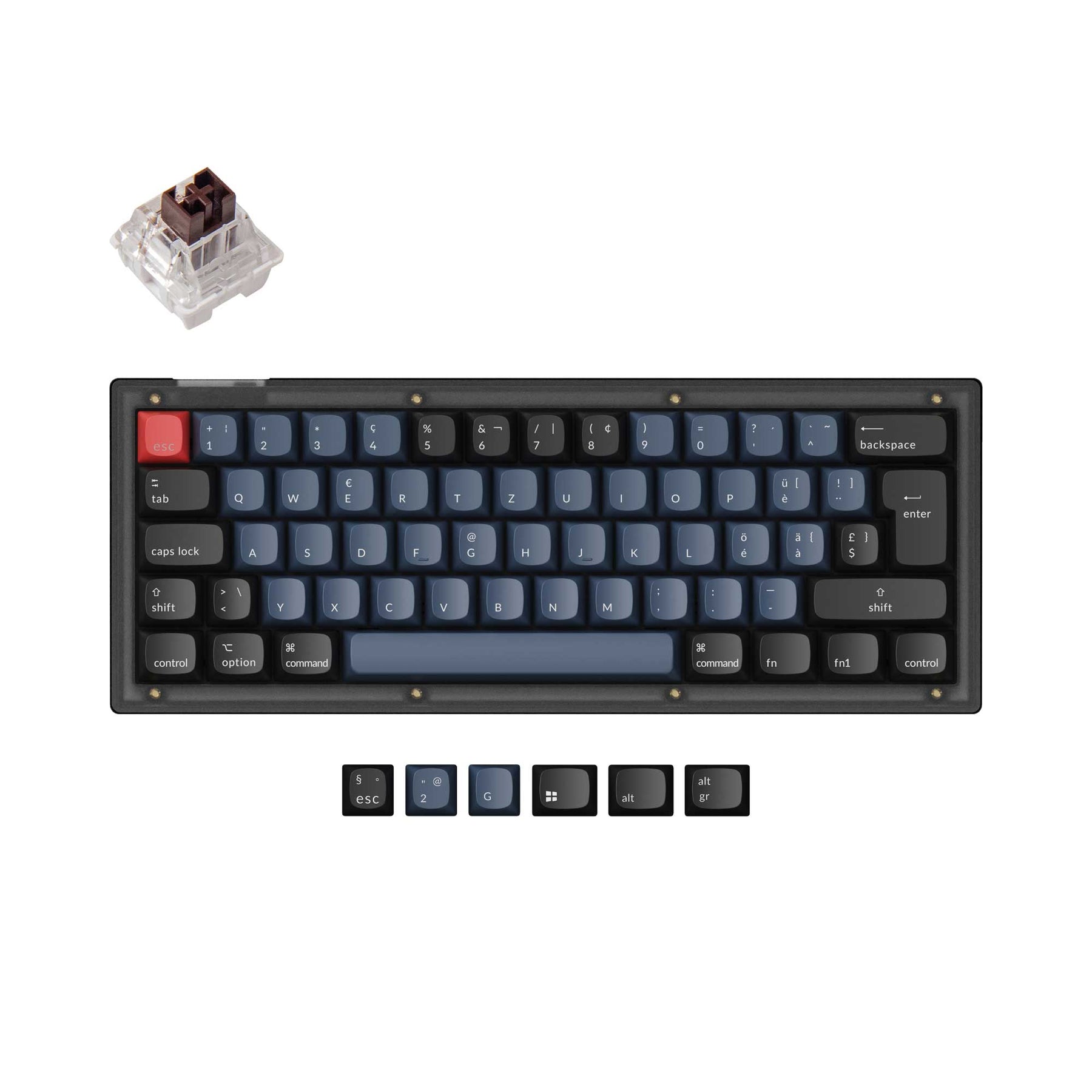

🇨🇭 Swiss-ISO Layout

Swiss-ISO Layout Keychron V4 QMK/VIA Custom Mechanical Keyboard ISO Layout

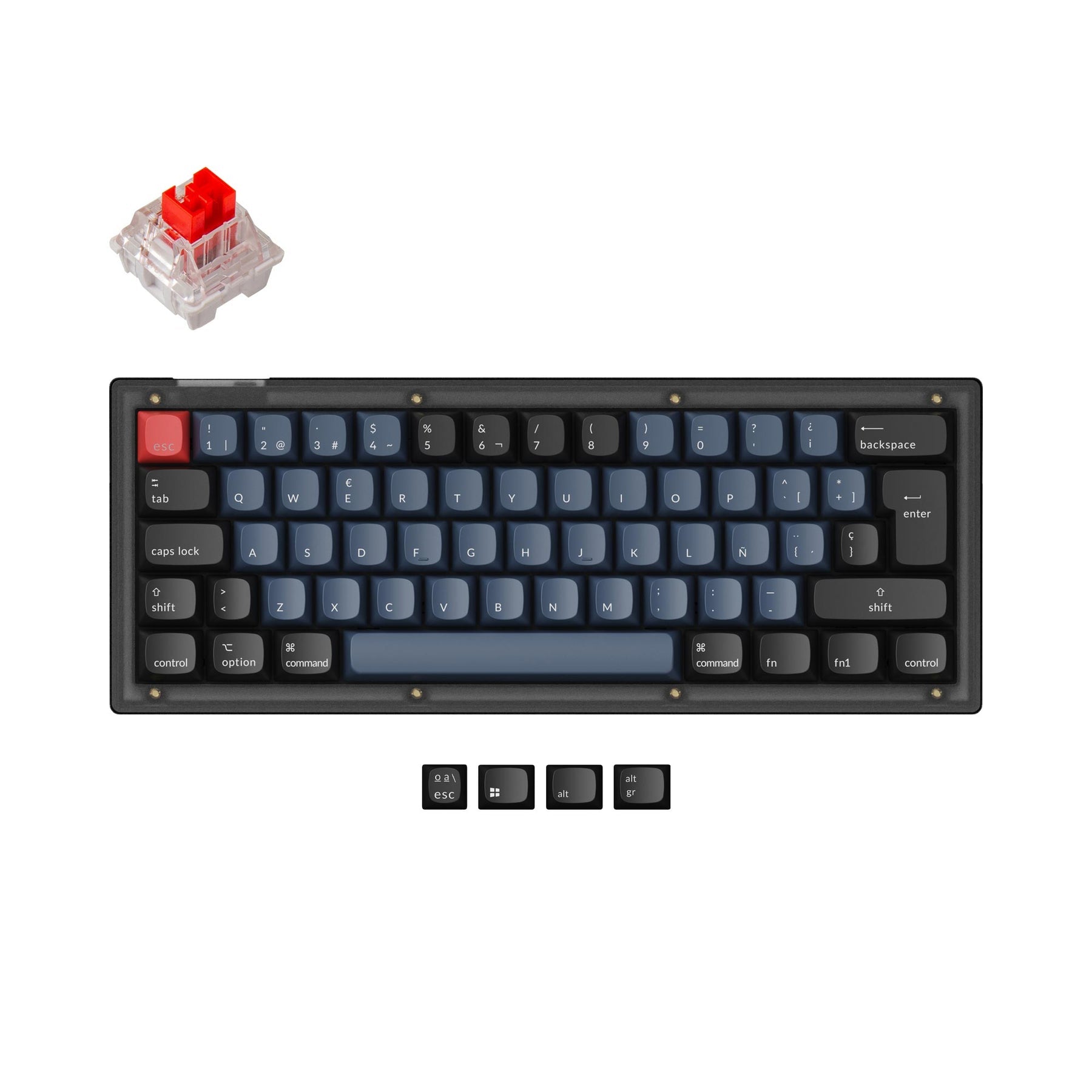

🇪🇸 ES-ISO Layout

Spanish ISO Layout Keychron V4 QMK/VIA Custom Mechanical Keyboard ISO Layout

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Keychron V4 QMK/VIA Custom Mechanical Keyboard ISO Layout
Keychron V4 QMK Custom Mechanical Keyboard ISO Layout

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile ABS Backlight Shine-Through Keycap

To further leverage your typing experience, the V4 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Keychron V4 Custom Mechanical Keyboard ISO Layout

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V4 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program V4 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.

QMK VIA screen capture of Keychron V4 Custom Mechanical Keyboard ISO Layout

Get the V4 keymap working on VIA

Since the VIA code for the V4 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V4 keymap.

To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V4 keymap working on VIA.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone ISO layout of Keychron V4 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron Gateron K Pro Switch Features
All New Screw In PCB Stabilizers Keychron V4 Custom Mechanical Keyboard

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V4 also supports third-party screw-in PCB stabilizers.

What's in the box?

Keychron V4 Custom Mechanical Keyboard ISO Layout

Specs

Width117.09 mm
Length303.85 mm
Front Height19.54 mm (without keycaps)
Back Height25.75 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 8.5° / 11°
Weight730 ± 10 g
Body MaterialABS Plastic
PlateSteel
Polling Rate1000 Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)OSA Profile ABS backlight shine-through keycaps
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
BacklightSouth-facing RGB LED
SwitchKeychron K Pro
Switch SupportHot-swappable (5 pin & 3 pin)
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
LayoutDE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO
Keychron V4 User Guide

Learn more about the Keychron V4 such as the V4 shortcuts, assembling the V4, factory reset, and more in the FAQ section.
