Q5-C1

Regular price £172.00
/
4 in stock

TYPE
COLOR
SWITCHES

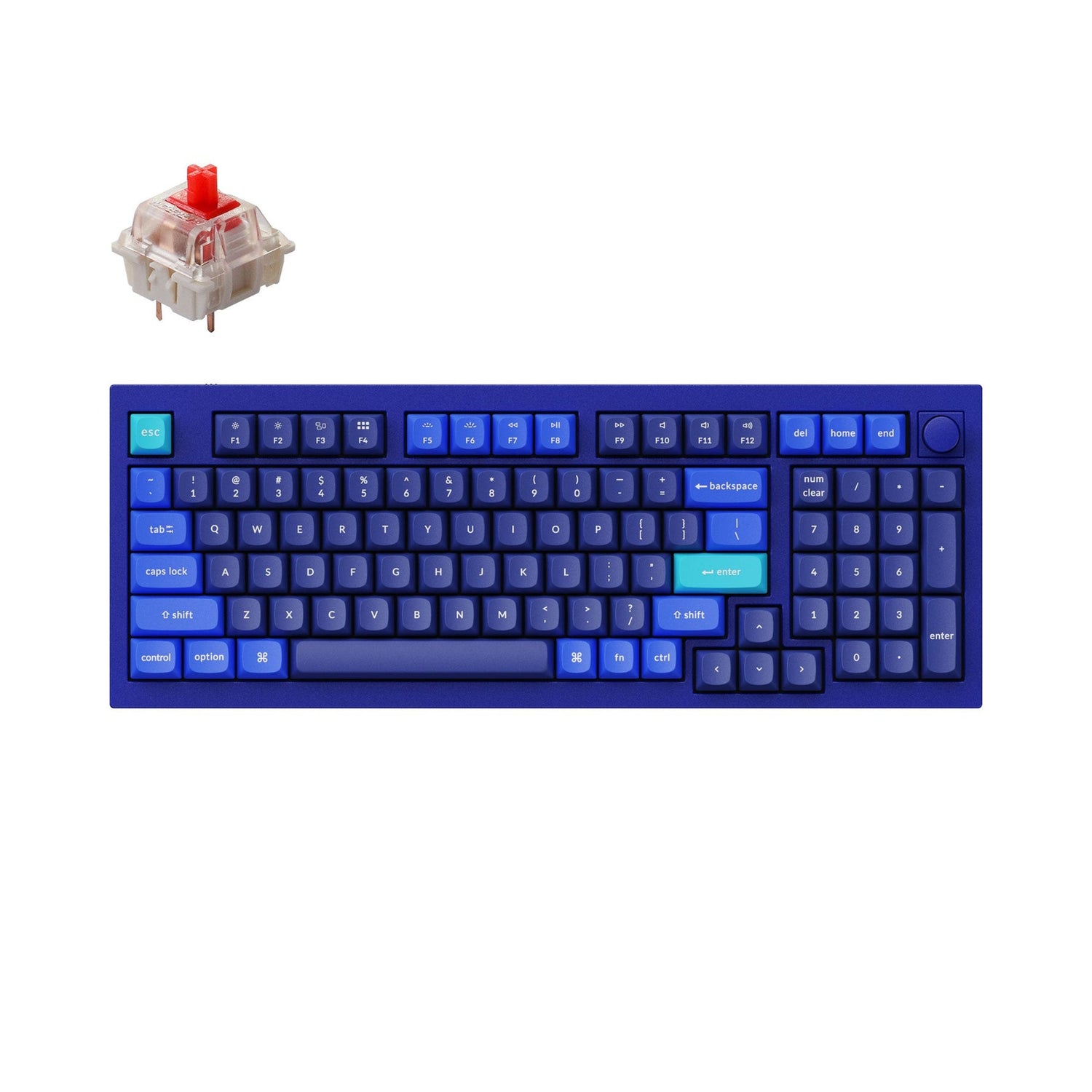

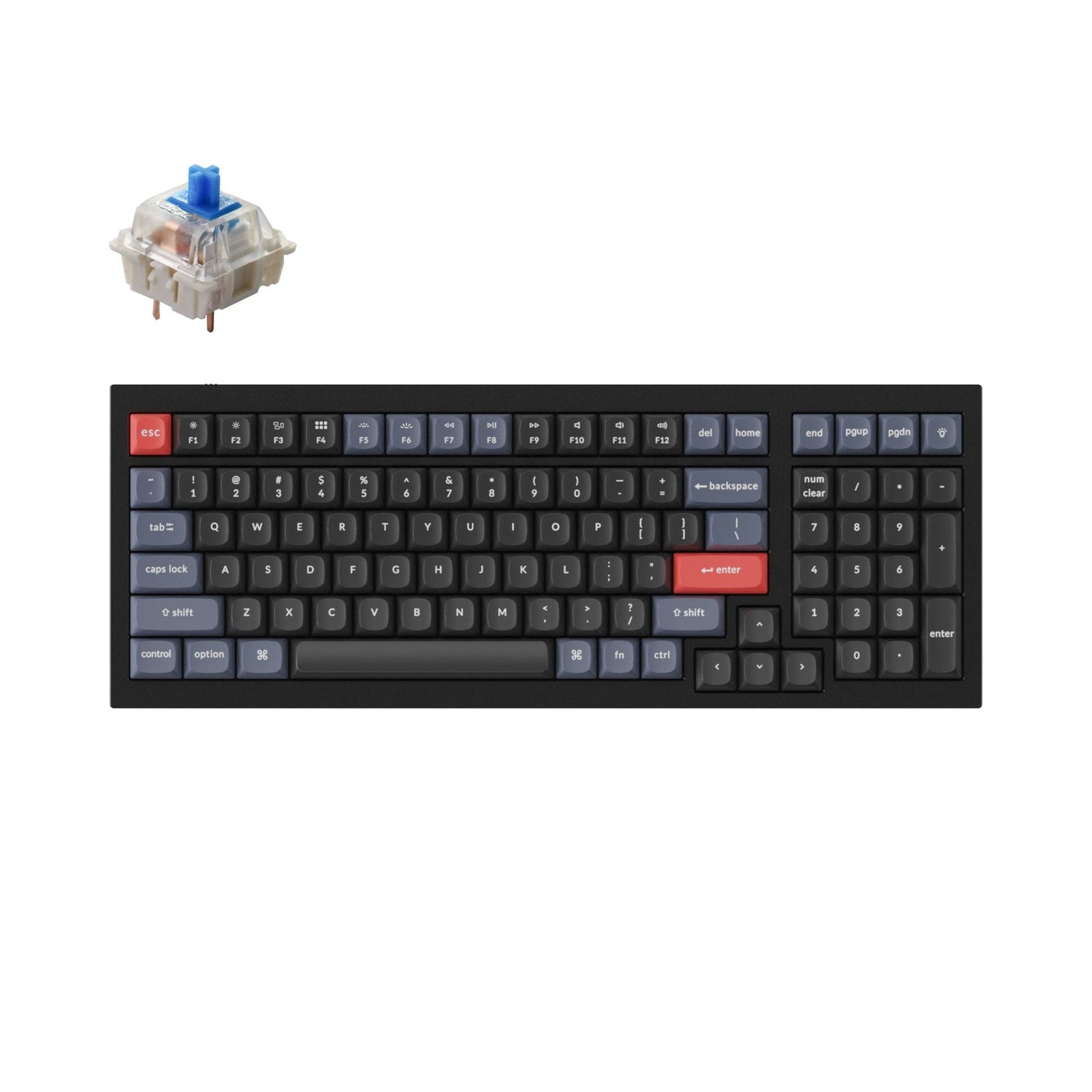

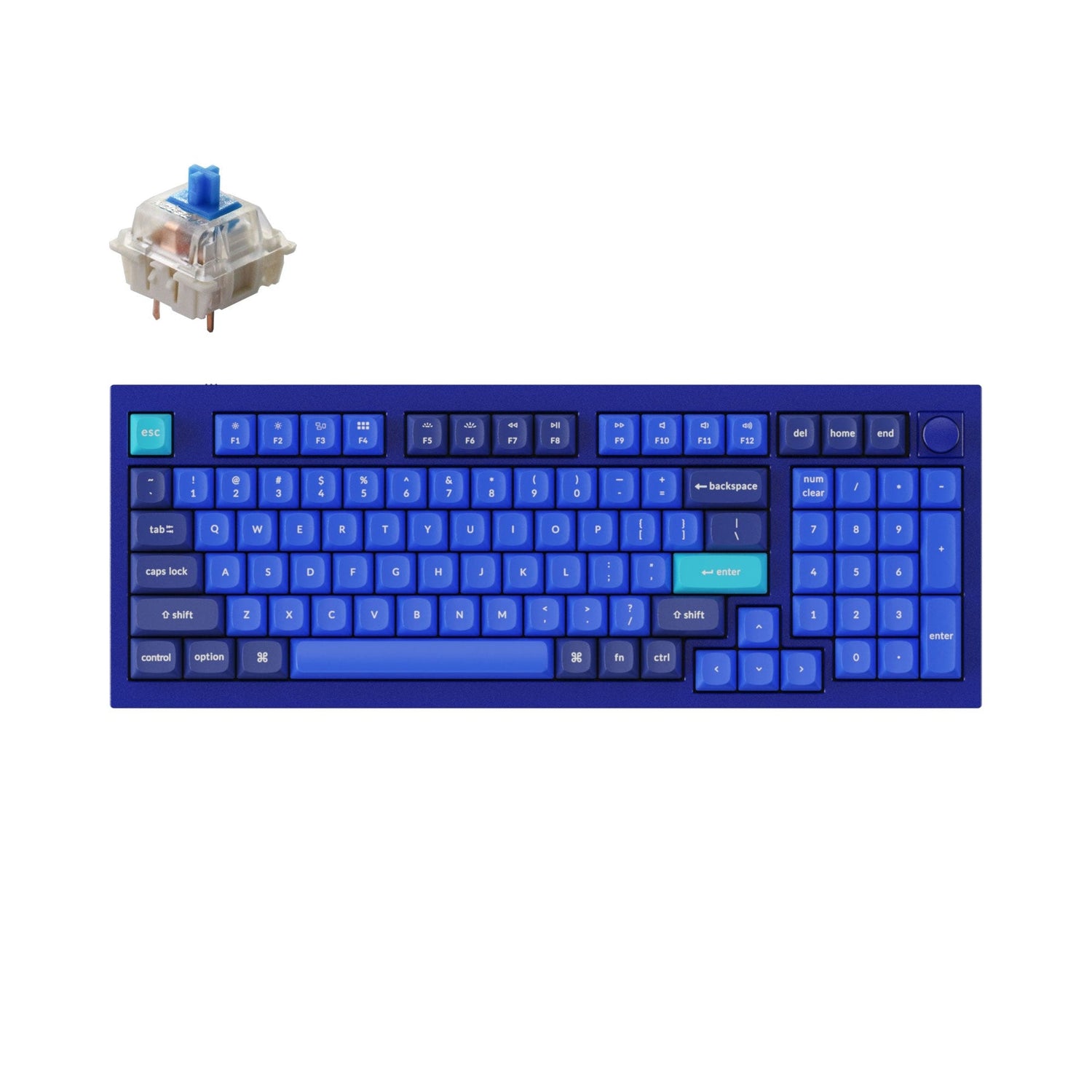

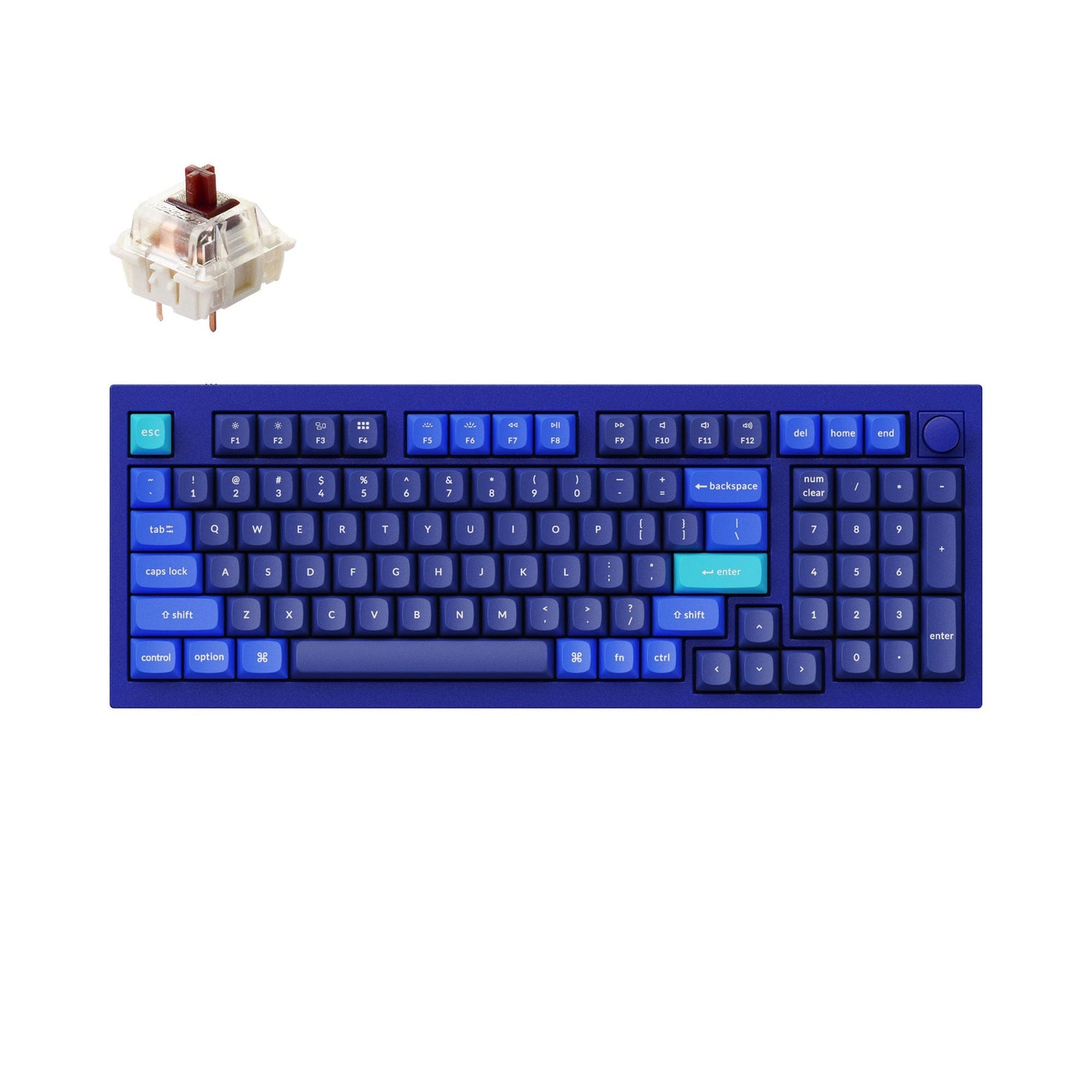

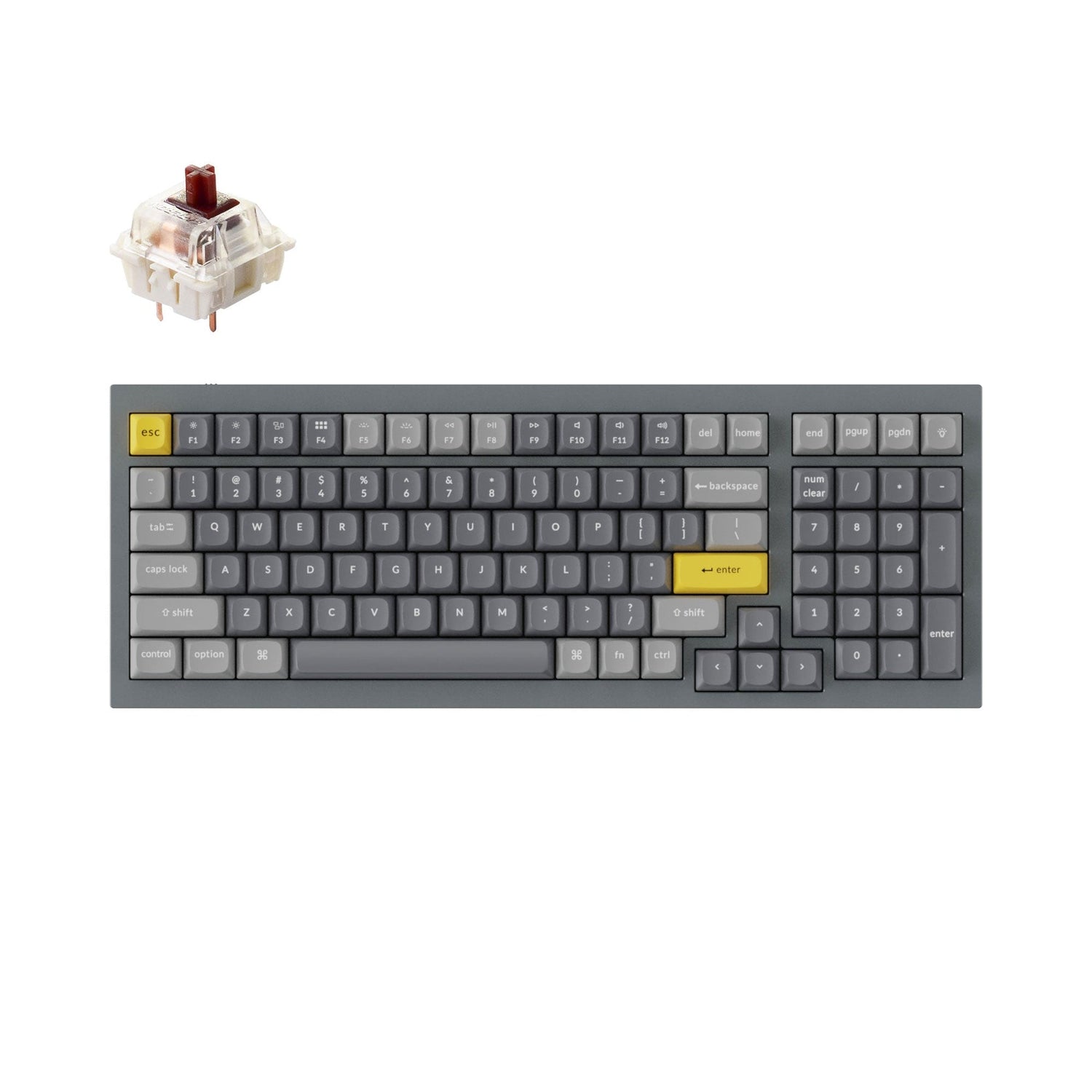

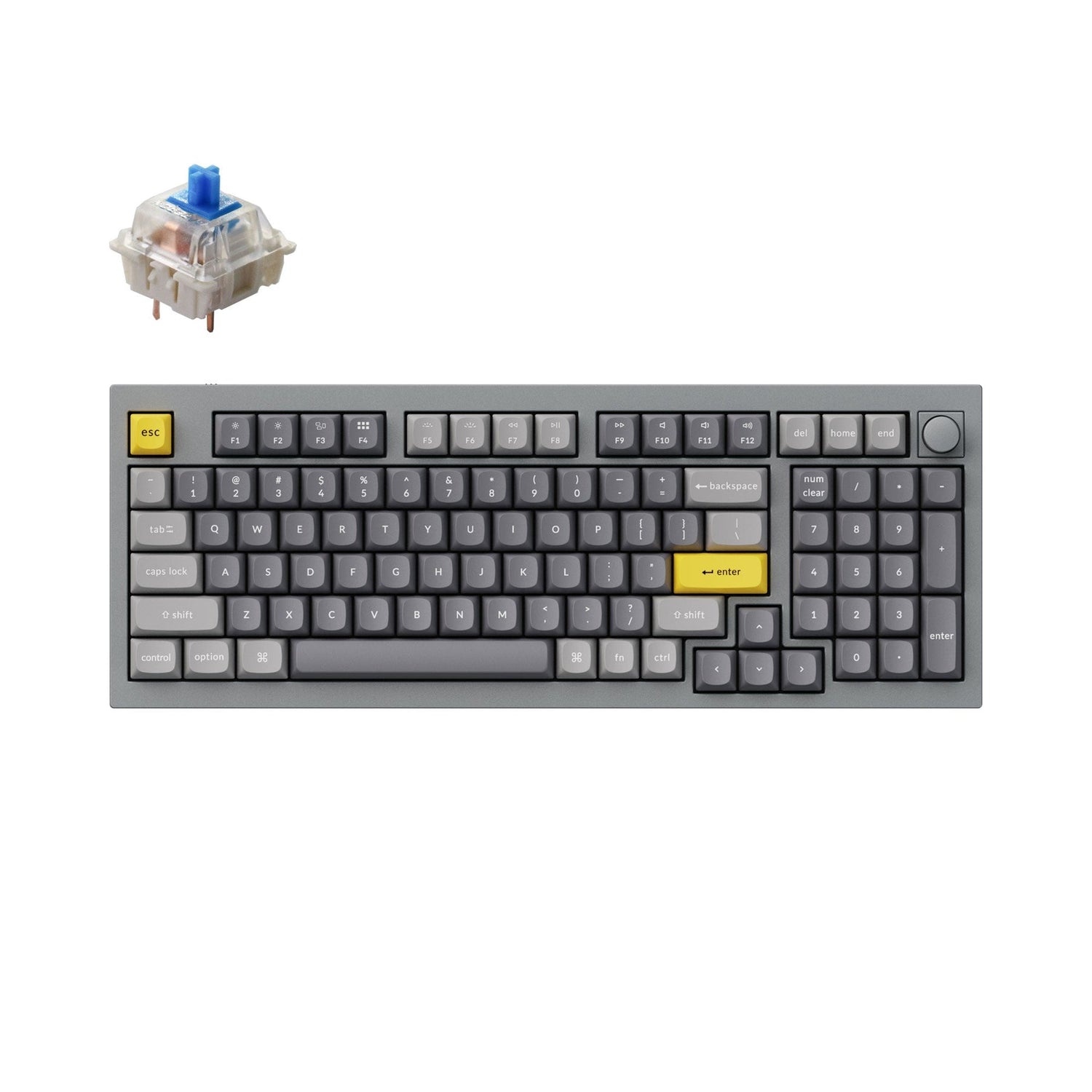

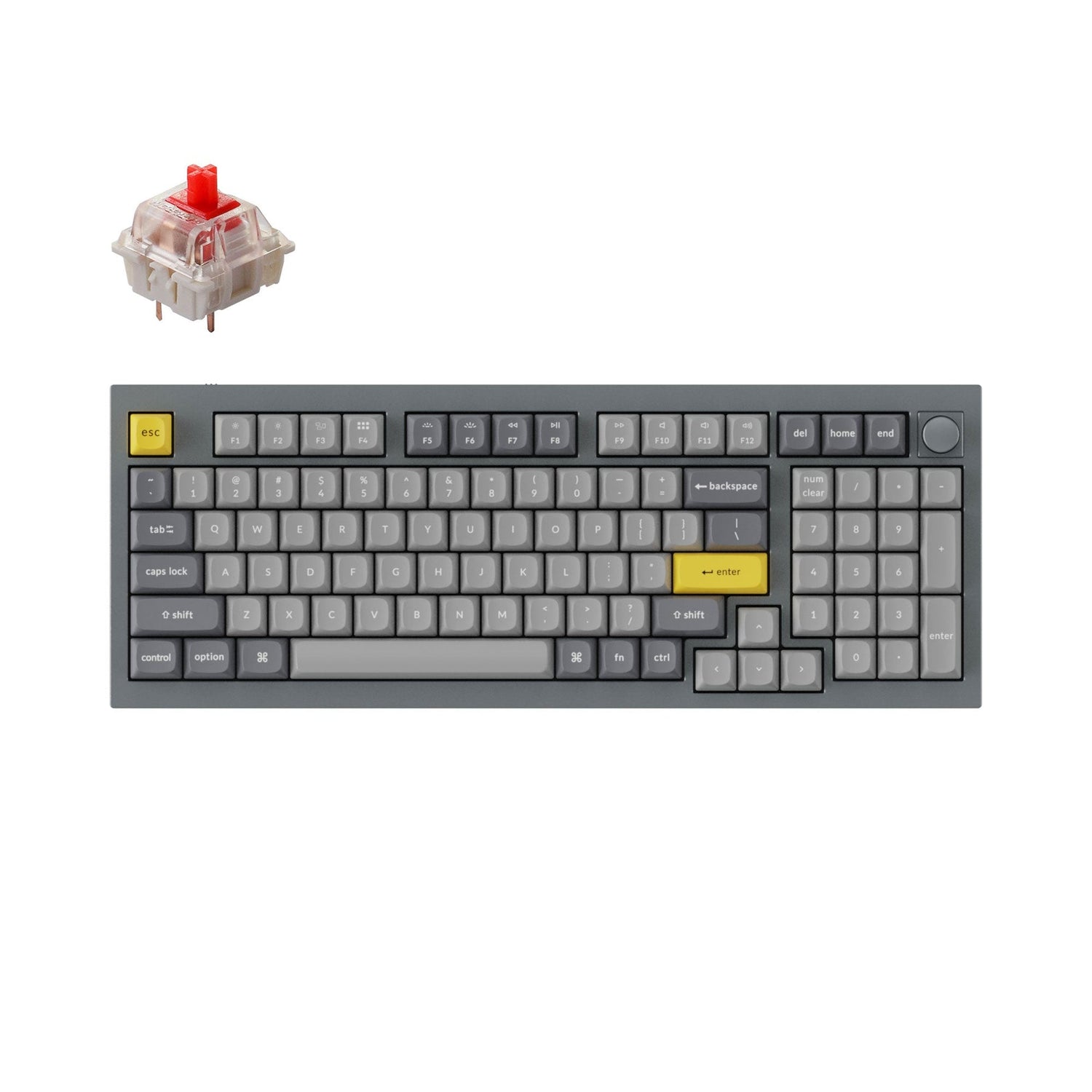

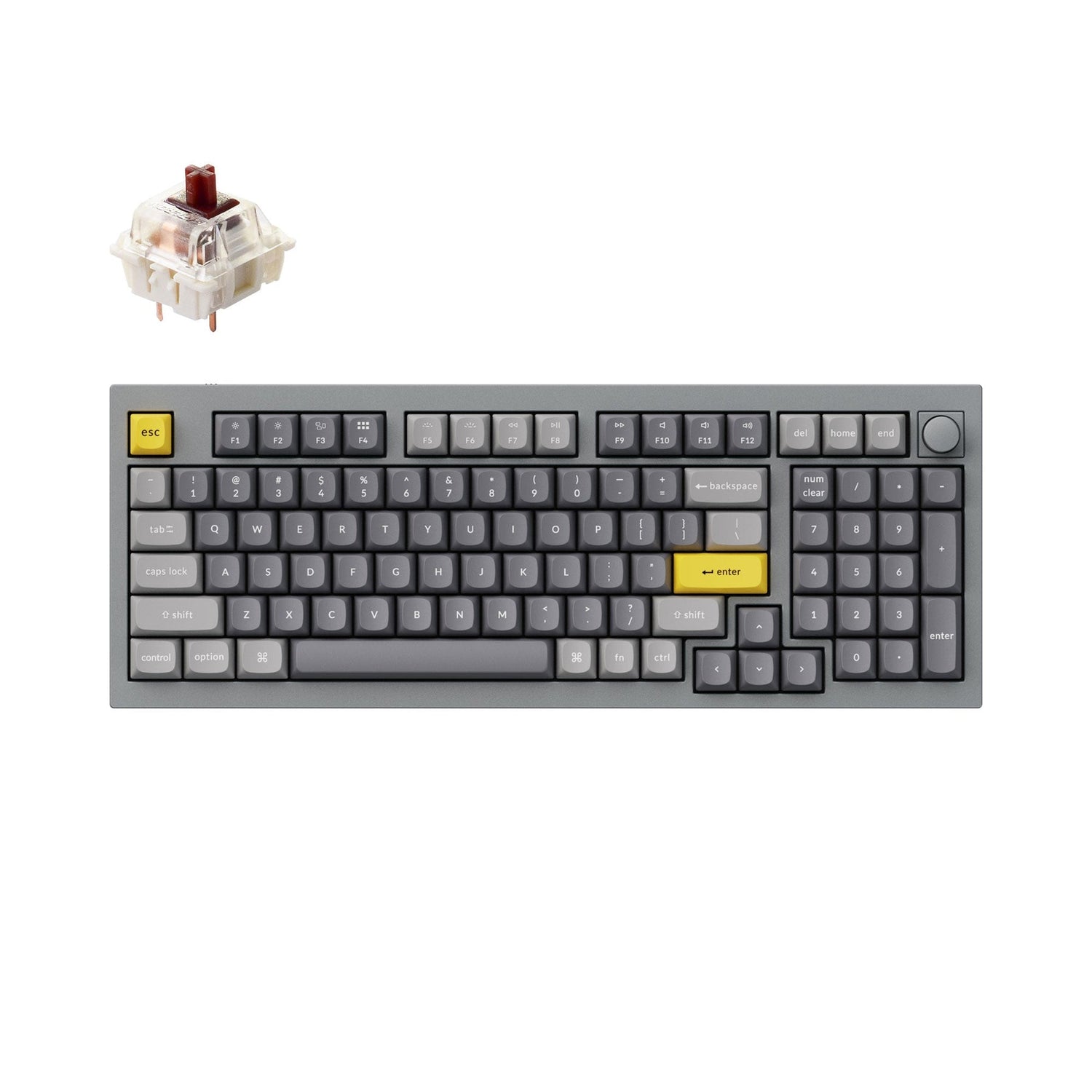

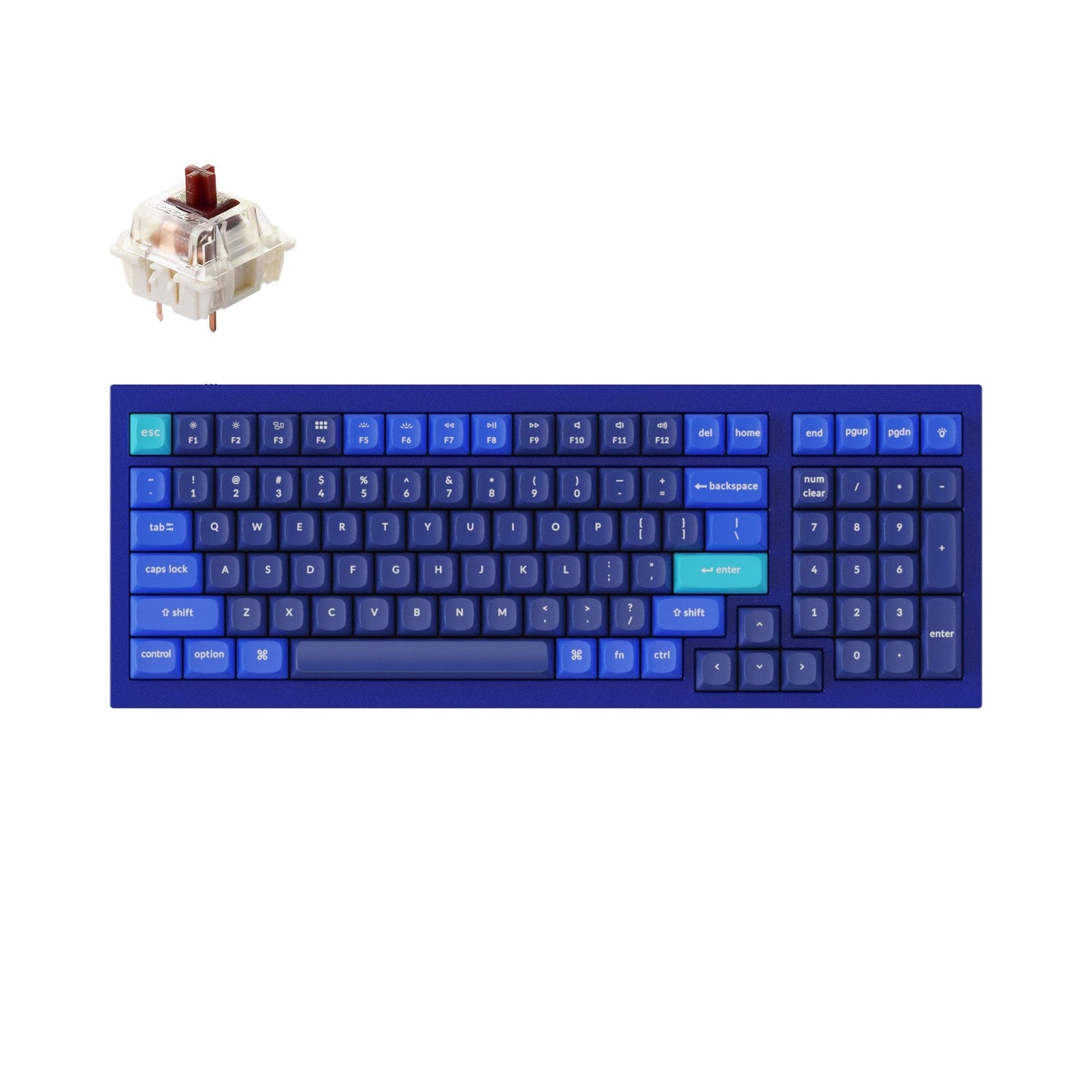

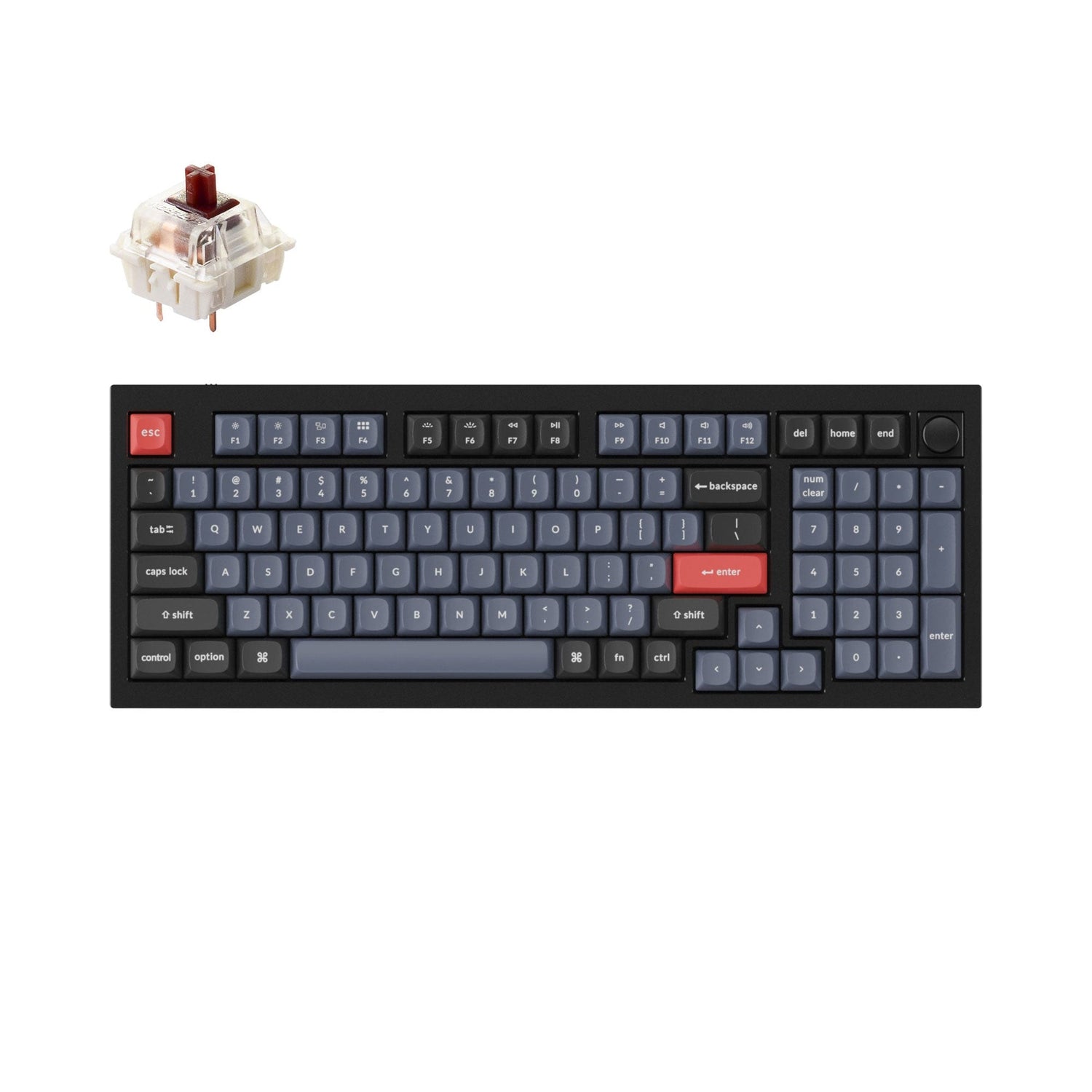

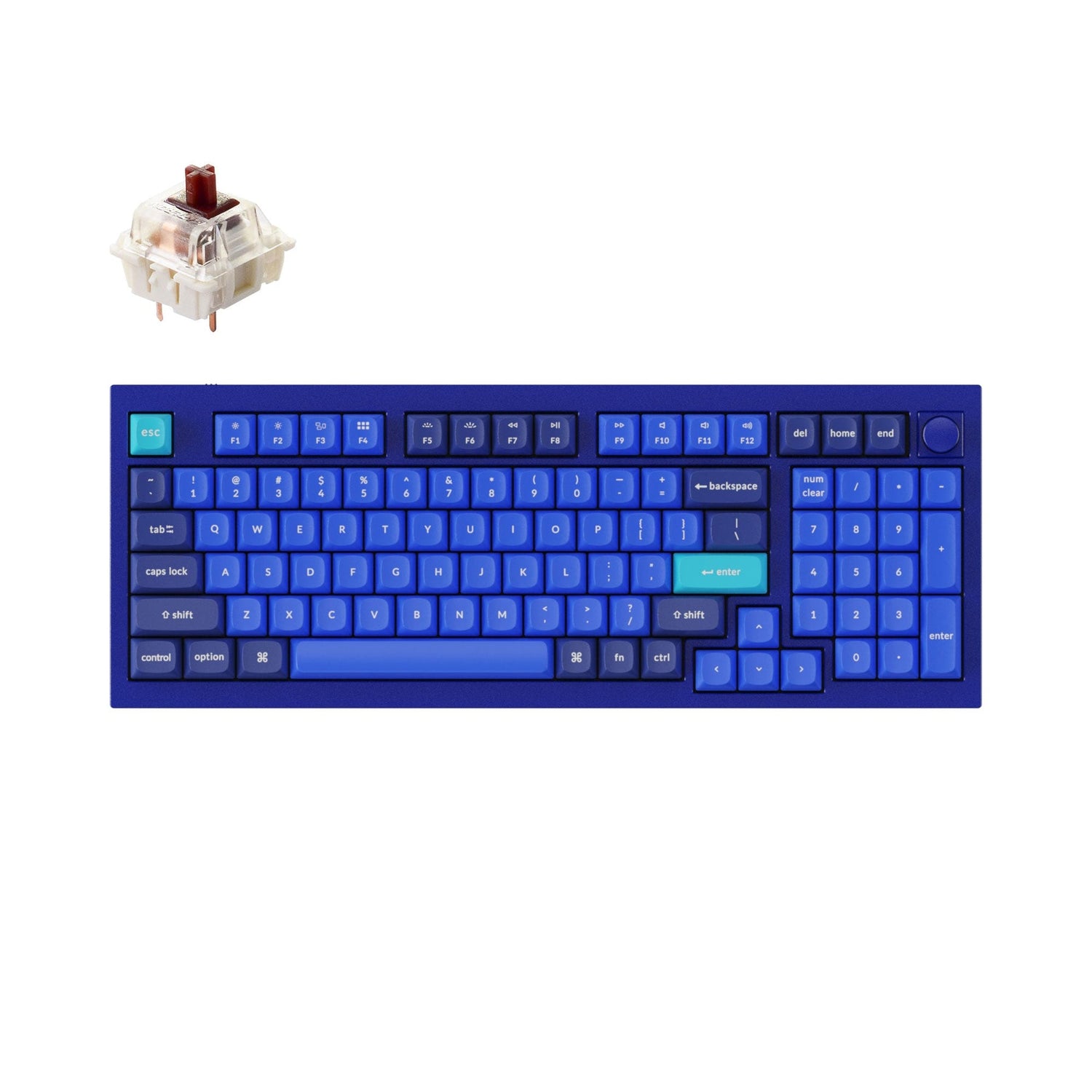

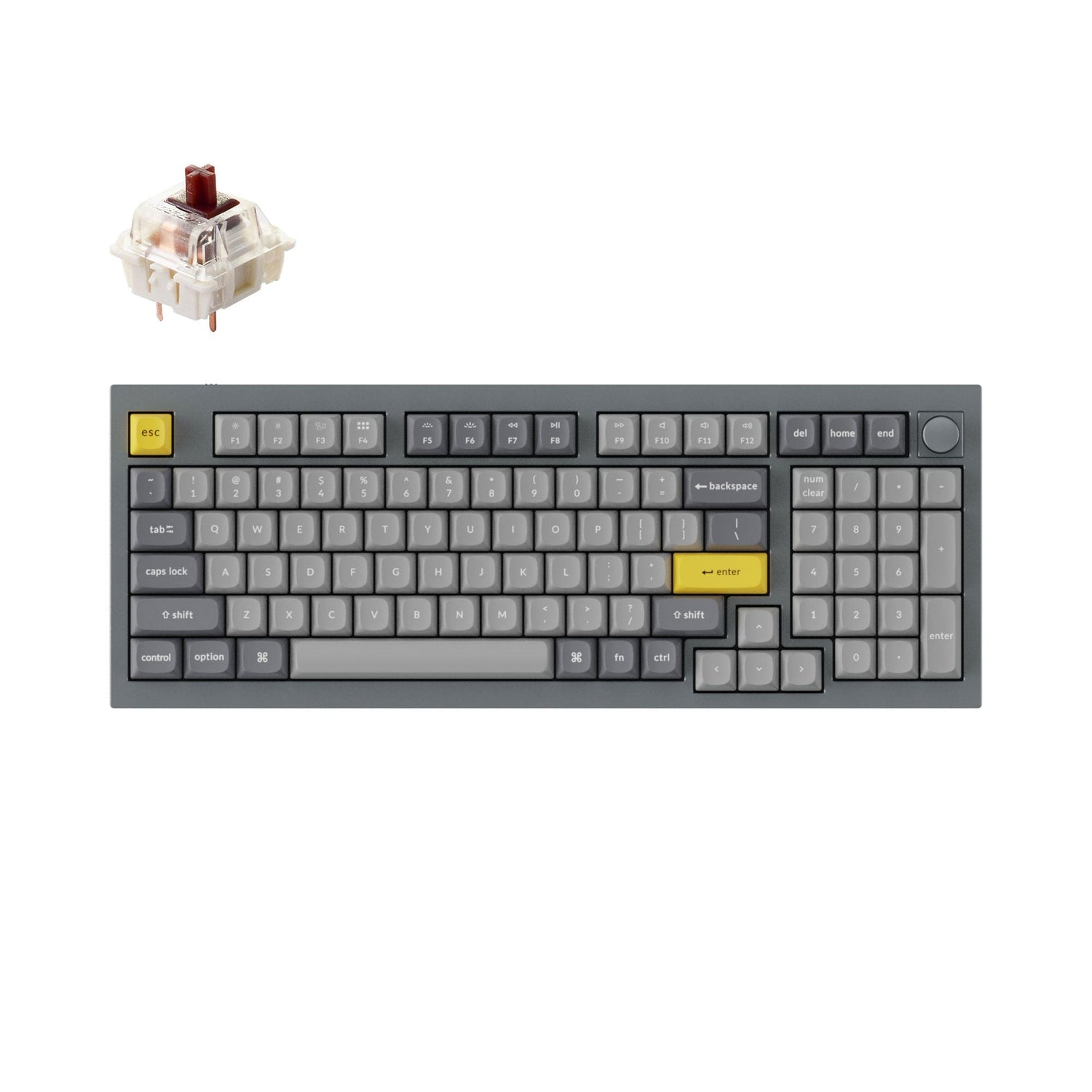

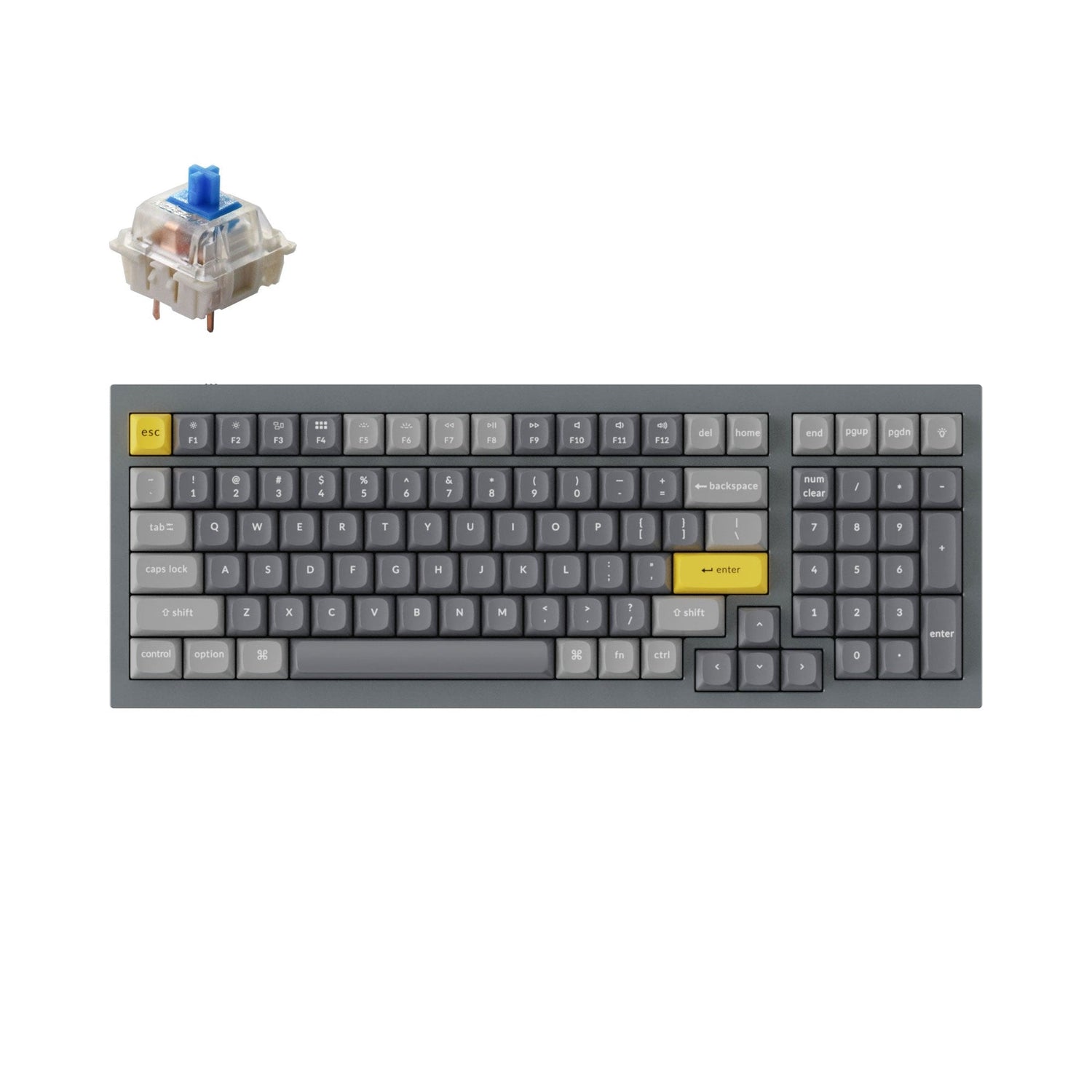

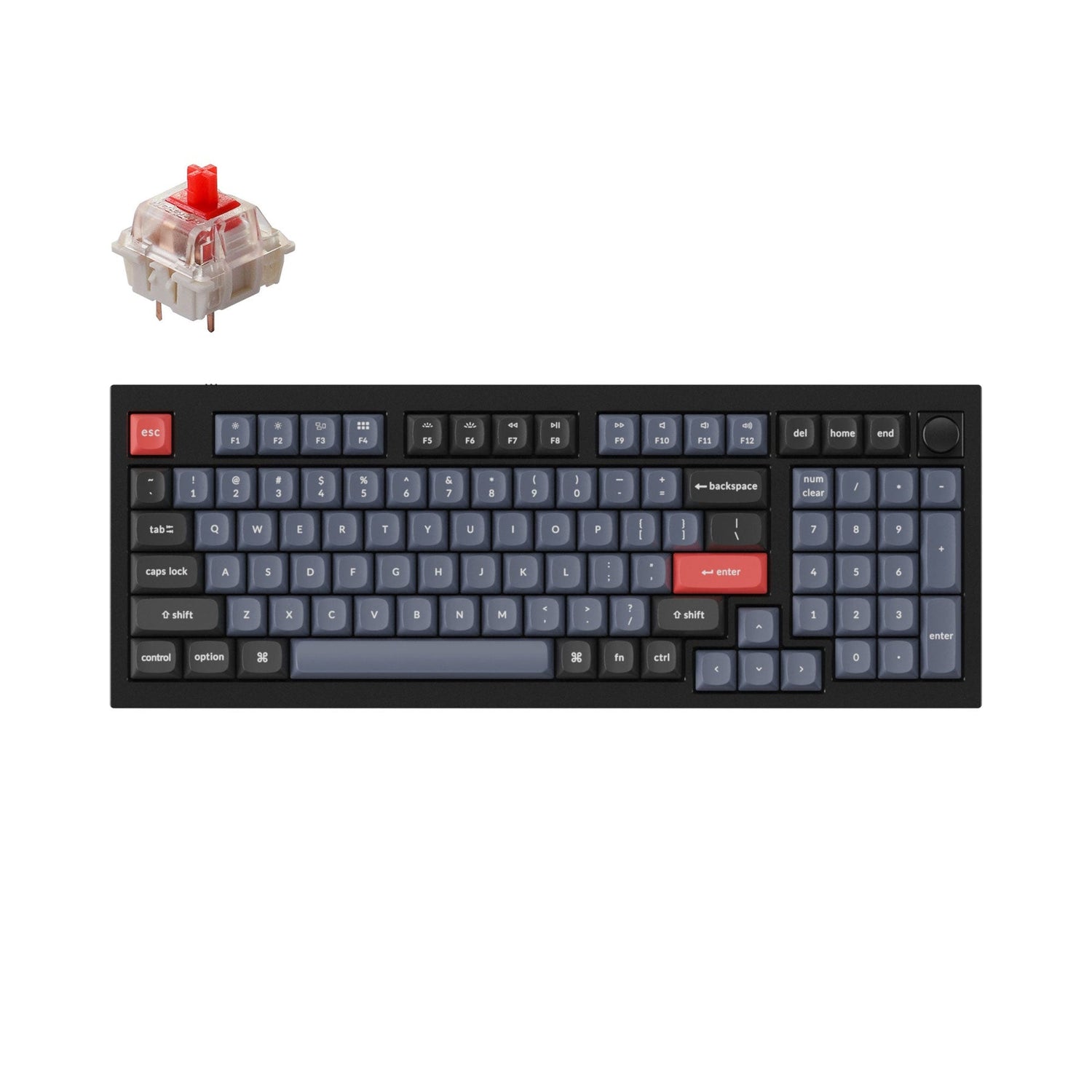

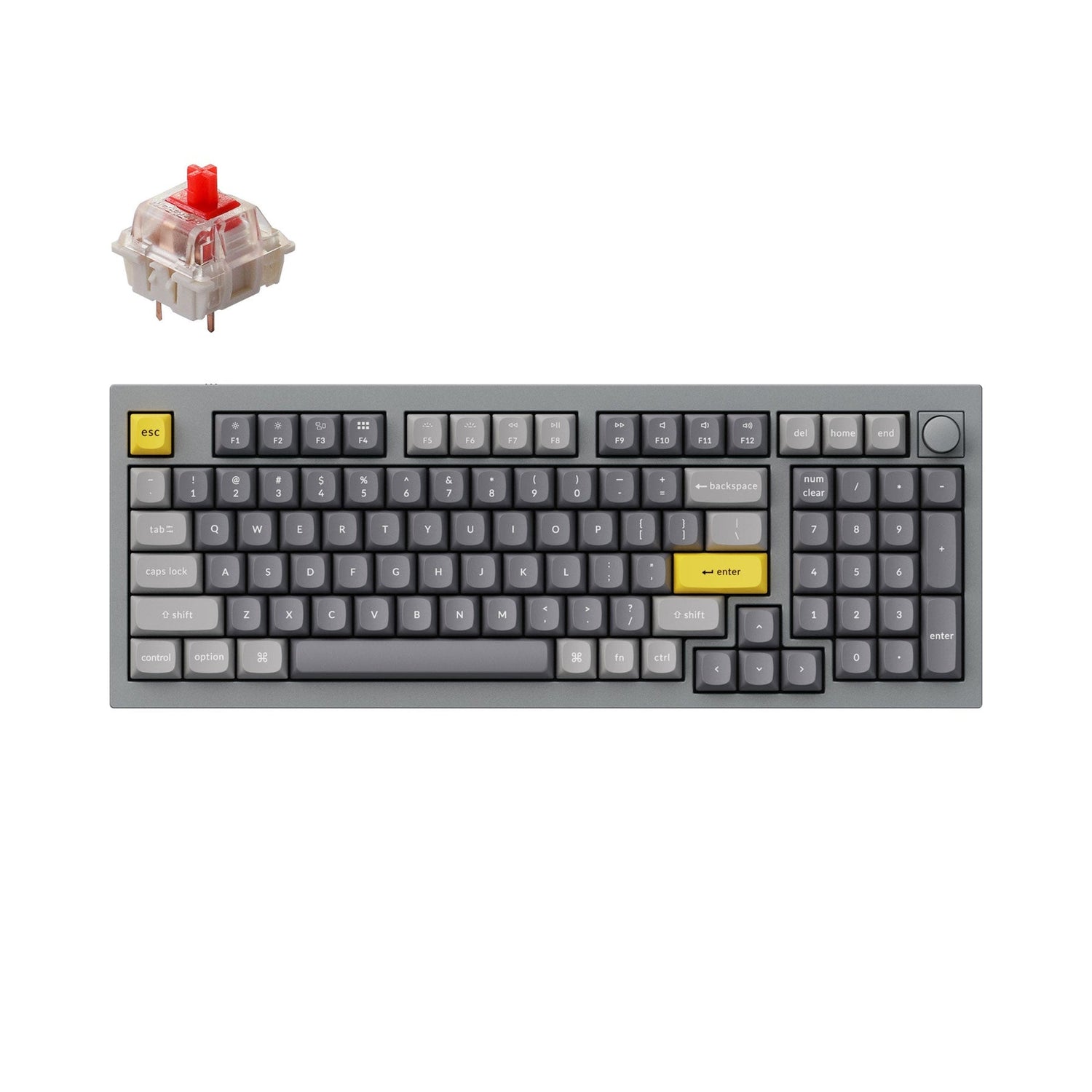

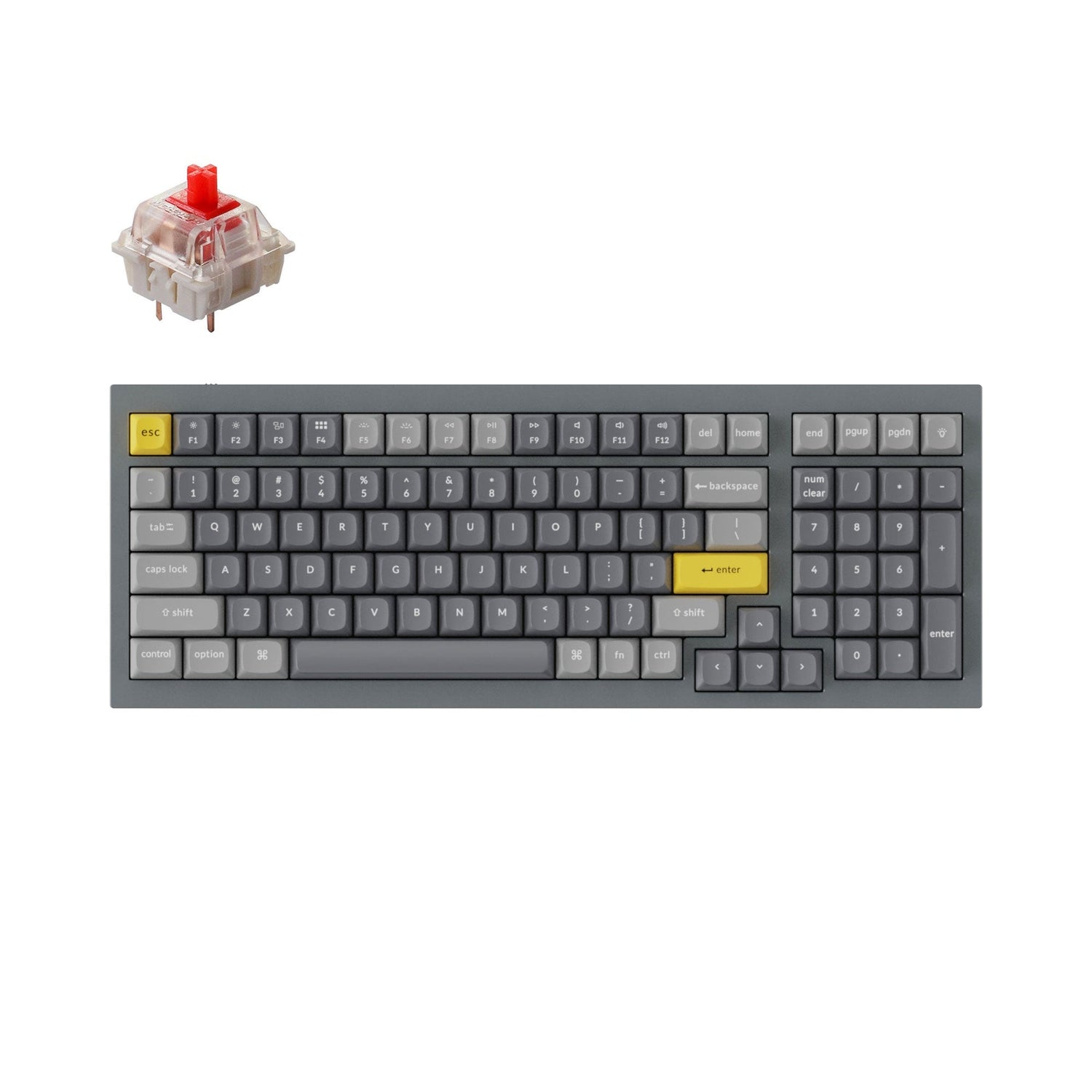

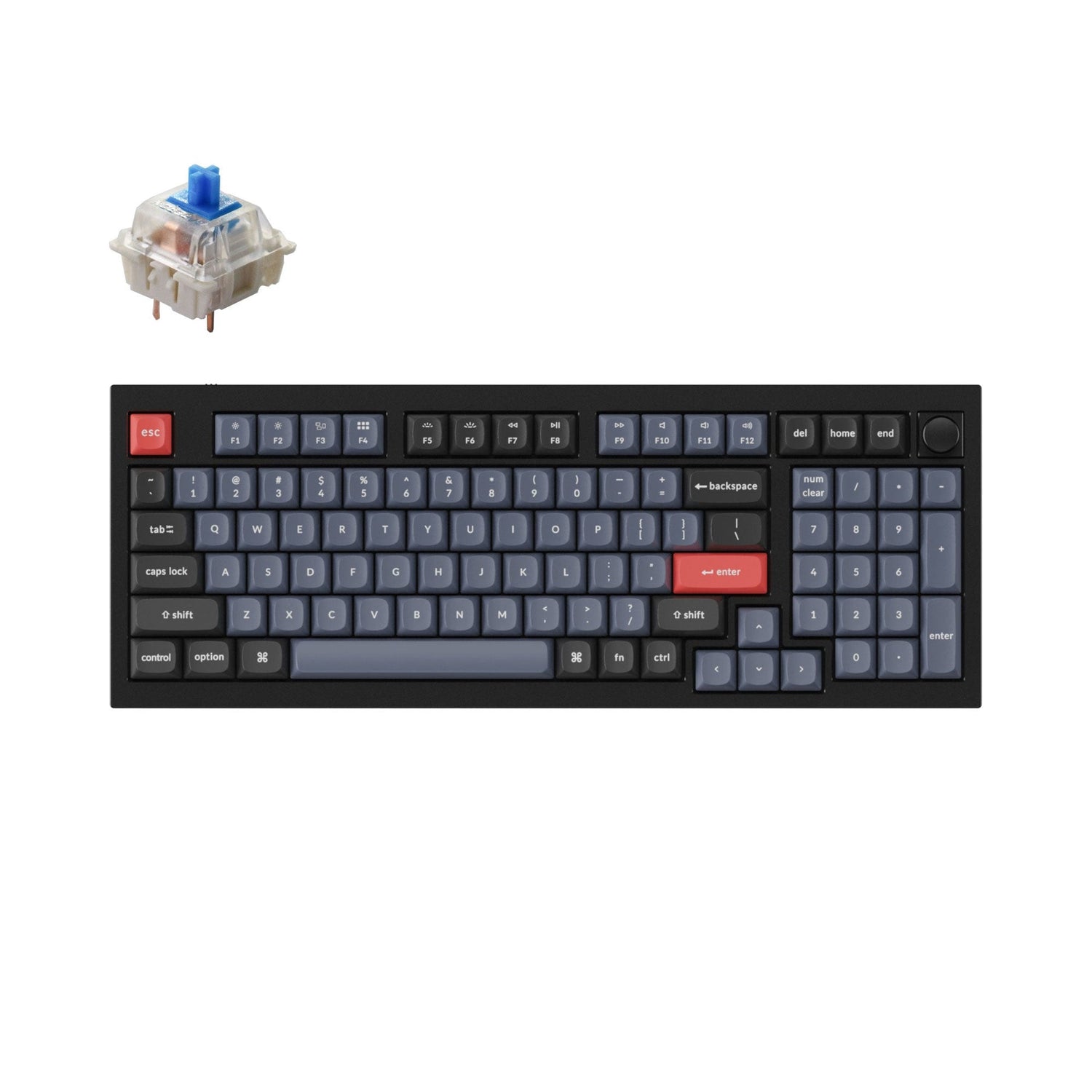

The fully assembled version includes:

  • The keyboard PCB, the case, and the steel plate.
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps).
  • Gateron G Pro switches.

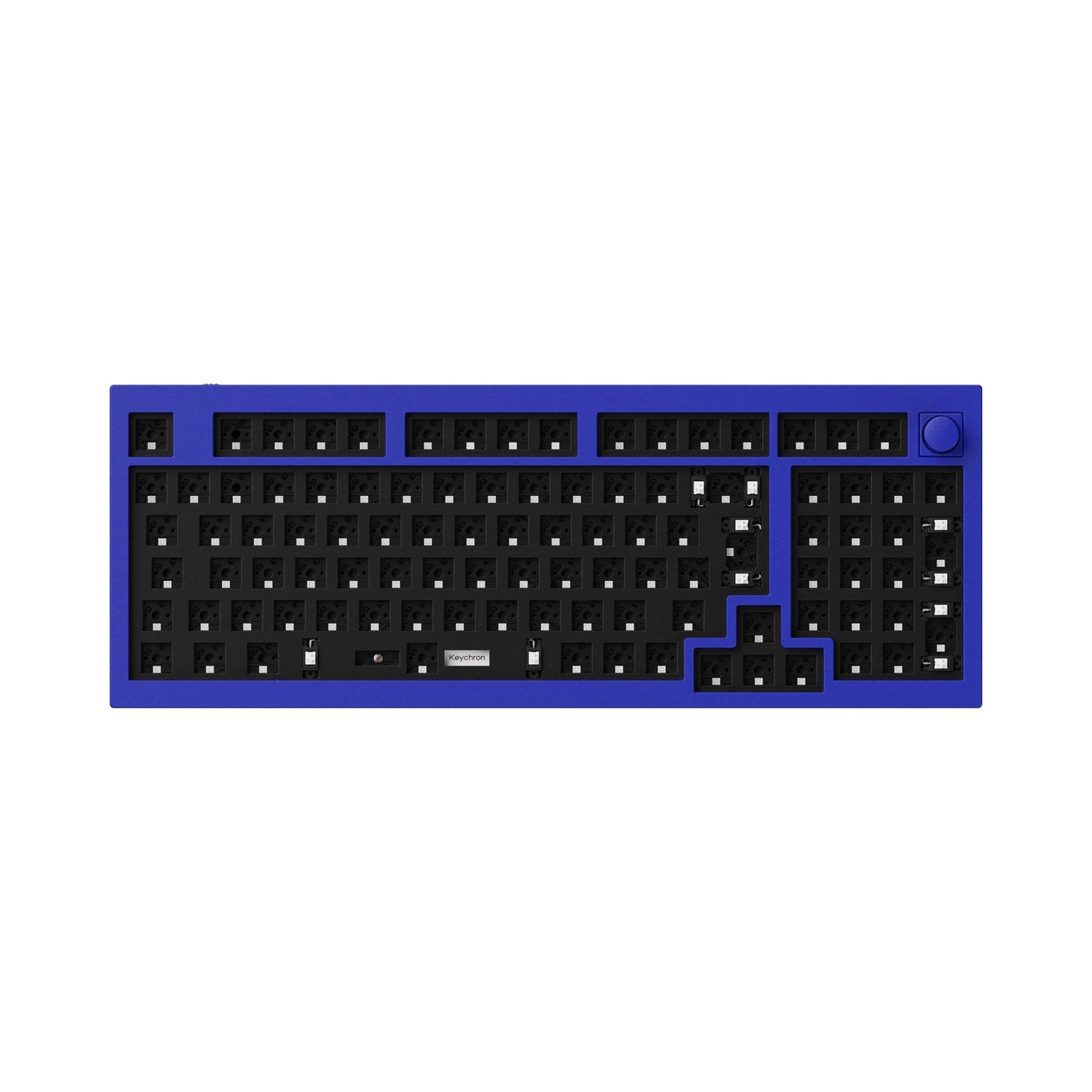

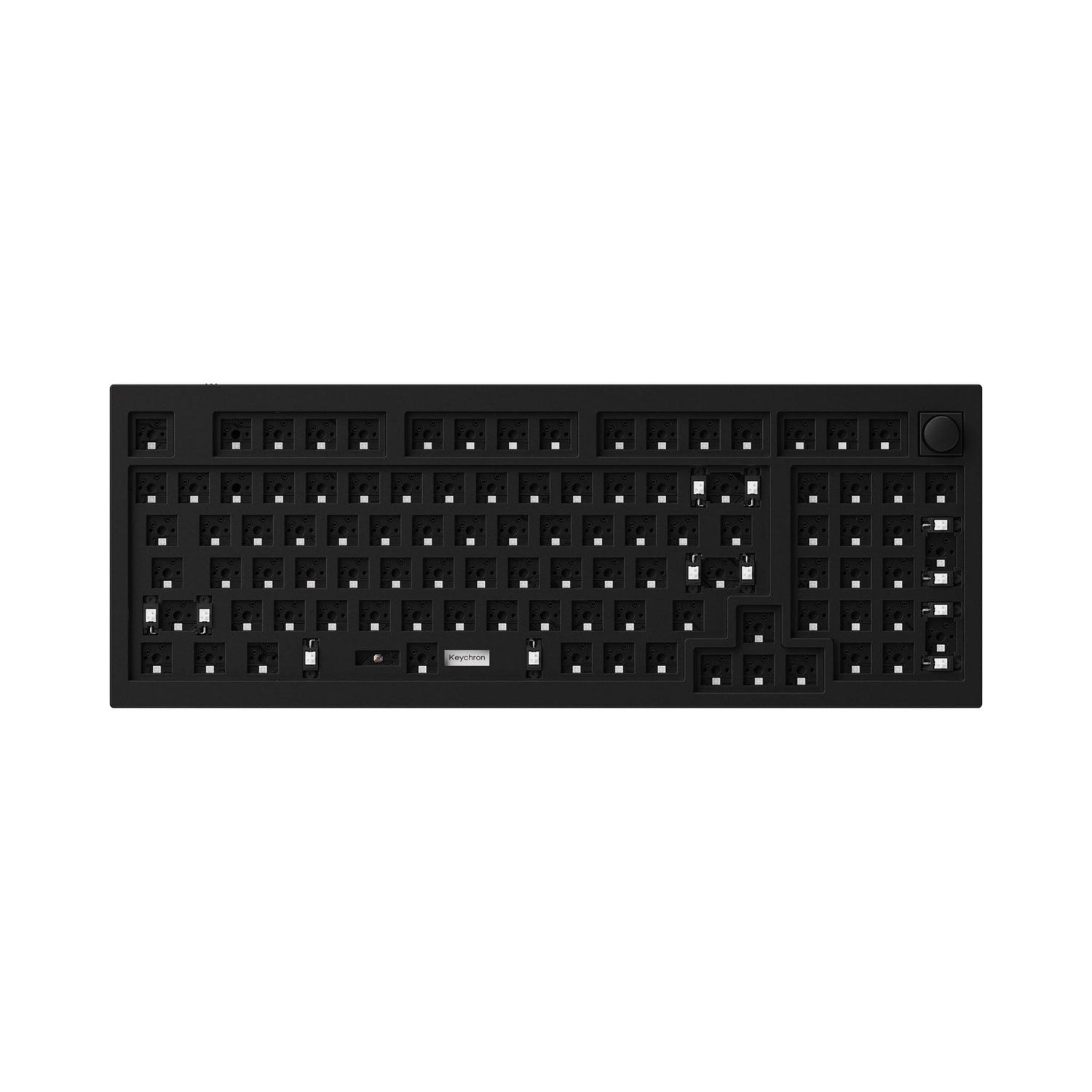

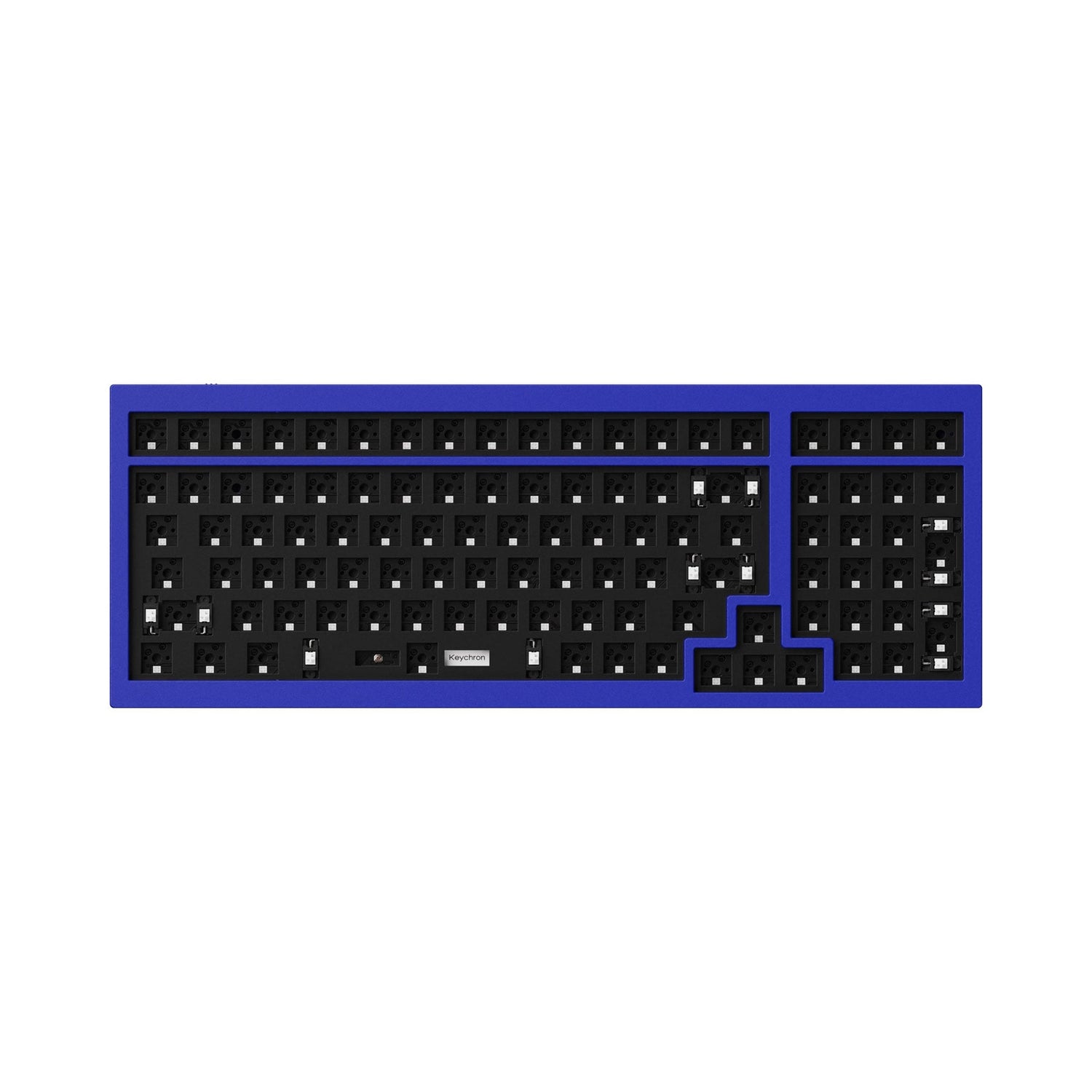

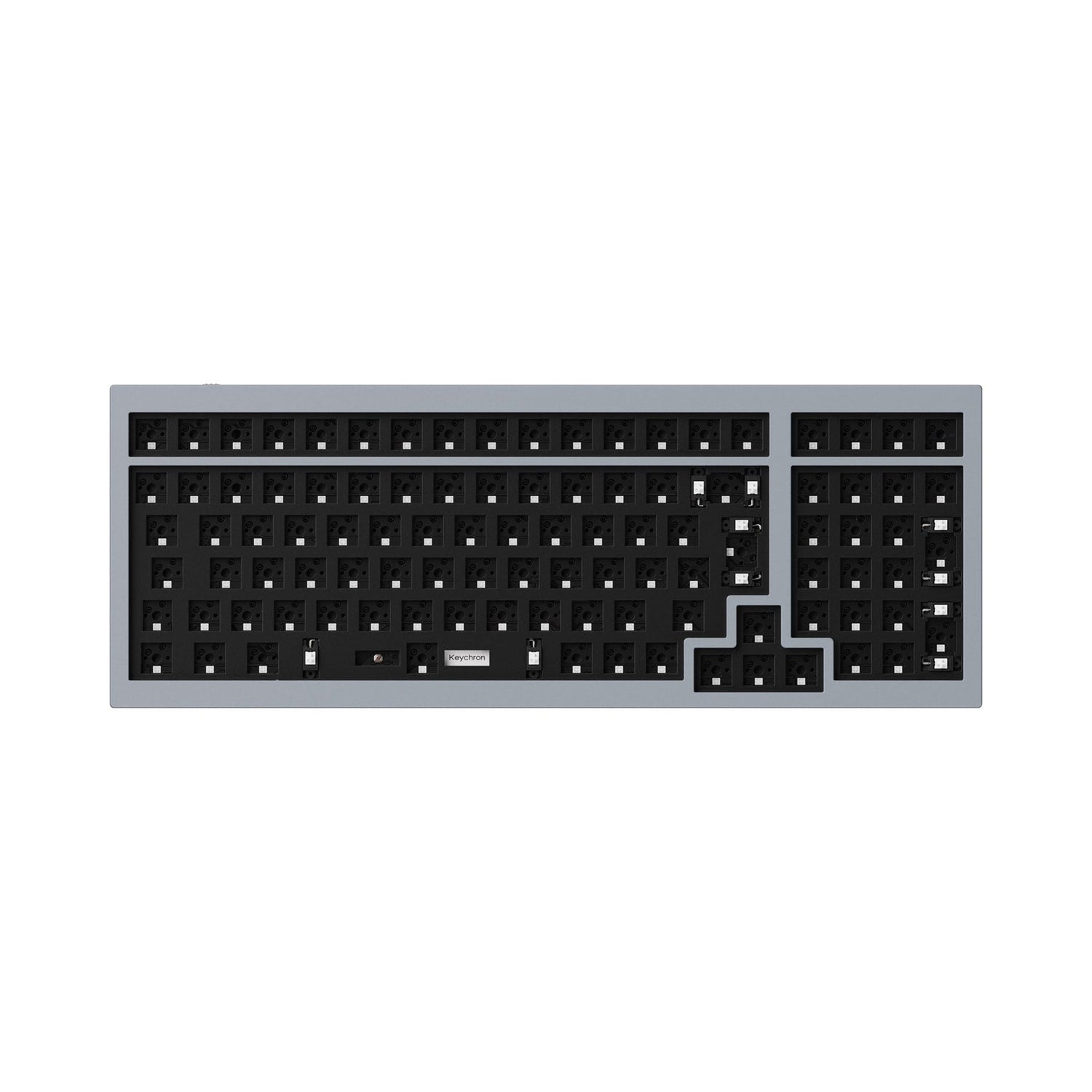

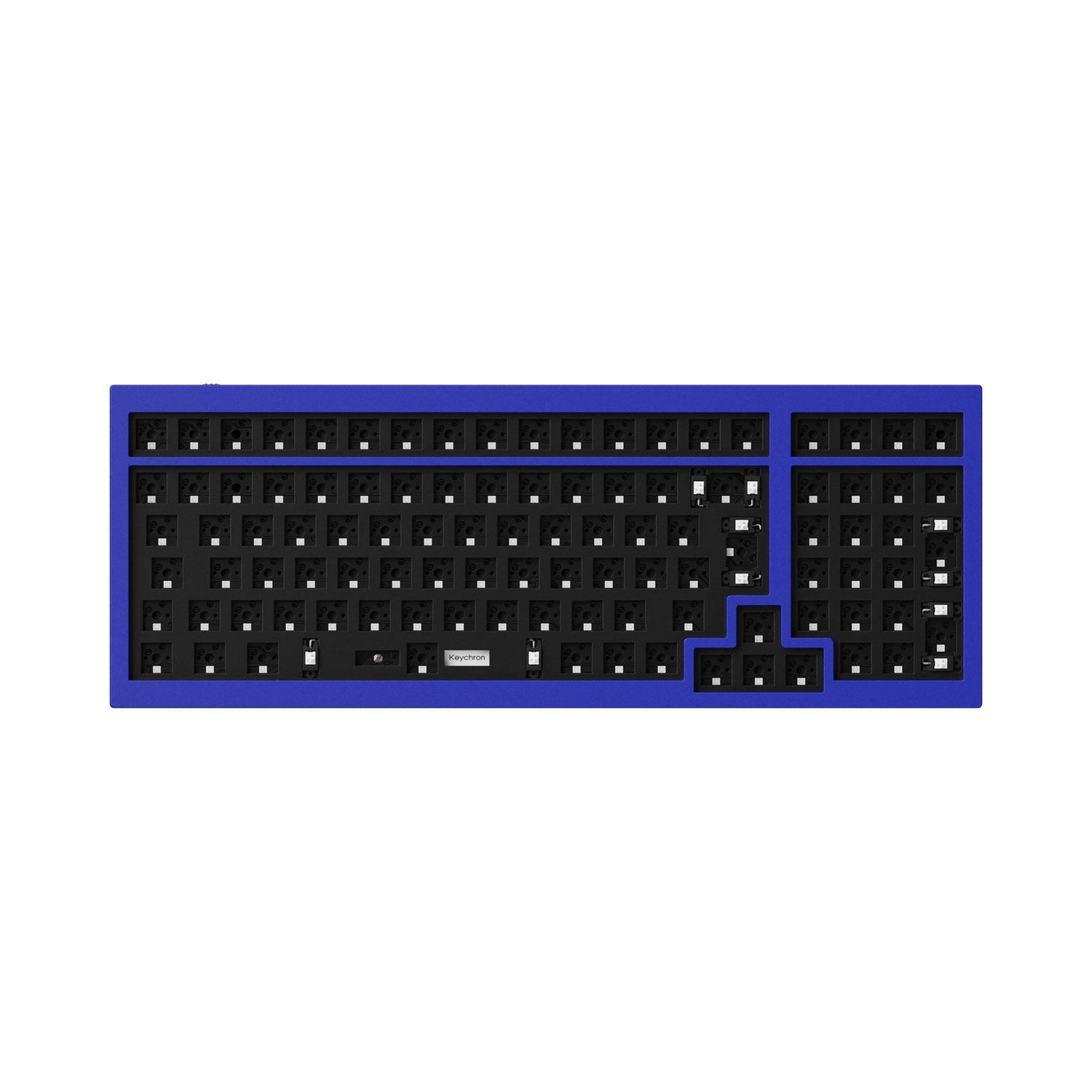

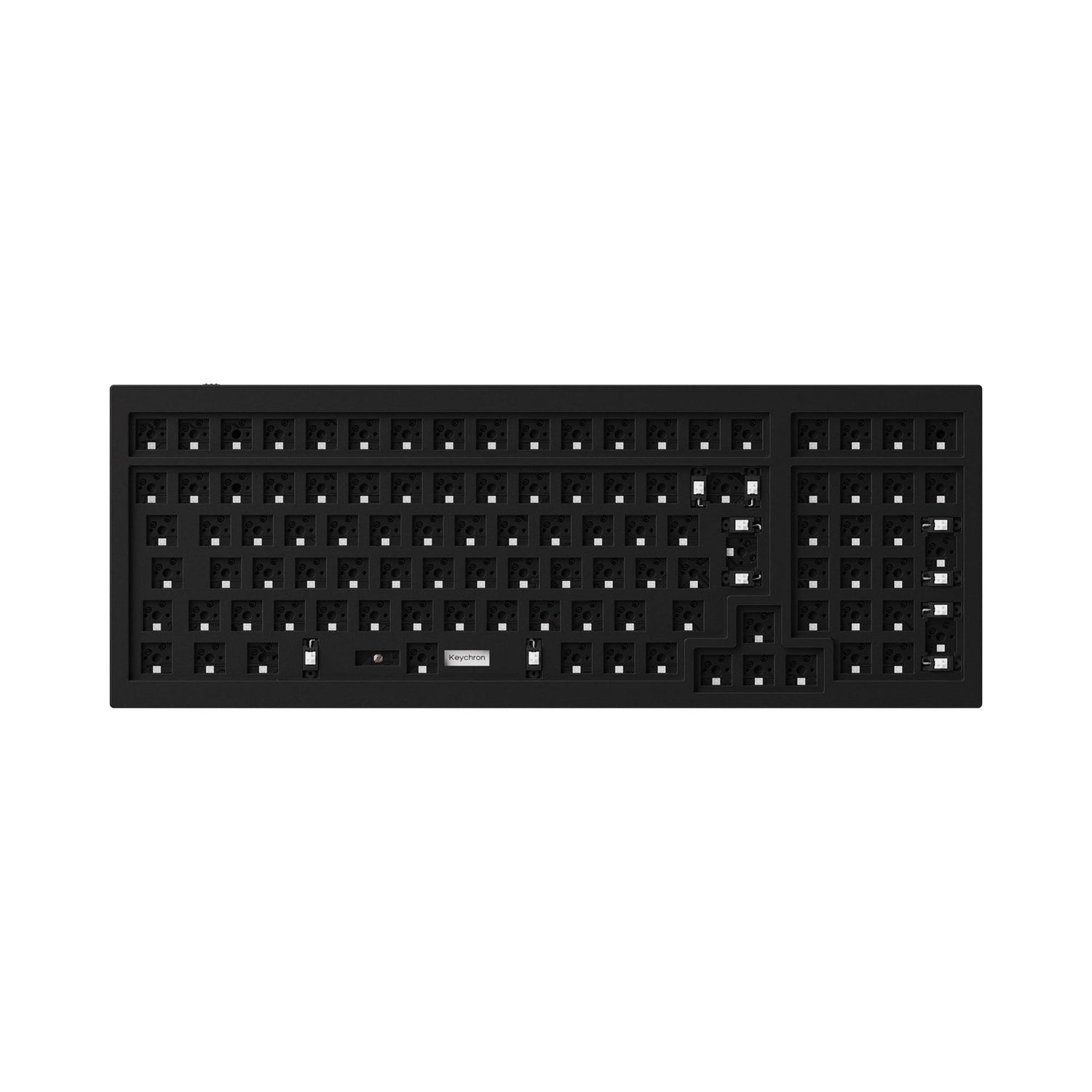

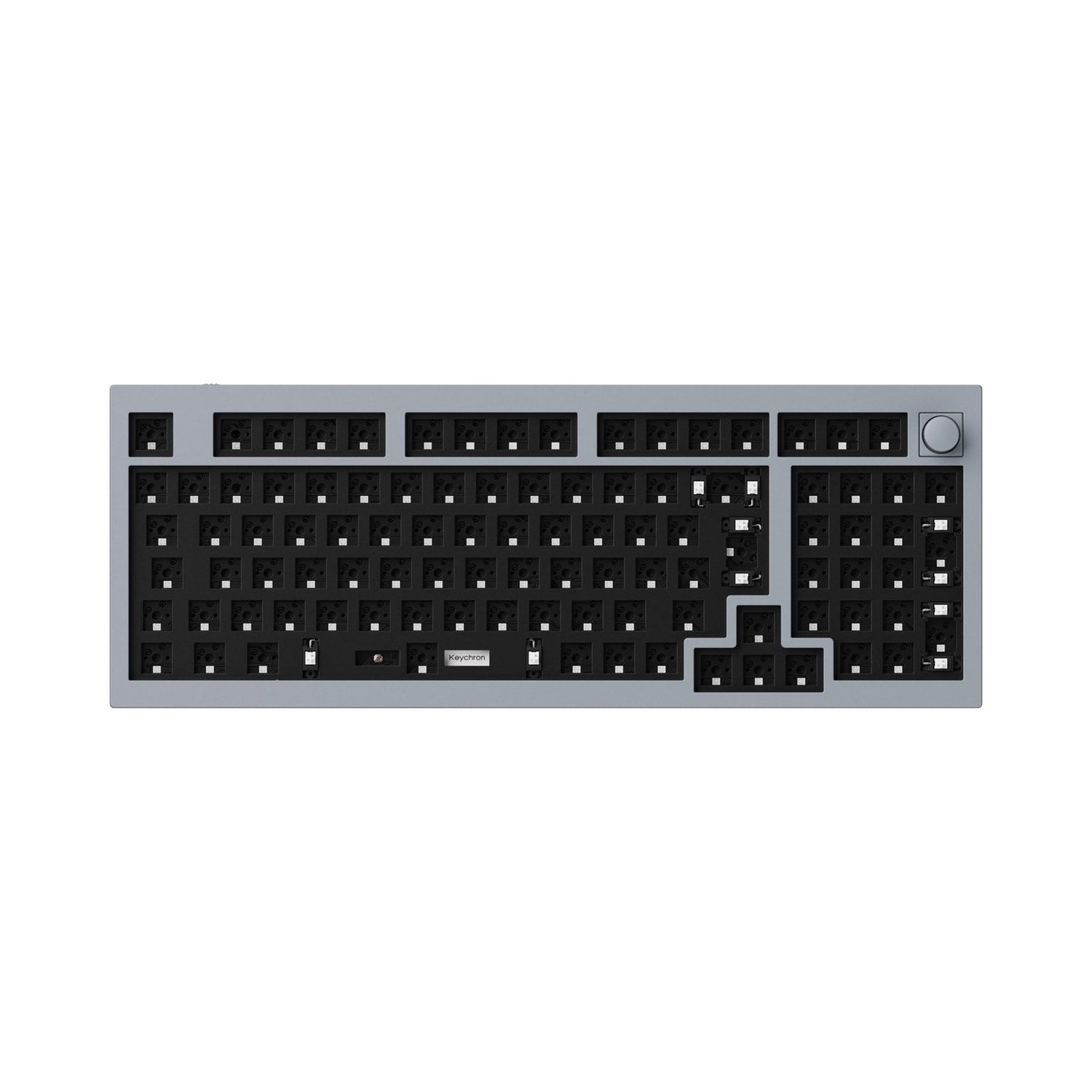

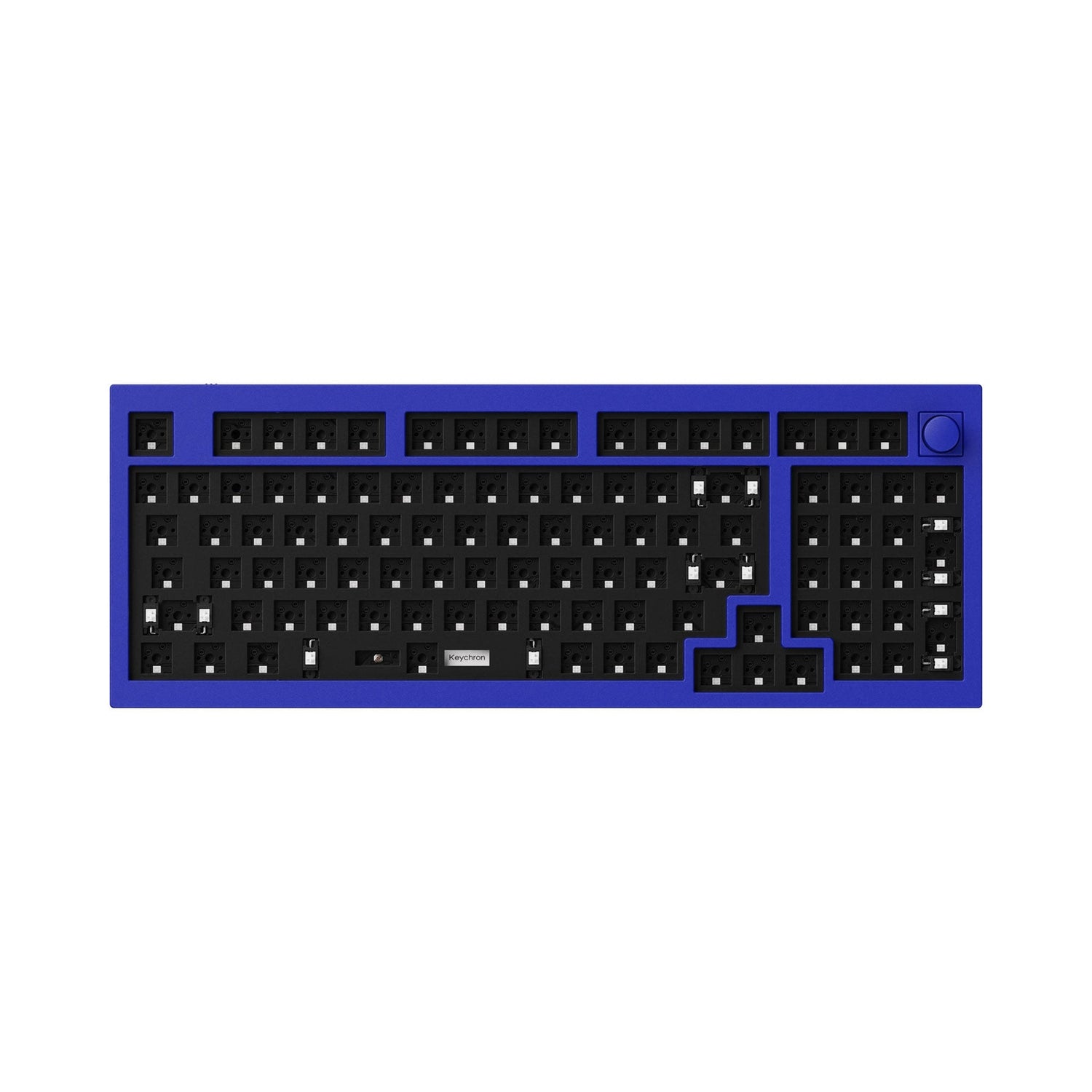

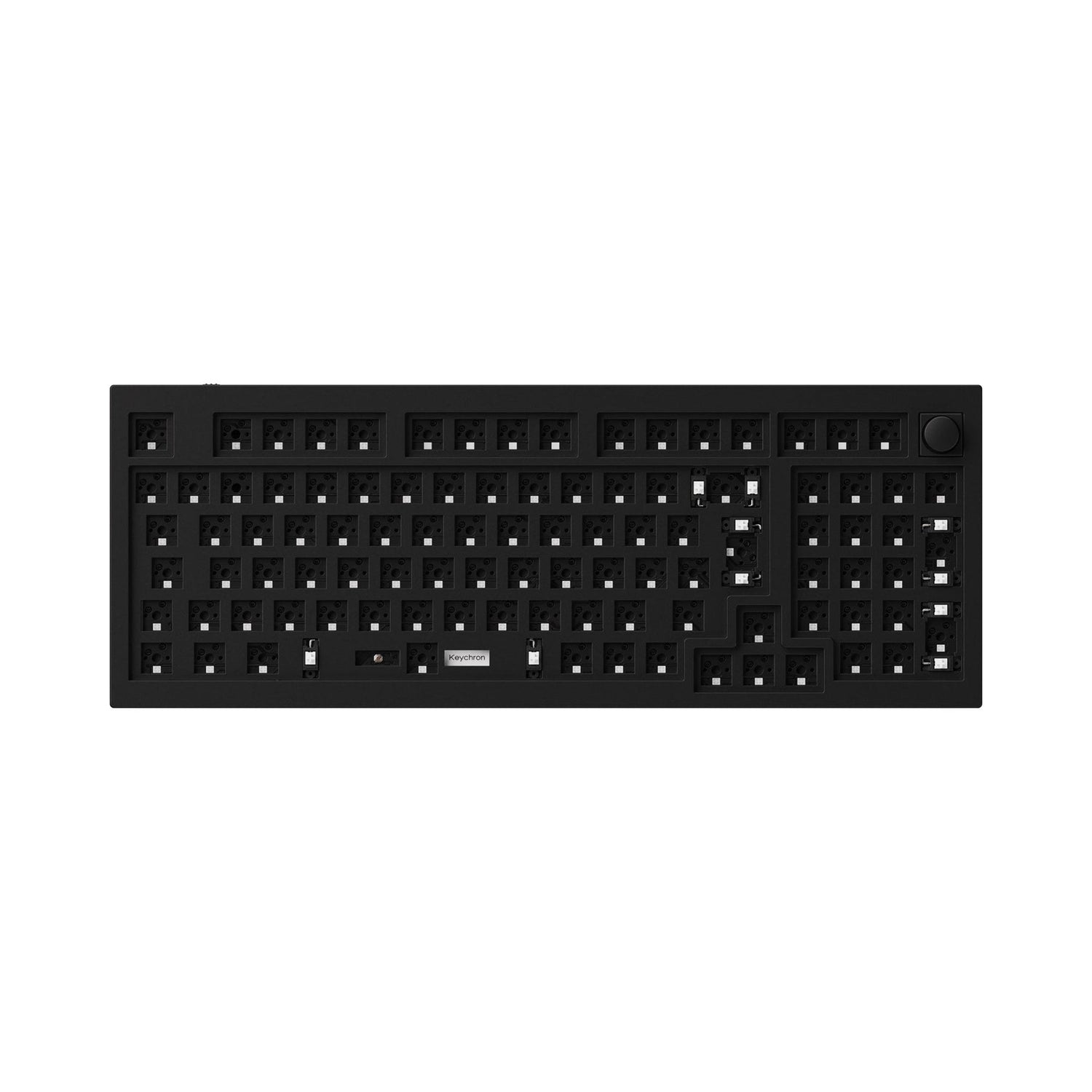

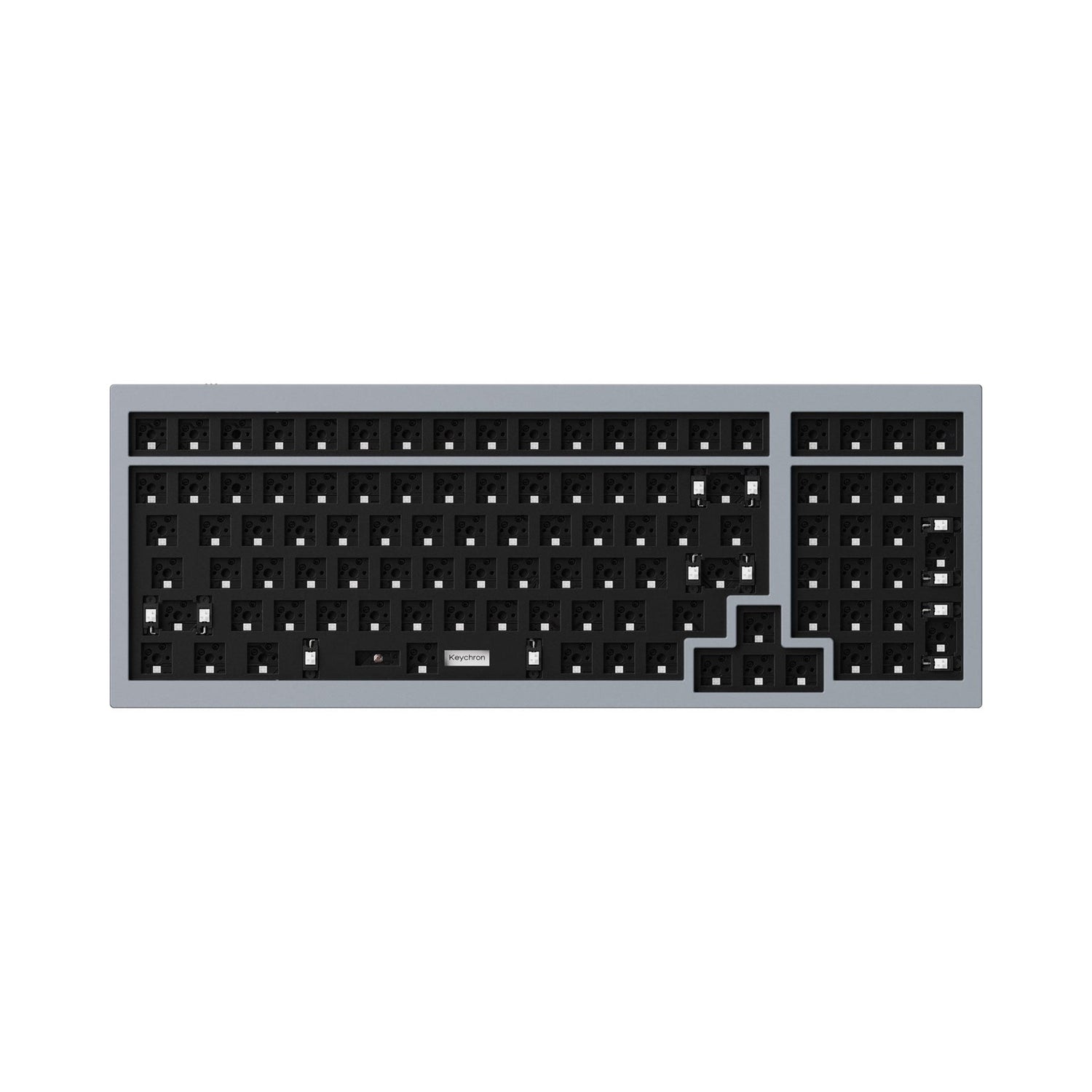

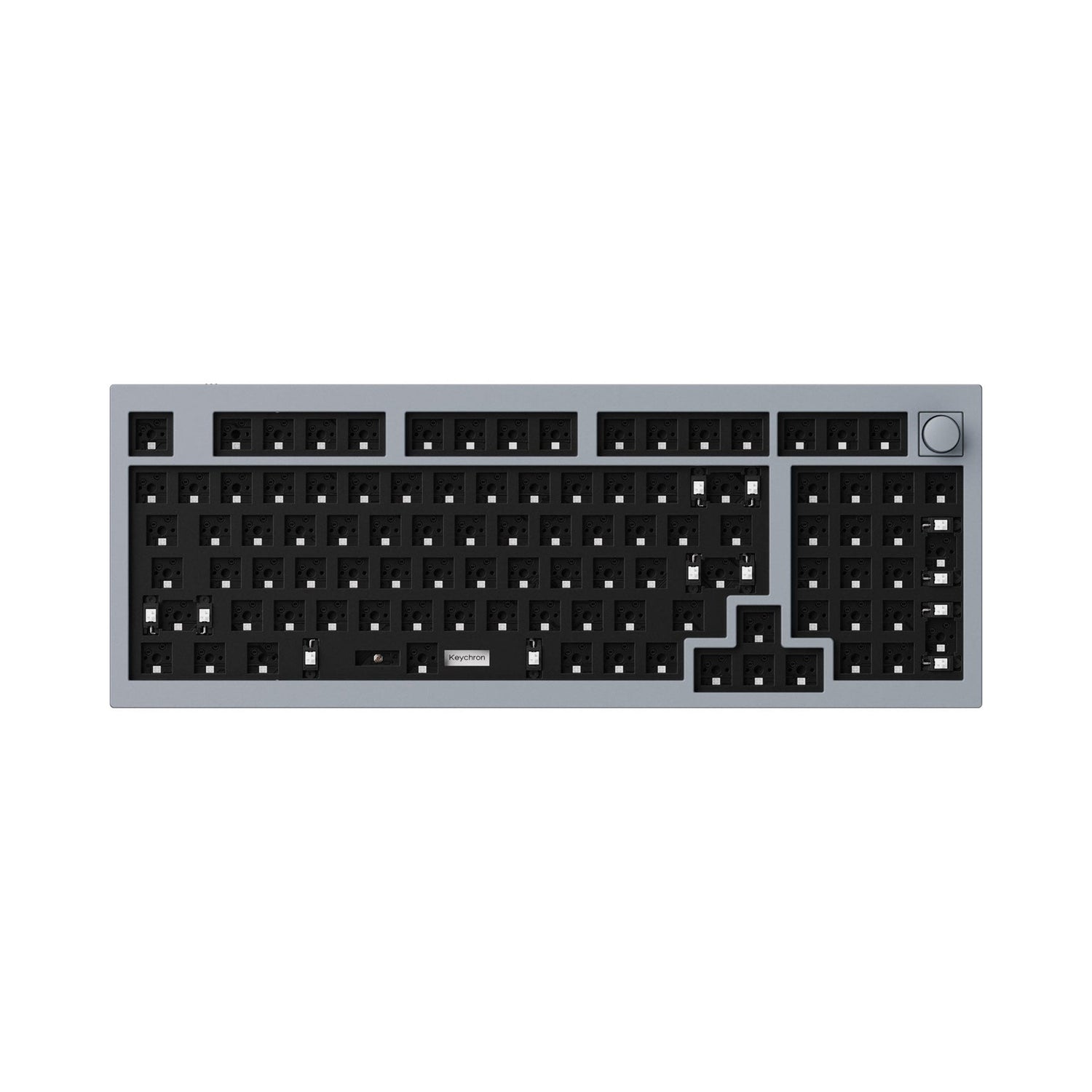

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q5.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Adrian Kemp
Love it!

Perfect! Great quality really happy

M
Mil
Another great product

The Q5 is perfect for development/engineering work since it combines all the functionality of a full size keyboard in a more compact form factor.
The quality of the product is excellent and the typing experience is great as usual.
I also have bought an FR4 plate to try at a later time, but so far I am enjoying the current setup using some Gateron Oil kings, PBT keycaps and a tape mod. It sounds and feels so nice to type on. After buying/moding a few Keychron keyboards I would say that if it is used for work then: Q5 > Q3 > Q2 if on the other hand you don't have a lot of use for function keys or numpad then Q2 > Q3 > Q5.
Yes my favourite model is still the Q2, but for everyday work Q5 is a workhorse and sounds and feels almost as good.

Keychron Q5 1800 compact Custom Mechanical Keyboard

Keychron Q5

Setting the best example for efficient space usage, the Q5 has a compact 96% layout design while retaining all the essential functions and number keys. With its full metal CNC machined body, double-gasket design, and QMK/VIA support, the Q5 is the ultimate choice for an almost full-size keyboard.

Keychron Q5 1800 compact Custom Mechanical Keyboard
Keychron Q5 1800 compact Custom Mechanical Keyboard
Keychron Q5 1800 compact Custom Mechanical Keyboard
Customize Your Q5

Choose the keycaps, switches and more accessories for your Q5

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q5.

Keychron Q5 1800 compact Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Keychron Q5 1800 compact Custom Mechanical Keyboard

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Keychron Q5 1800 compact Custom Mechanical Keyboard

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Keychron Q5 1800 compact Custom Mechanical Keyboard

You can easily customize the Q5's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Keychron Q5 1800 compact Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT Keychron Q5 1800 compact Custom Mechanical Keyboard Keycap
Keychron Q5 1800 compact Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q5 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program Q5 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Program Q5 with QMK & VIA

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Note: The Q5's top case has sharper corners to make it much more compatible with third-party keycaps.

Barebone ANSI Layout Keychron Q5 1800 compact Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q5 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

Gateron G Pro Switch Features
All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q5 also supports third-party stabilizers, including Cherry or Durock.

Looking for ISO Layout?

The Q5 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout, and the “Barebone ISO" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, 🇭🇺Hungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.

Keychron Q5 ISO Layout 1800 compact Custom Mechanical Keyboard

Typing Sound Test

Keychron Q5 1800 compact Custom Mechanical Keyboard

Different Versions

Keychron Q5 1800 compact Custom Mechanical Keyboard

What's in the box?

Keychron Q5 1800 compact Custom Mechanical Keyboard
Keychron Q5 1800 compact Custom Mechanical Keyboard

Specs

Width145 mm
Length390.4 mm
Front Height20.2 mm  (without keycaps)
Back Height33.4 mm (without keycaps)
Feet Height2.4 mm
Angle5.2°
Weight2200 g ± 10g (the fully assembled weight)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000Hz
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron G Pro (fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Keychron Q5 User Guide

Learn more about the Keychron Q5 such as the Q5 shortcuts, assembling the Q5, factory reset, and more in the FAQ section.
