V3-A1

Regular price £77.00
/
5 in stock

Type
Color
Switches
The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

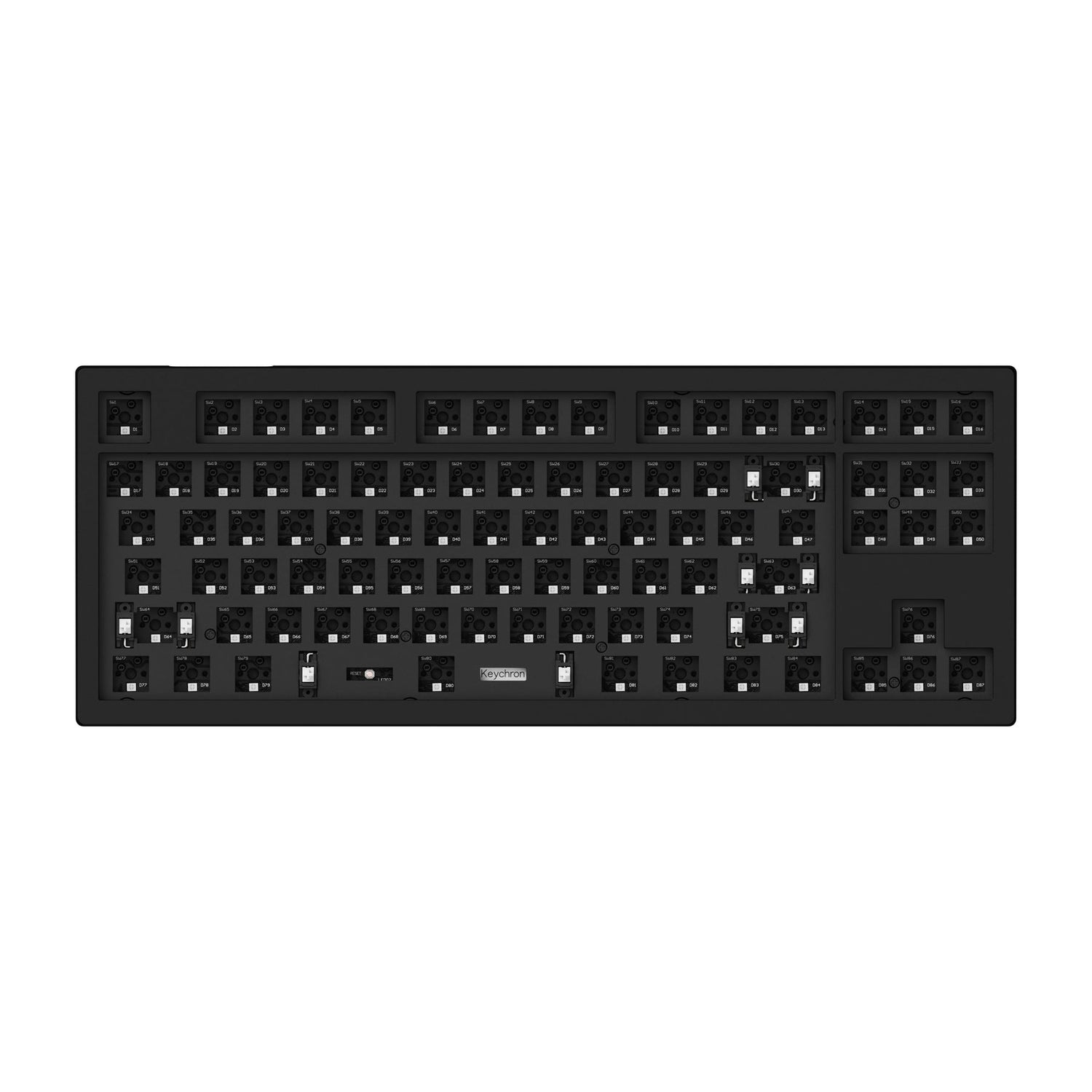

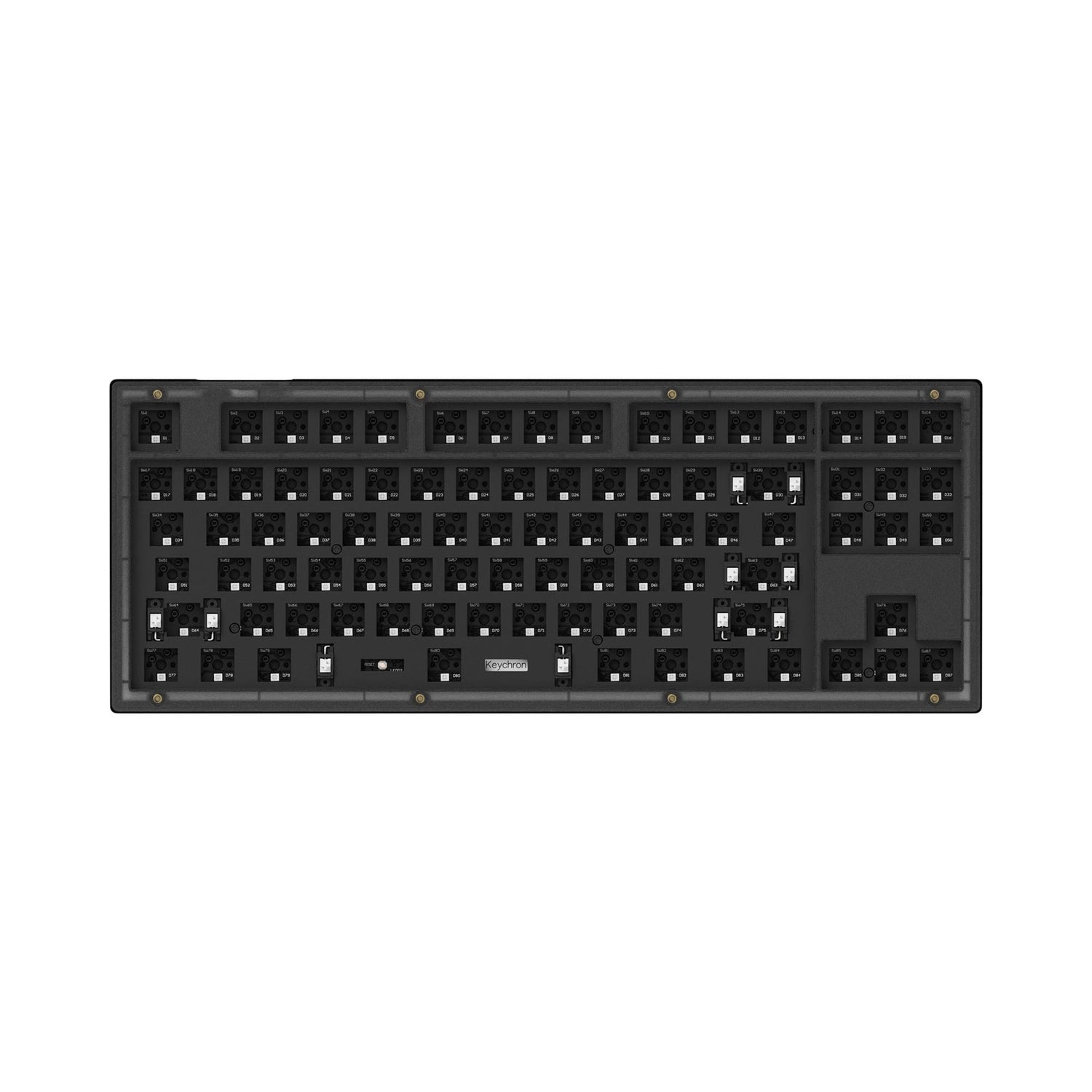

The barebone version does not include the keycaps and switches.
No discount codes can be used for V3.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Buy the V3 UK ISO layout version

Customer Reviews

Based on 10 reviews
90%
(9)
0%
(0)
10%
(1)
0%
(0)
0%
(0)
D
Duncan Ford
Keyboard great - Delivery not so much

The keyboard is good. A nice VIA/configurable board with blue switches. Nice and sturdy. Sadly, the experience was marred by the selection of Evri as the courier. They attempted to deliver either side of me, then weent on radio silence for 2 days. Extremely poor experience with Evri - who's automated response system make you feel less than worthless to them. Upon final delivery, the box was damaged, 4 keystems were cracked, and I'm now left chasing Keychron for replacement keys. They responded well at first, but have now gone quiet.

M
Max Anslow

Keychron V3 QMK Custom Mechanical Keyboard

H
Harry Hawkins

Keychron V3 QMK Custom Mechanical Keyboard

D
Daniel White-Gonzalez
cool keyboard

huge upgrade from my old rk61 thank you guys

s
shajan sundaramoorthy

Keychron V3 QMK Custom Mechanical Keyboard

Keychron V3 Custom Mechanical Keyboard

Keychron V3

The V3 is a classic TKL (80%) layout custom keyboard with many premium features like QMK/VIA support, PBT keycaps, screw-in stabs, etc., which provides endless possibilities and a comfortable typing experience!

Keychron V3 Custom Mechanical Keyboard

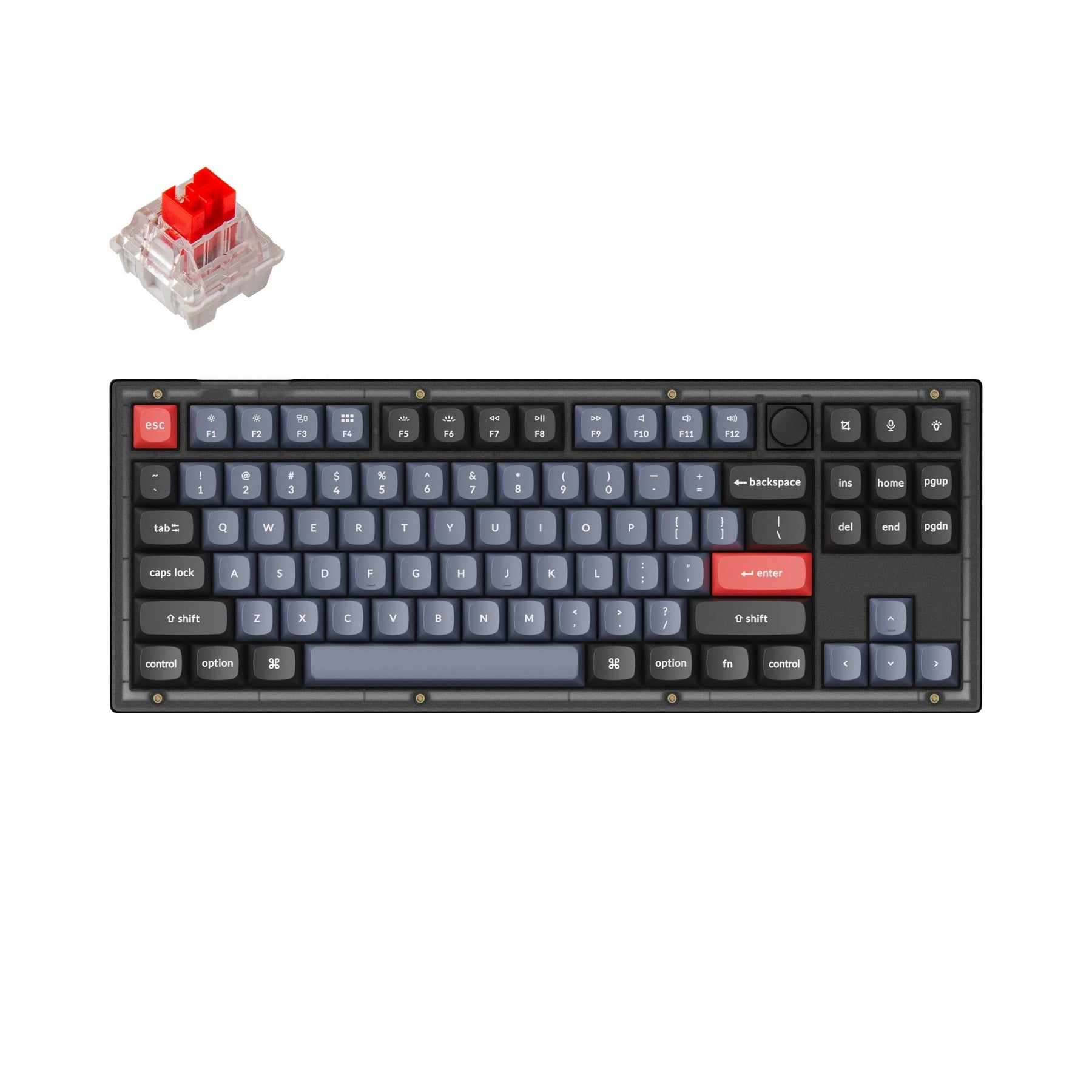

Frosted Black Version (Translucent)

Keychron V3 Custom Mechanical Keyboard

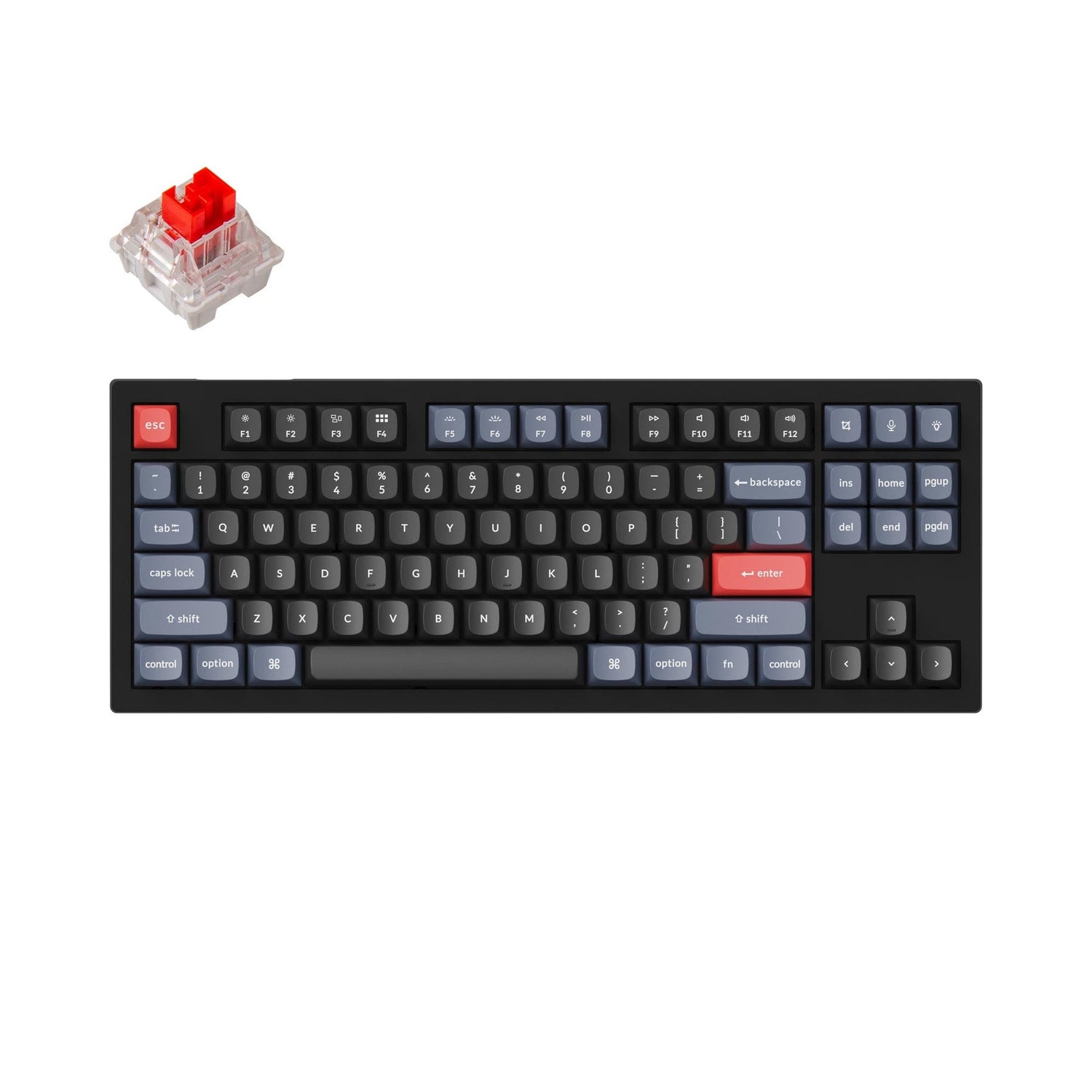

Carbon Black Version (Non-transparent)

Keychron V3 Custom Mechanical Keyboard
Customize Your V3

Choose the keycaps, switches and more accessories for your V3

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Keychron V3 Custom Mechanical Keyboard

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Keychron V3 Custom Mechanical Keyboard
Keychron V3 Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT Keychron V3 Custom Mechanical Keyboard Keycap
Keychron V3 Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program V3 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.

Program V3 with QMK & VIA

Get the V3 keymap working on VIA

Since the VIA code for the V3 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V3 keymap.

To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V3 keymap working on VIA.

V3 Knob Version Keymap JSON Files

V3 Non-Knob Version Keymap JSON Files

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

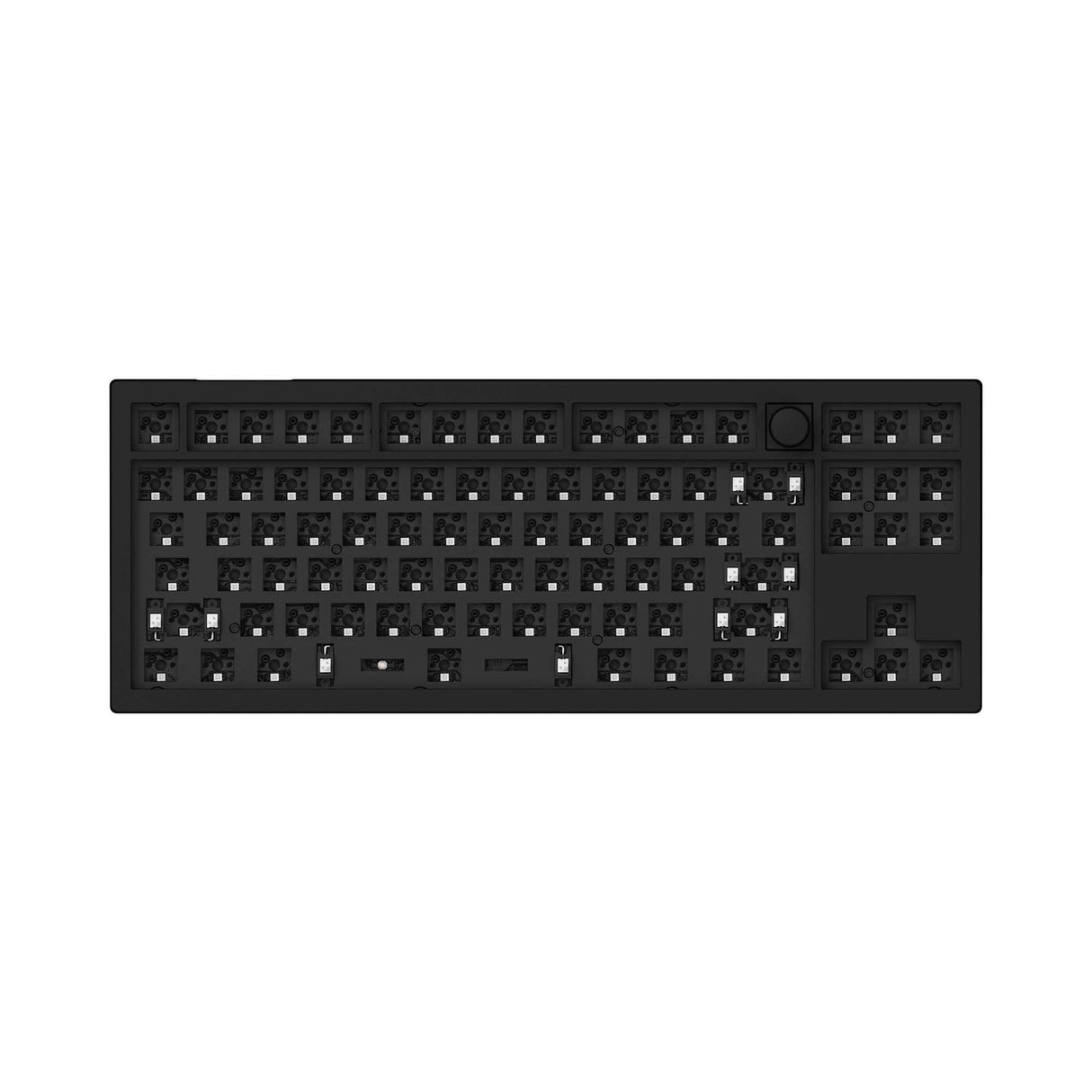

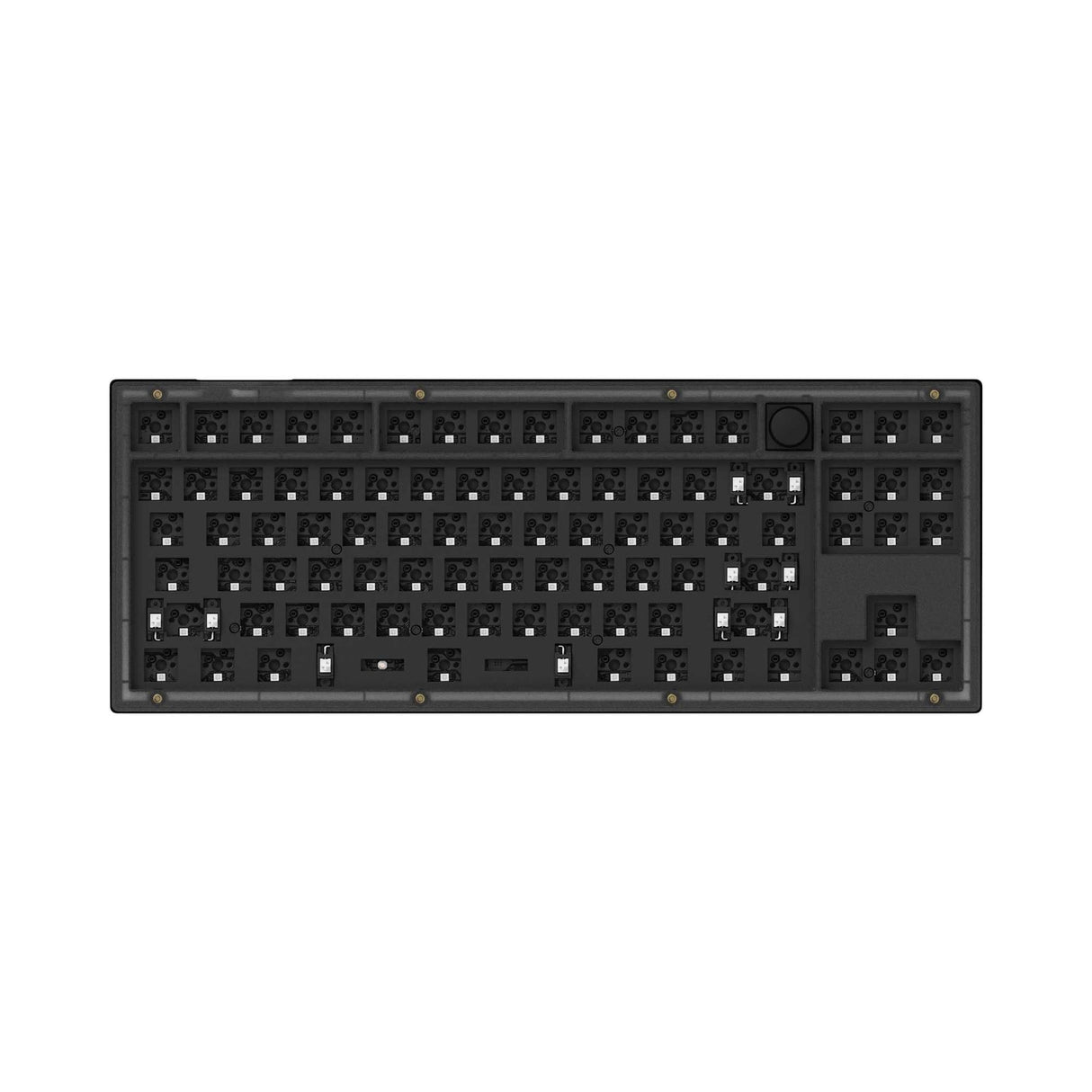

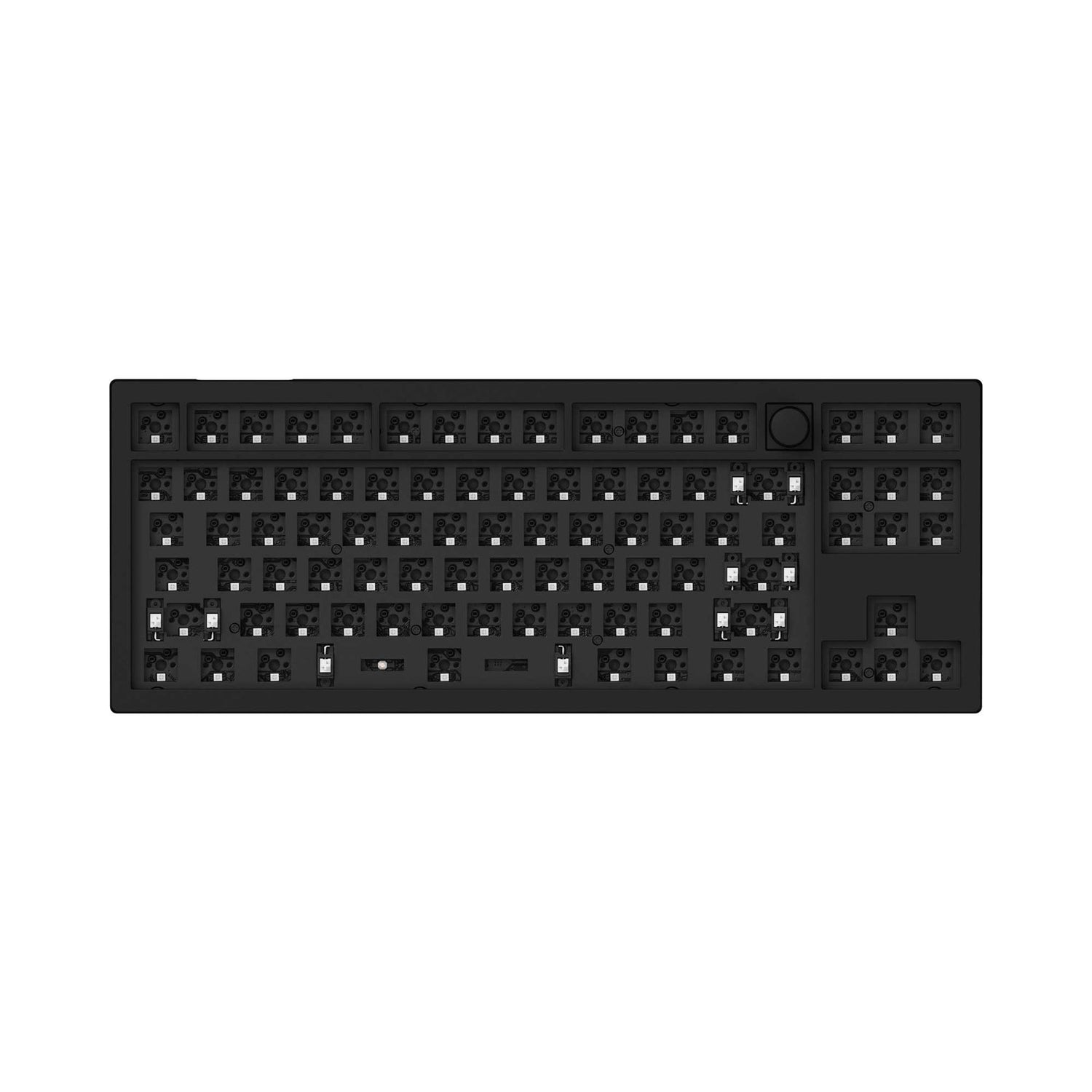

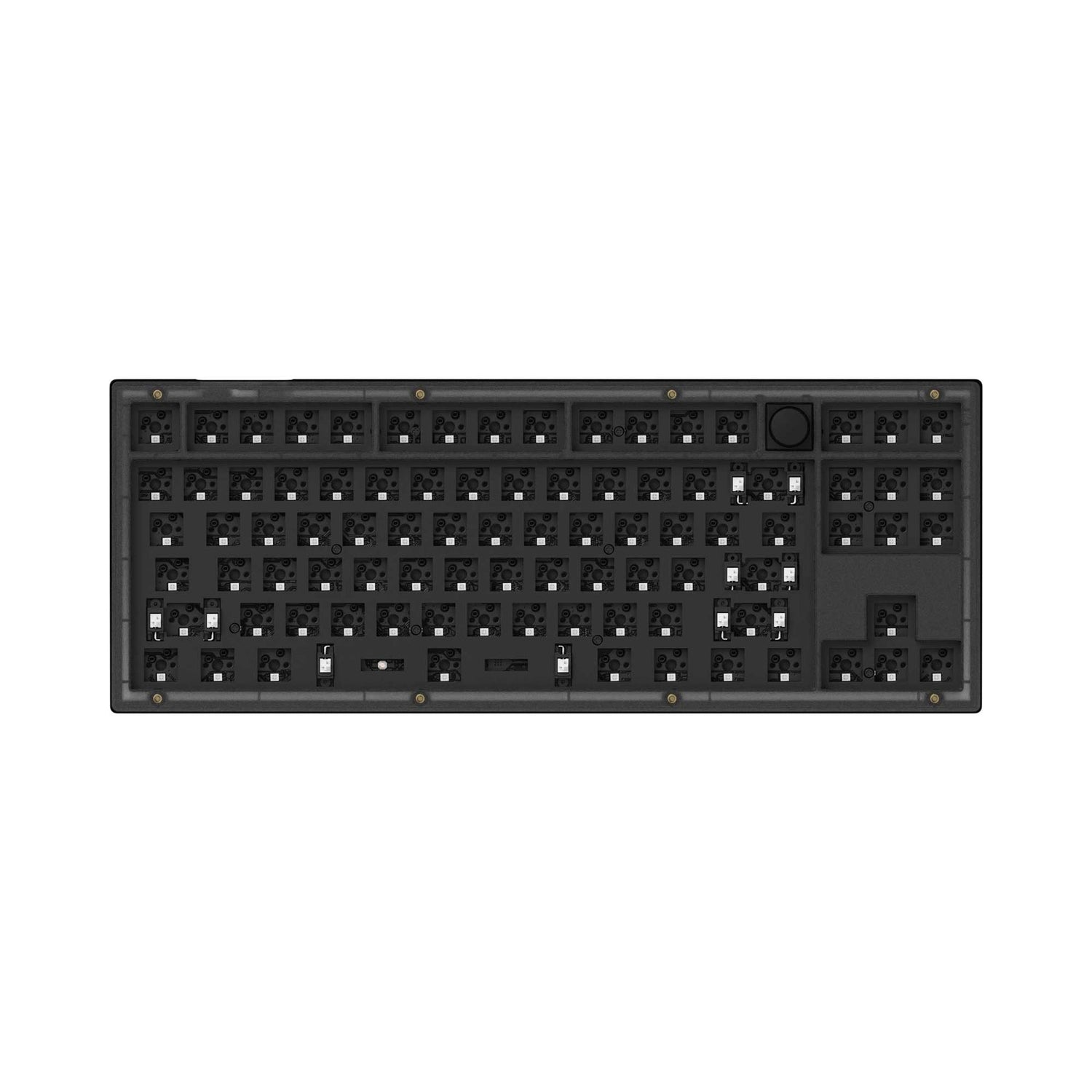

Barebone ANSI Layout Keychron V3 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron K Pro Switch Features
All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V3 also supports third-party screw-in PCB stabilizers.

Looking for ISO Layout?

The V3 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout.

What's in the box?

Keychron V3 Custom Mechanical Keyboard
Keychron V3 Custom Mechanical Keyboard

Specs

Width140.56 mm
Length366.70 mm
Front Height19.44 mm  (without keycaps)
Back Height26.83 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 8.5° / 11°
Weight1120 ± 10g (Fully assembled weight)
Body MaterialABS Plastic
PlateSteel
Polling Rate1000Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesKeychron K Pro (Fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Keychron V3 User Guide

Learn more about the Keychron V3 such as the V3 shortcuts, assembling the V3, factory reset, and more in the FAQ section.
