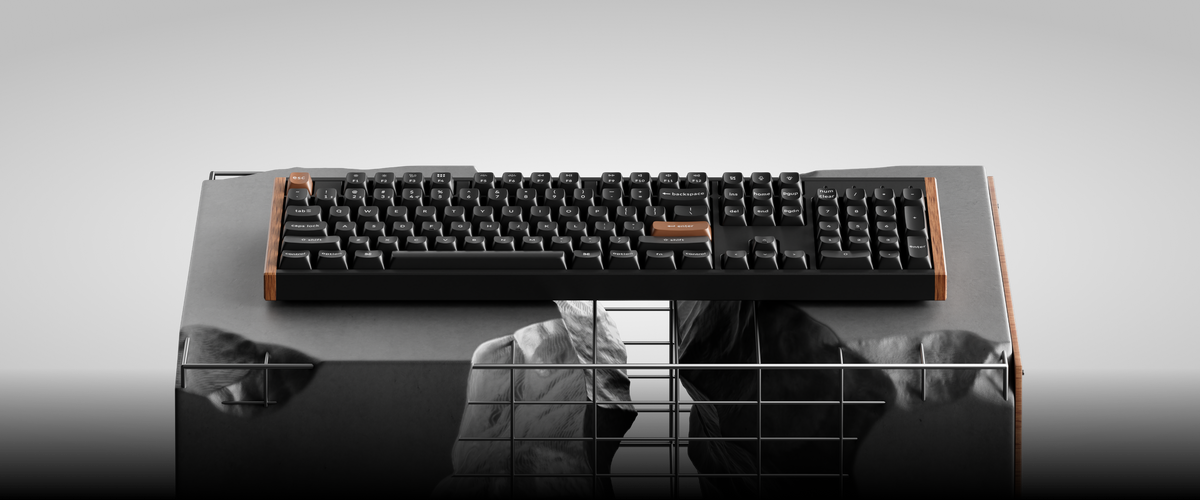

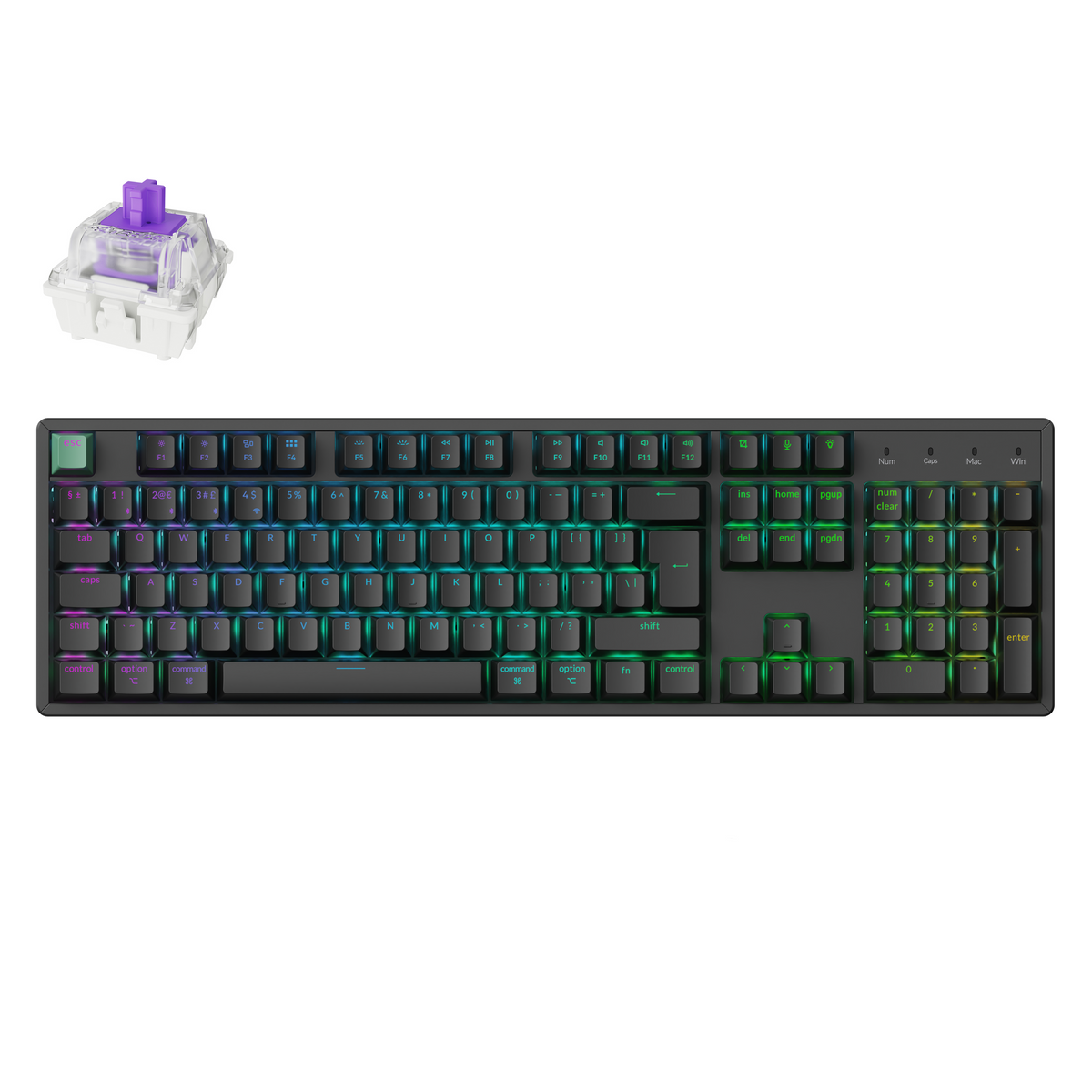

Keychron K10 HE Wireless Magnetic Switch Custom Keyboard
Keychron K10 HE Wireless Magnetic Switch Custom Keyboard - Standard Version / Black / Gateron Double-Rail Magnetic Nebula Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The K10 HE is available in different switch versions.
The Keychron Ultra-fast Lime version supports only Keychron Ultra-fast Lime Magnetic Switches.
The Gateron Double-Rail version supports only Gateron Double-Rail Magnetic Switches.
Other magnetic switches (e.g., Gateron Magnetic Jade or KS-20) are not supported.
KEYCHRON K10 HE

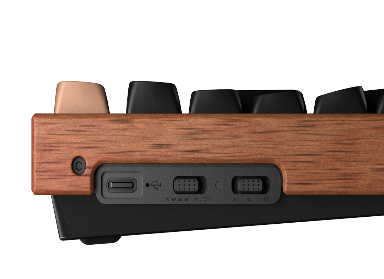

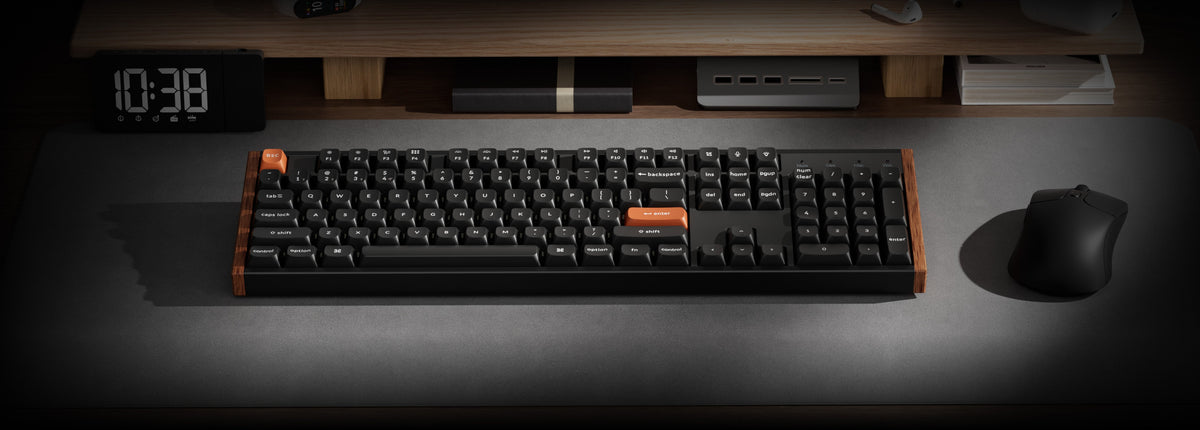

Transform your gaming and typing experience with the Keychron K10 HE. Combining classic mechanical feel with cutting-edge magnetic technology, it offers exceptional performance in a sleek design—enhanced by elegant natural wood accents.
COLOR VERSIONS

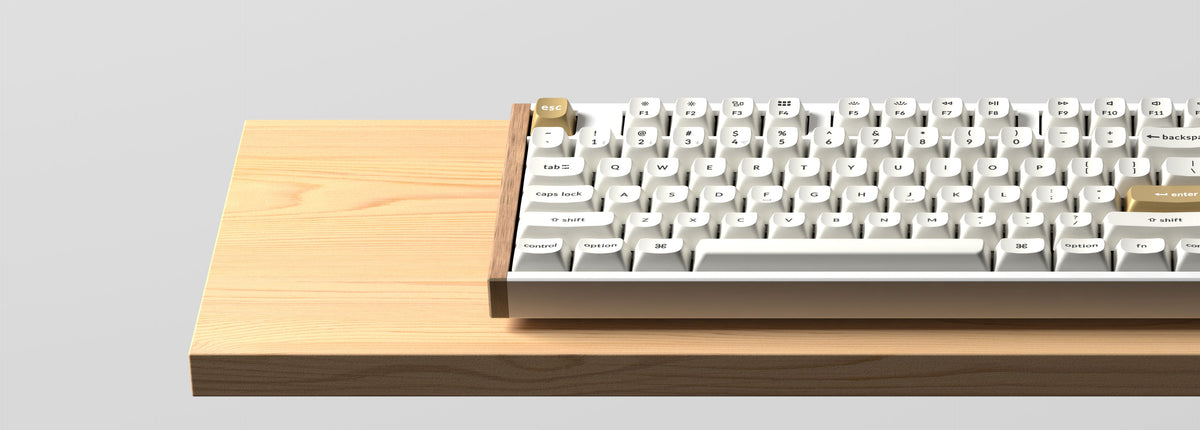

Special Edition ＆ Standard Version

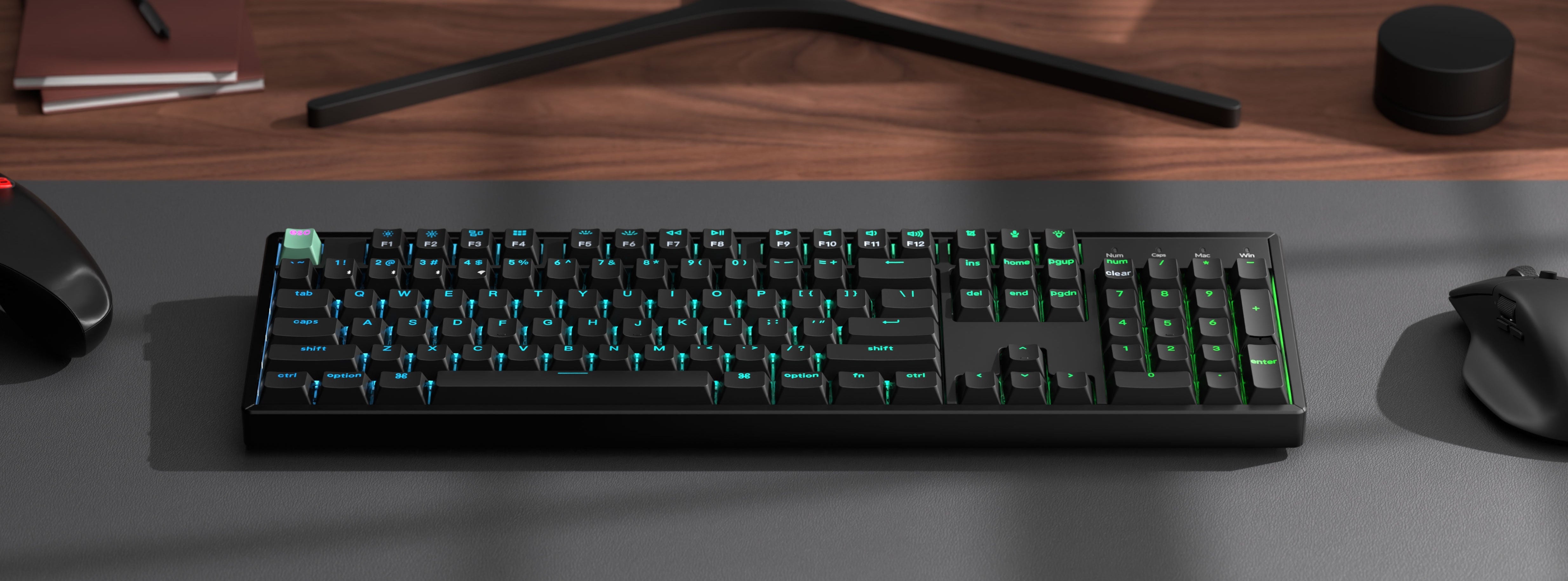

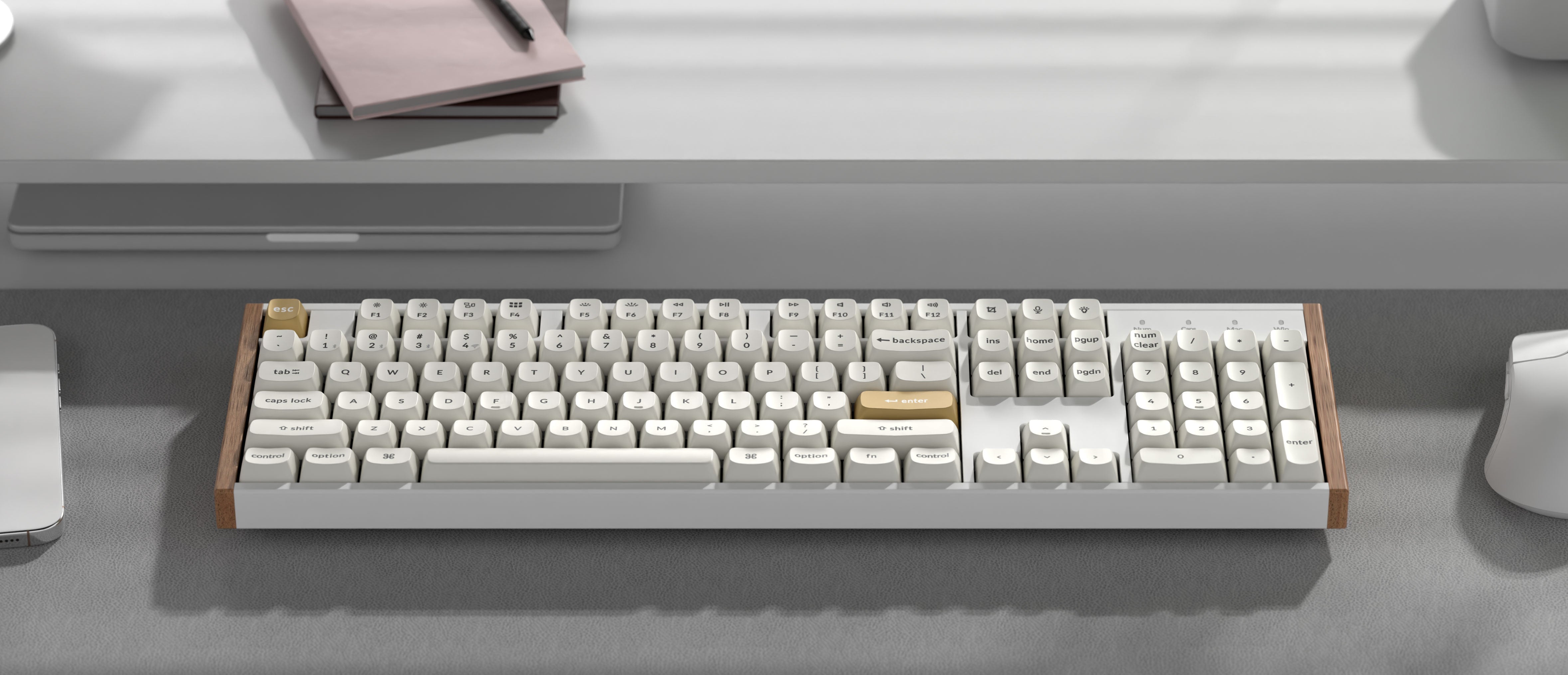

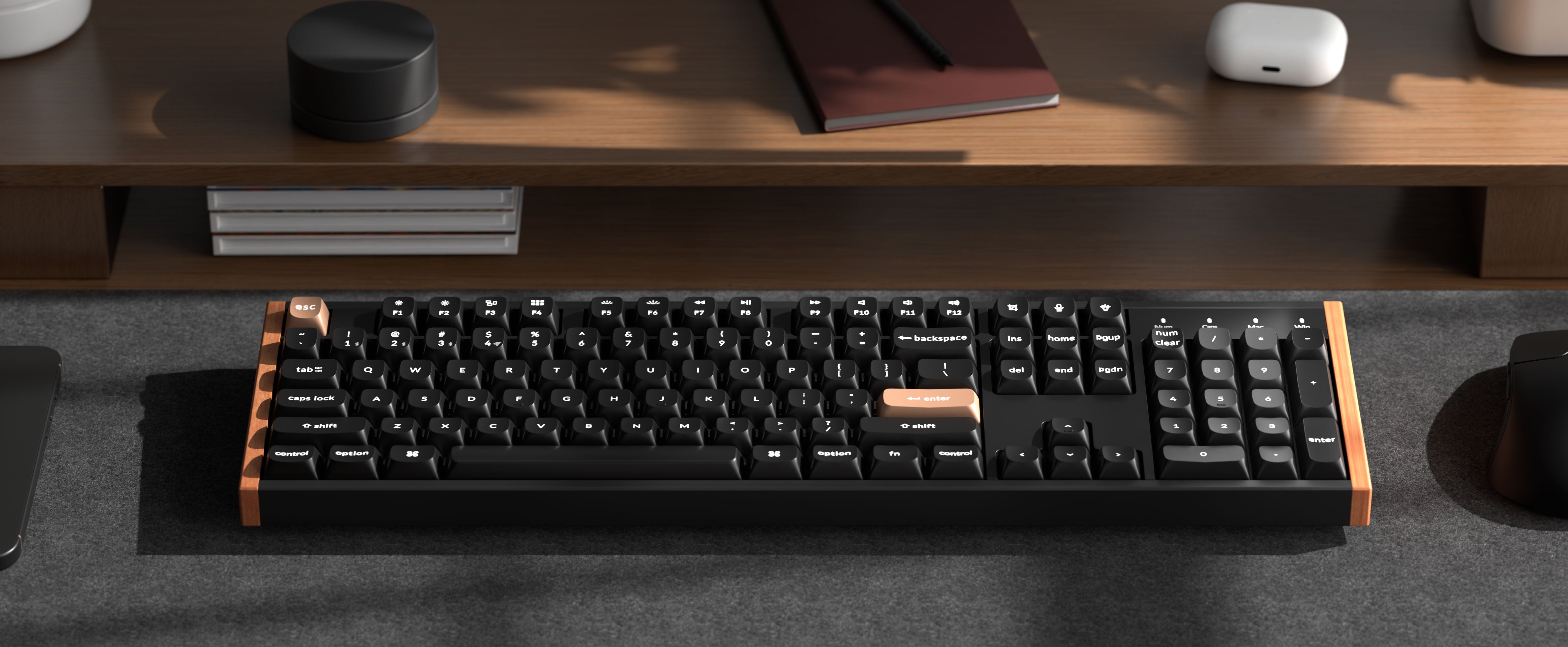

The Special Edition offers two colorways, both with natural wood accents—light wood for the white version and dark wood for the black version. Both editions feature OSA profile double-shot PBT keycaps and aluminum with wooden frames. The Standard Version features Cherry profile double-shot shine-through PBT keycaps and aluminum frames.
magnetic switch

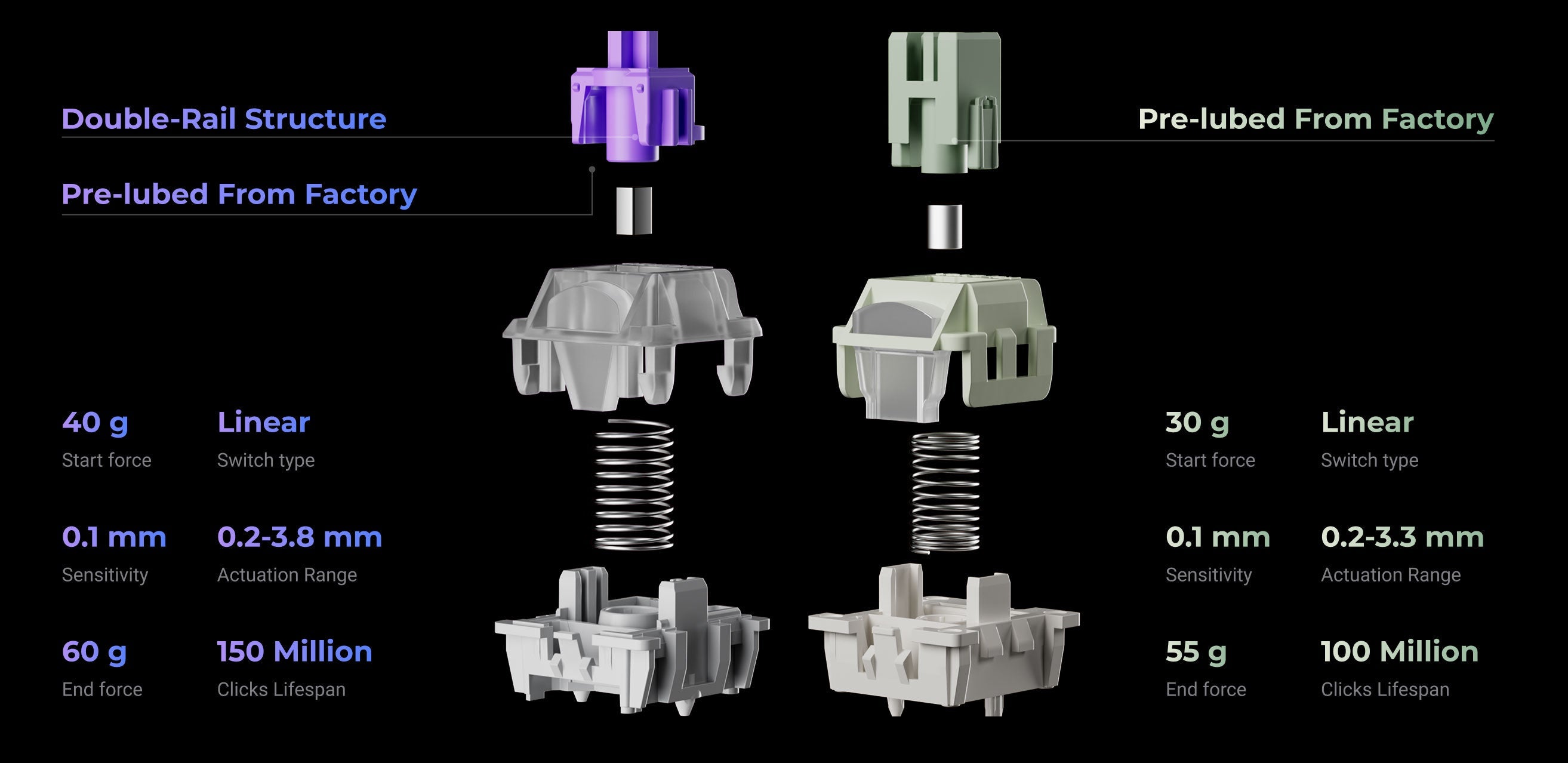

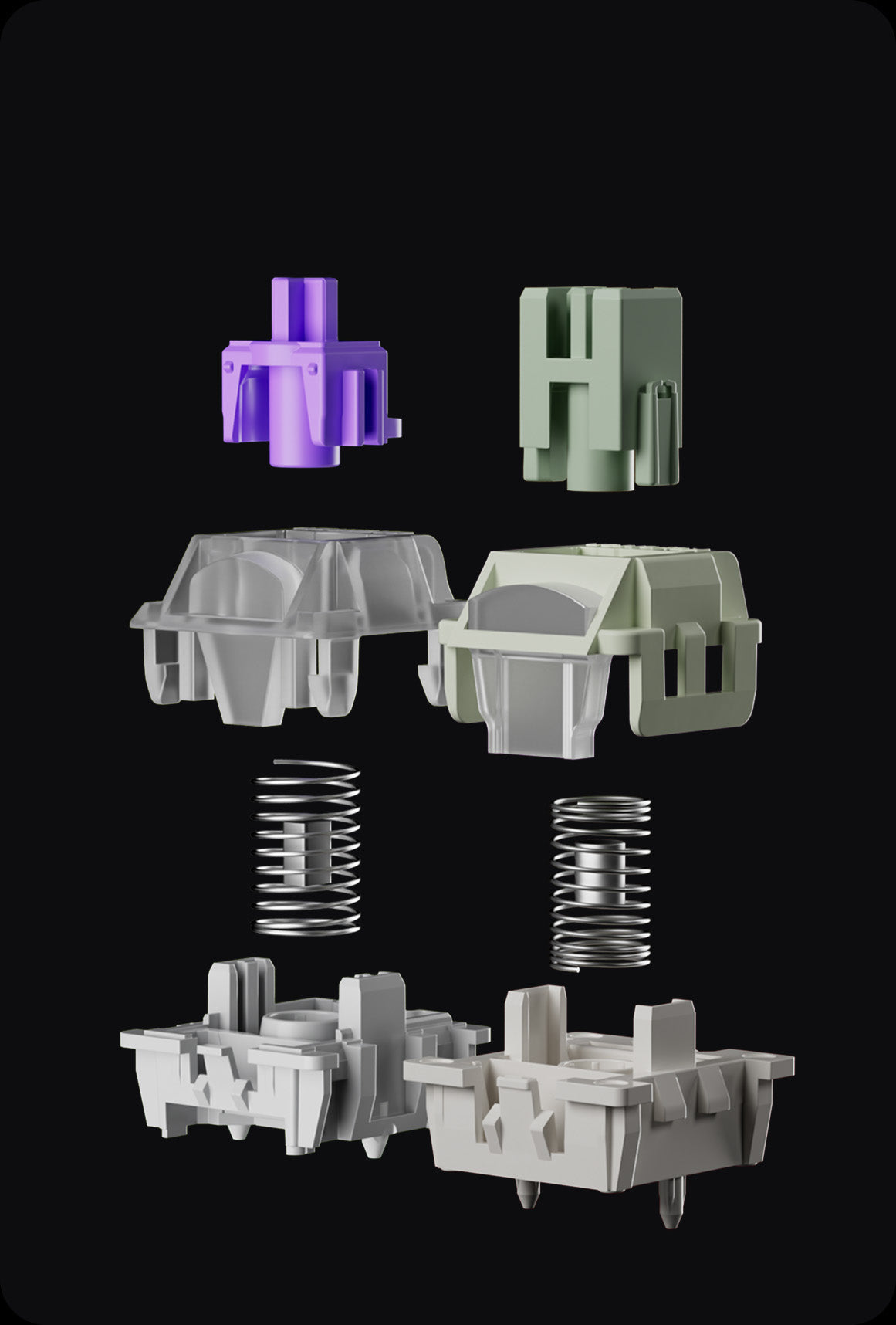

Keychron Ultra-fast Lime & Gateron Double-Rail
The Keychron K10 HE now comes in two magnetic switch versions. Both offer ultra-fast response, stable keystrokes, and precise adjustable actuation. For a softer, more satisfying typing feel, choose the Keychron Ultra-Fast Lime version. Its POM-based, factory pre-lubed switches deliver a smooth feel with a deep, thocky sound. For a smoother and more stable magnetic switch structure, choose the Gateron Double-Rail version. *The Gateron Double-Rail version supports only Gateron Double-Rail Magnetic Switches. *The Keychron Ultra-fast Lime version supports only Keychron Ultra-fast Lime Magnetic Switches.
Magnetic Switch

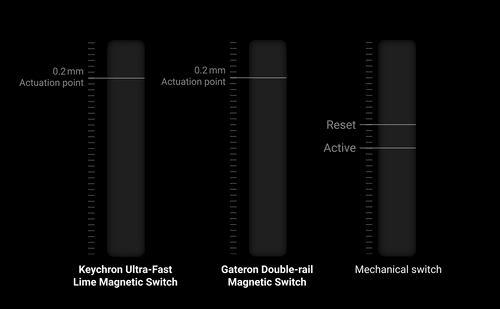

Adjustable Actuation Point
Customize each key with precision, with tailored actuation ranges depending on the switch type. The Gateron Double-Rail magnetic switch supports adjustable actuation from 0.2 to 3.8 mm in 0.1 mm increments. The Keychron Ultra-fast Lime magnetic switch supports adjustable actuation from 0.2 to 3.3 mm with 0.1 mm sensitivity adjustment, delivering fast and precise trigger control for both gaming and typing. Set shallow keypresses for instant actions and deeper ones for deliberate engagement—helping reduce accidental inputs while improving responsiveness and control.
Magnetic Switch

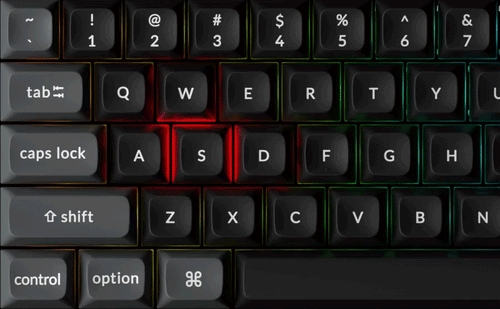

Last Key Priority (LKP) & Snap Click
LKP allows seamless directional changes by prioritizing the last key pressed, ensuring smoother gameplay in titles like Valorant. With Snap Click, deeper keypresses take precedence when two keys are hit at once, automatically resetting shallower presses. *They are disabled by default, but you can easily enable them in our Launcher web app when needed.
Magnetic Switch
One Key. Multiple Actions

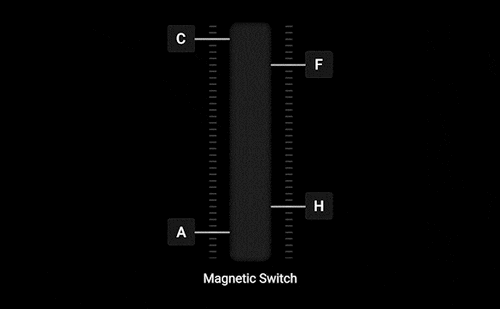

Thanks to Dynamic Keystrokes (DKS), you can now assign up to 4 distinct actions per key based on press depth. A light press moves your character, a deeper press makes them run, and releasing the key enables additional commands. This layered control lets you execute multiple moves with ease.
Magnetic Switch

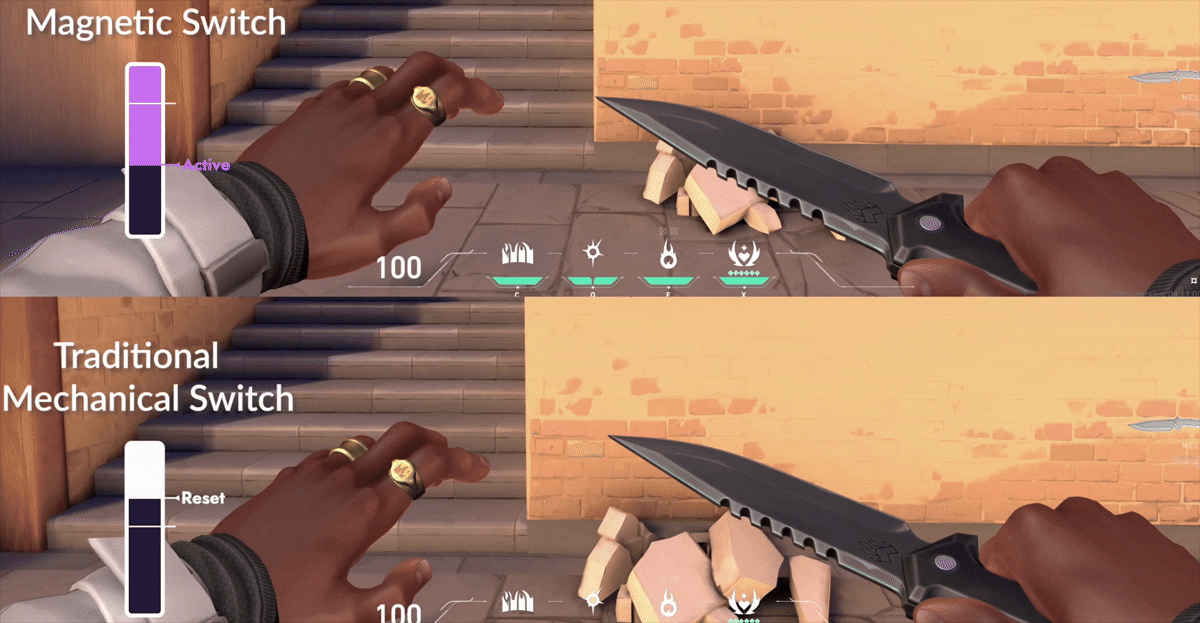

Dynamic Rapid Trigger

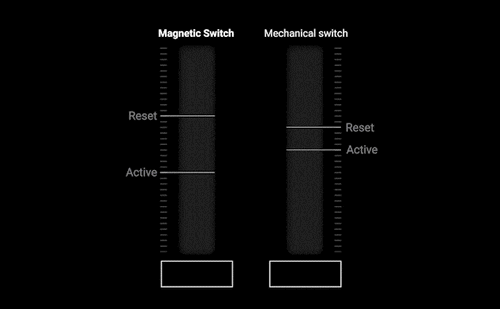

Activate or deactivate keys based on how far they travel, not predefined points. This means immediate key reactions—press to activate, release to reset—allowing for faster, more precise keystrokes. In rapid gameplay, this translates to executing complex actions in real-time without delay, giving you a serious advantage during fast-paced sequences.
Magnetic Switch

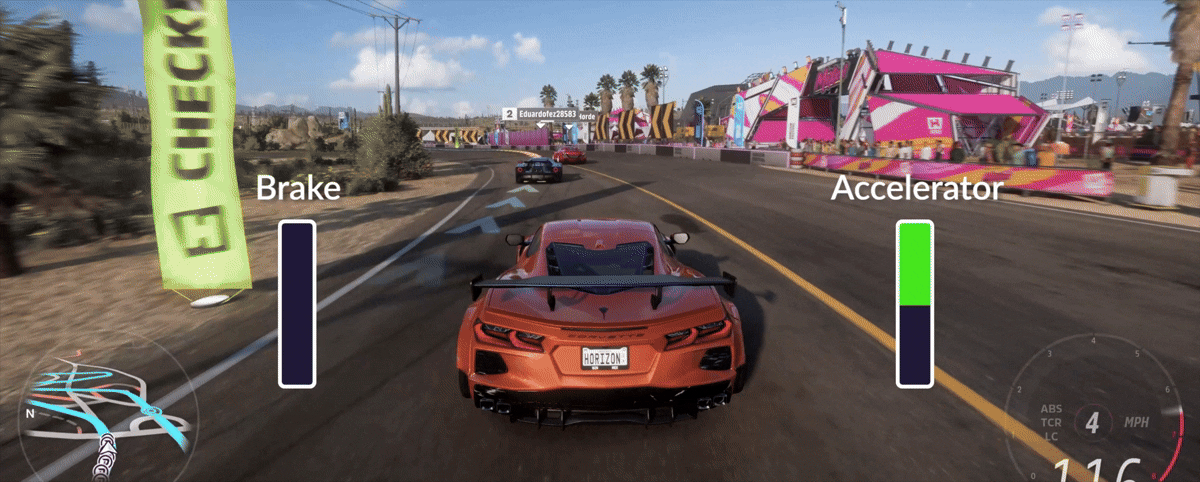

Analog Mode
Experience the power of Analog Mode on your K10 HE, bringing game controller-like precision to your keyboard. This mode enables variable inputs instead of the usual on/off signals, letting you achieve more fluid and dynamic control. With each keypress, the K10 HE detects how far you press, translating it into different speeds and intensities. Enjoy nuanced control and heightened responsiveness in racing games, sports simulations, and more.

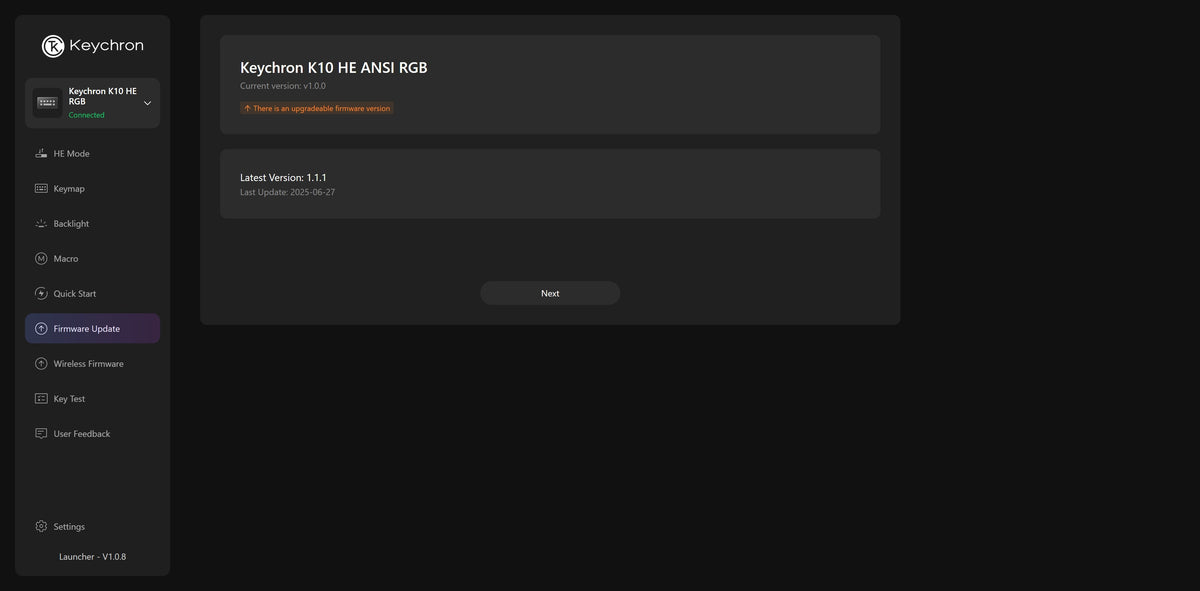

LAUNCHER WEB APP

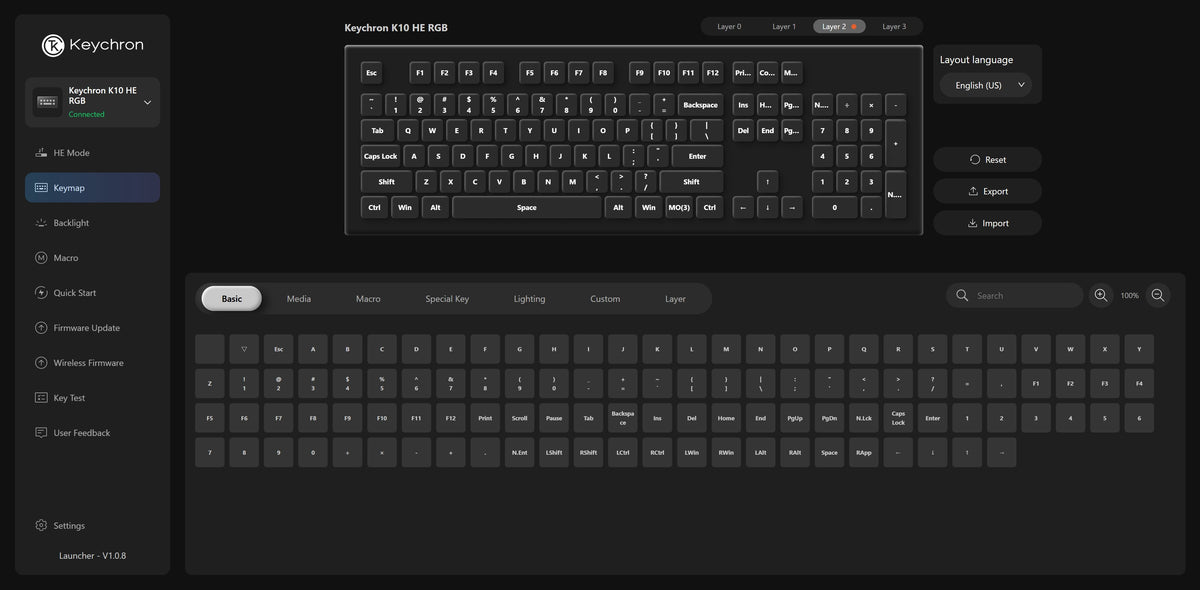

Program with QMK & Launcher.

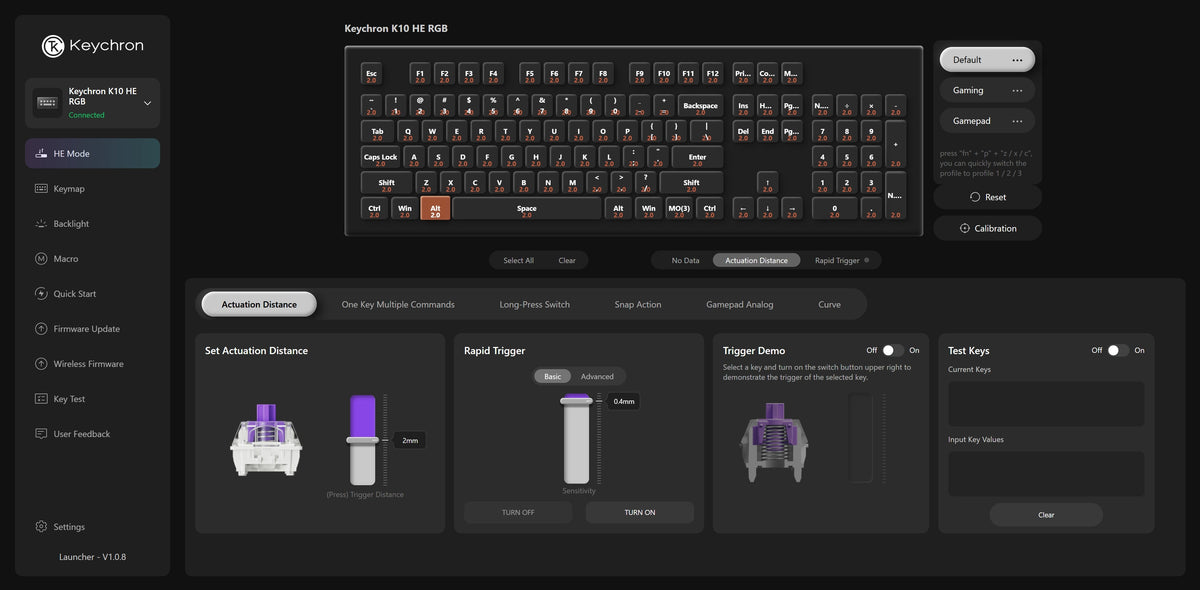

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
PRECISION

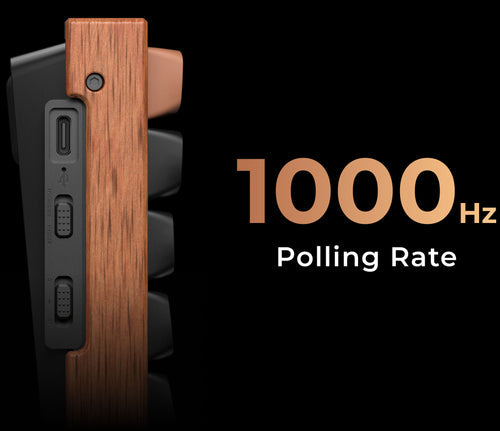

2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the K10 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the K10 HE via Bluetooth 5.2 to three devices.

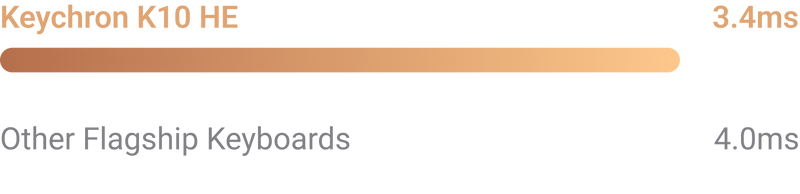

Industry-leading Latency Performance
The K10 HE keyboard delivers exceptional latency performance within its class, outperforming other flagship keyboards in the industry.
*The performance data is sourced from the third-party testing website RTINGS .
POWERFUL ARM CORE
An Epic Core Inside The Keyboard

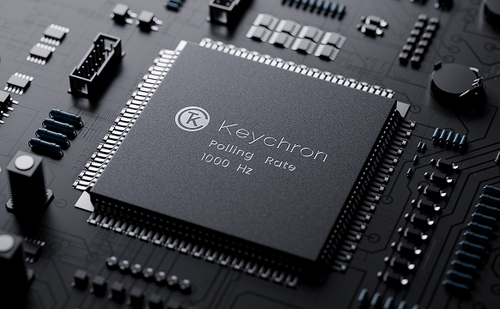

Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.
Customise
Satisfying Keyboard Acoustics

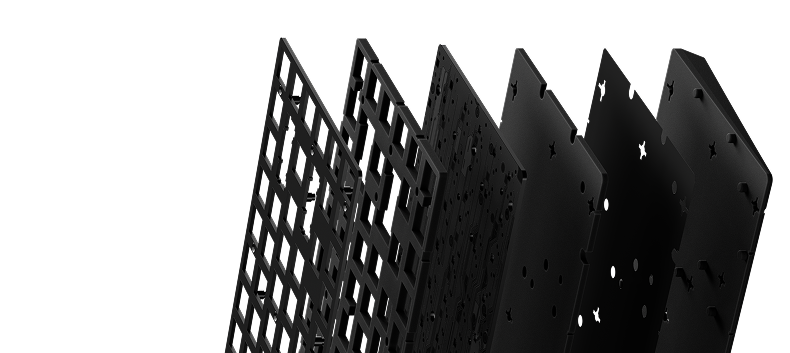

With pre-lubed switches, 3.5 mm thick EVA acoustic foam, EPDM foam, and a silicone pad inside the keyboard, the Keychron K10 HE delivers an exceptionally satisfying, soft, and thocky typing sound, enhancing your typing experience.

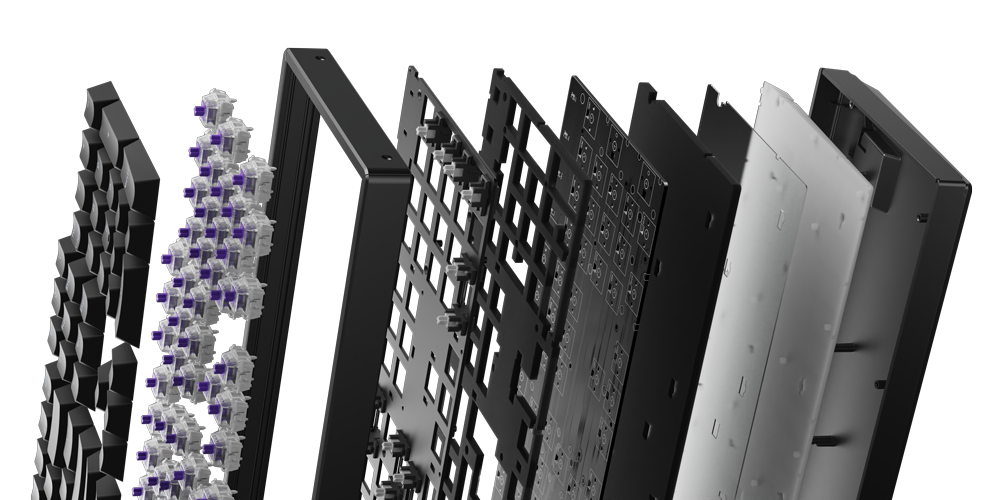

Keycap
Double-shot PBT keycaps of the K1O HE provide excellent oil resistance and prevent the legends from fading out.
Switch
Powered by TMR technology, it allows you to fully personalize the actuation point through contactless sensing.
Top Case
A solid, premium aluminum body for a quieter, vibration-free typing experience.
Plate
The plate in a keyboard secures switches in place, provides structural support, and influences typing feel and sound.
Sound Absorbing Foam
By absorbing echo and noise, the sound absorbing foam produces a cleaner typing sound.
PCB
The circuit board that registers keystrokes; hot-swappable versions allow easy switch changes.
EPDM Foam
The soft foam that can help reduce vibration and noise and give a cushioned typing feel.
Bottom Case PET Film
The PET Film insulates from shorts, shields internals from dust/scratches, and provides minor dampening.
Silicone Acoustic Pad
Premium acoustic foams elevate the typing experience, making every tap delightful.
Bottom CASE
A solid, premium aluminum body for a quieter, vibration-free typing experience.
CUSTOMIZE
Suitable for All Devices

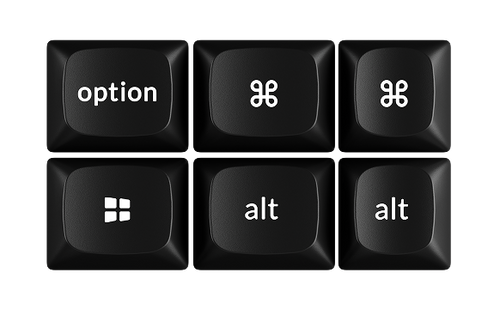

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the K10 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
KEYCAP

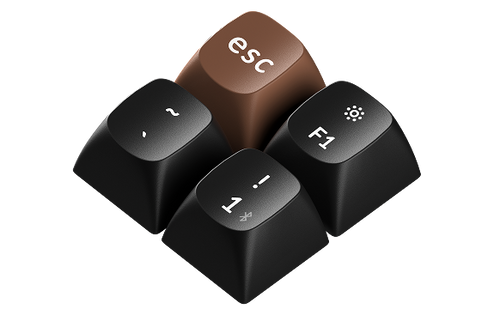

Double-shot PBT Keycaps
The PBT keycaps (shine-through cherry profile on the standard version, non-shine-through OSA profile for the special editions) will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
CUSTOMIZE

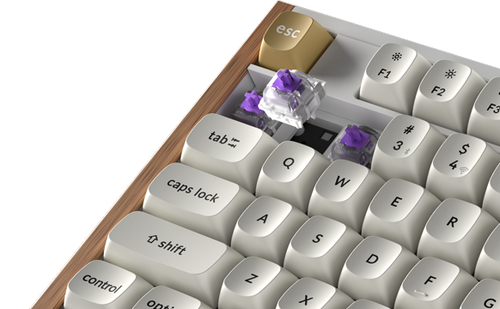

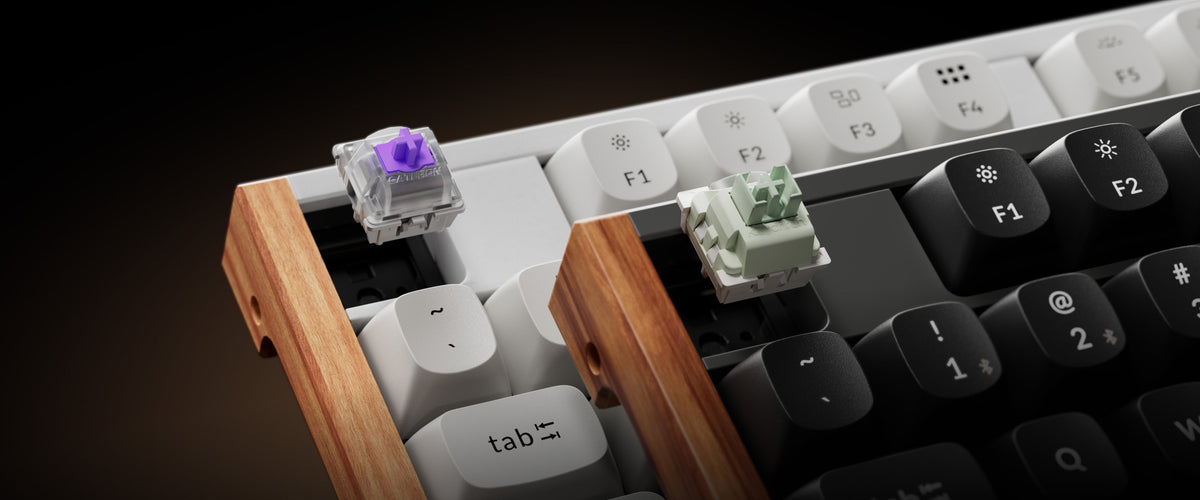

HOT-SWAPPABLE

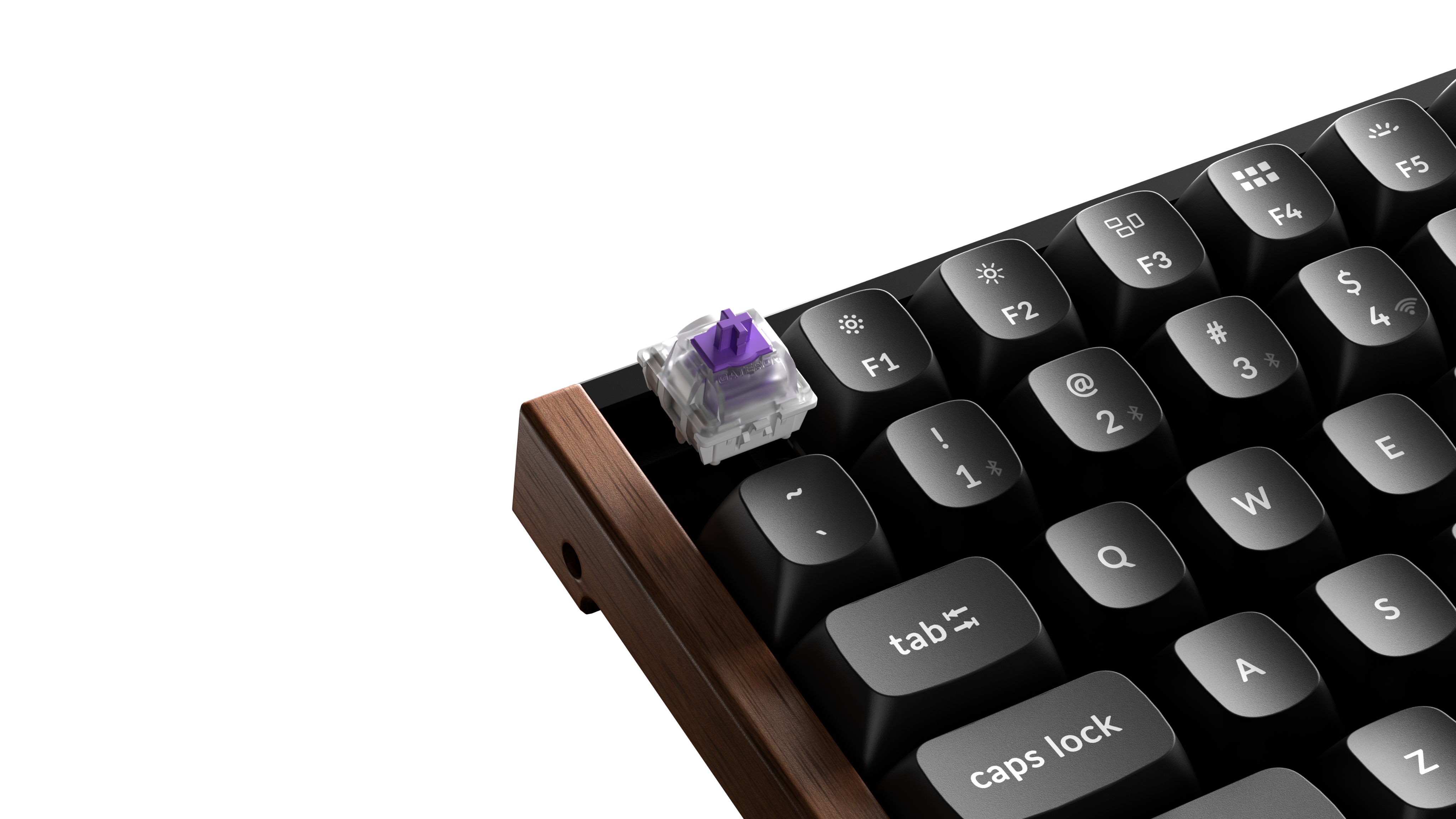

Unlike mechanical switches, which depend on physical contact, magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible magnetic switches. *The Gateron Double-Rail version supports only Gateron Double-Rail Magnetic Switches. *The Keychron Ultra-fast Lime version supports only Keychron Ultra-fast Lime Magnetic Switches.
backlight

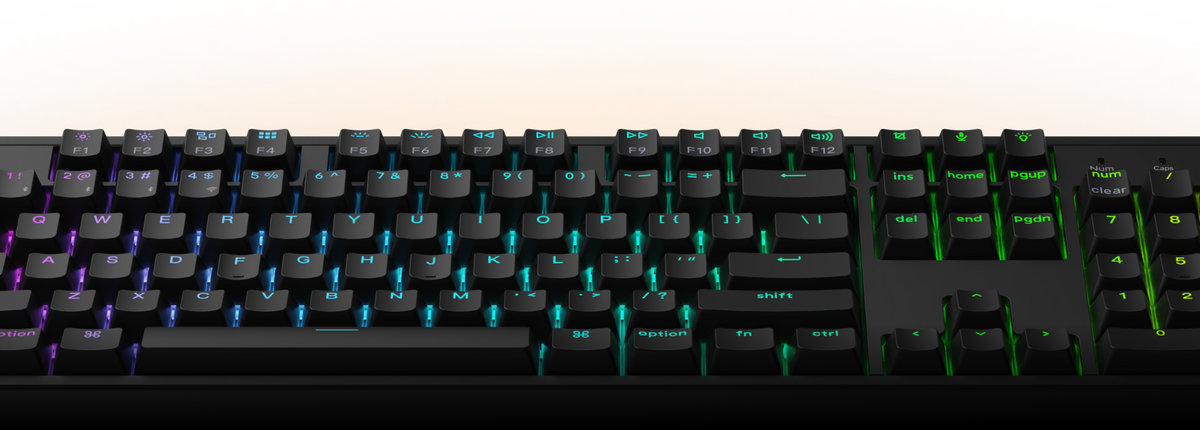

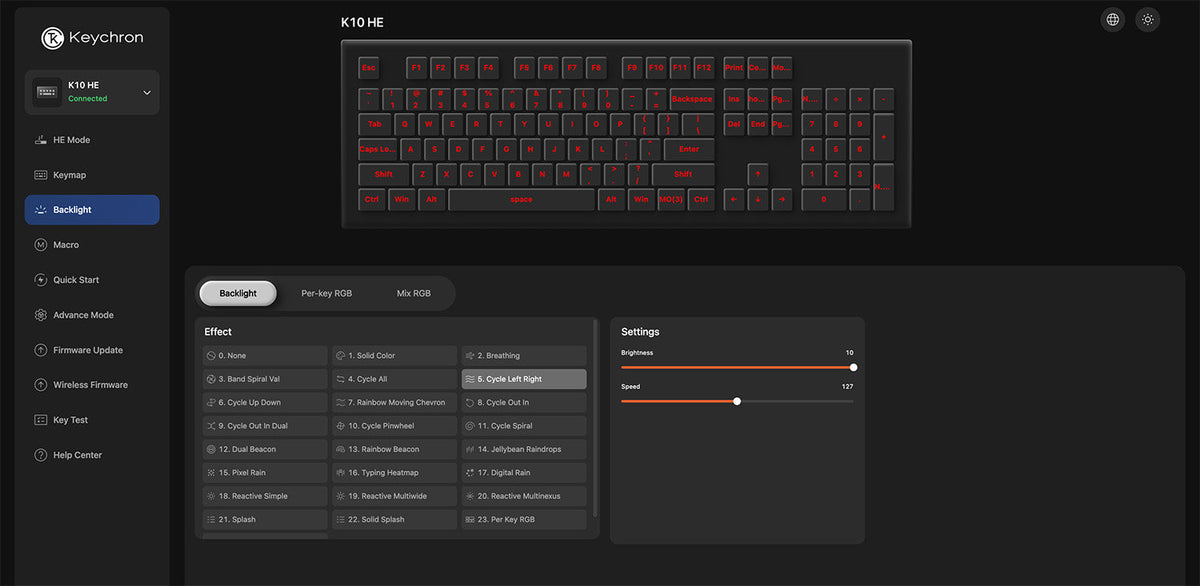

Unlock Dynamic Backlit Control
Go beyond standard presets with 22+ RGB backlight settings — including a static white option. Our advanced lighting engine includes two powerful features to fuel your creativity: Per-key RGB and Mix RGB . You can further fine-tune and remap keys with ease, crafting your unique style with vivid, dynamic RGB control.
rgb backlight
rgb backlight
With Per-key RGB, every single key is a digital brushstroke. This feature lets you individually customize the color of each key, transforming your keyboard into a vibrant canvas. Learn how to set Per-key RGB on Launcher
RGB BACKLIGHT

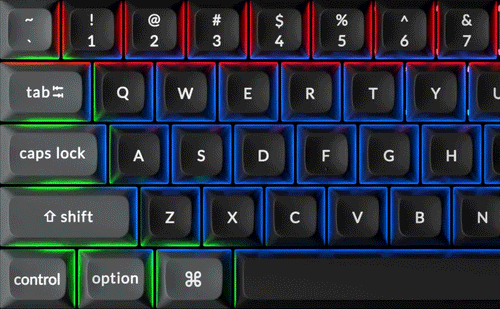

MIX RGB
With Mix RGB, you can split your keyboard into two custom lighting zones, each with unique effects. Create creative, high-contrast combinations to make your entire setup pop with vibrant style. Learn how to set Per-key RGB on Launcher
Guide

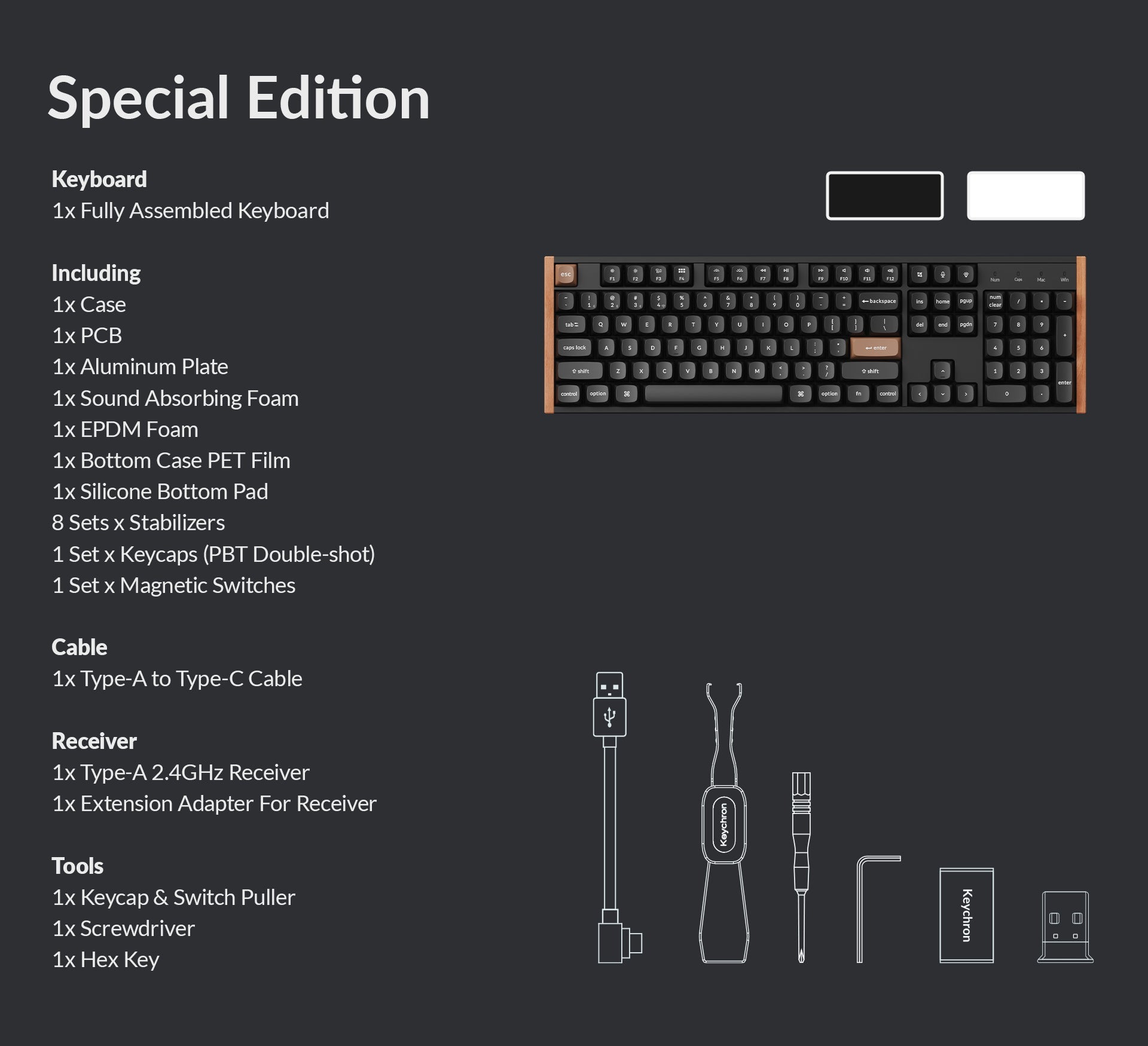

What's In The Box?
Guide
